Multilayer PCB Board 4 Layer 1.6mm Thick White Solder Mask

Name: Multilayer PCB Board 4 Layer 1.6mm Thick White Solder Mask
Brand: all-electronics-online.com
SKU: 827519985
Availability: InStock
Rating: 4.5 (33 reviews)

Price:	US $ 2.16/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-15177-R1.1
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Application:	Security Equipment
Processing Technology:	HASL Lf
Base Material:	Copper Clad Laminate
Brand:	Bicheng

Product Description

4 Layer 1.6mm Multilayer PCB Board White Solder Mask 371

Commodity Introduction

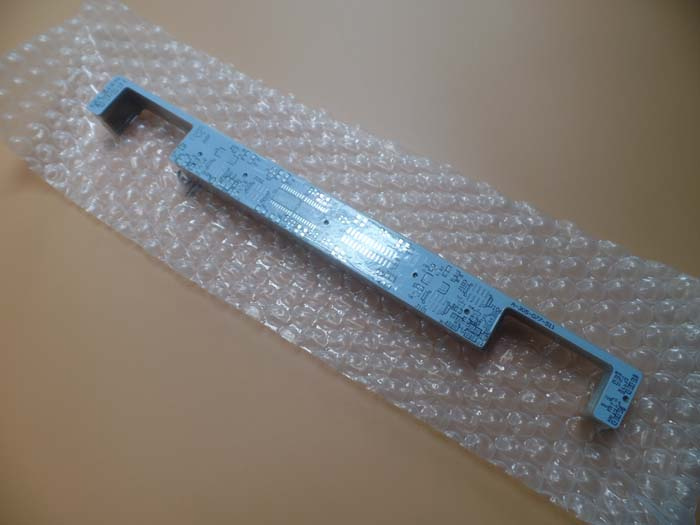

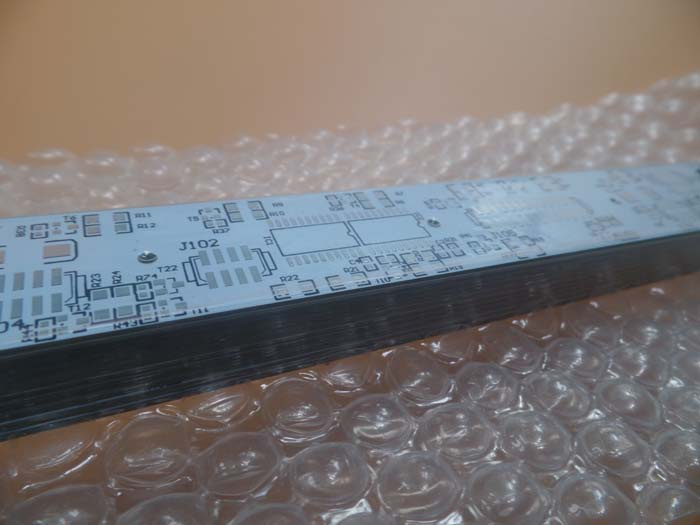

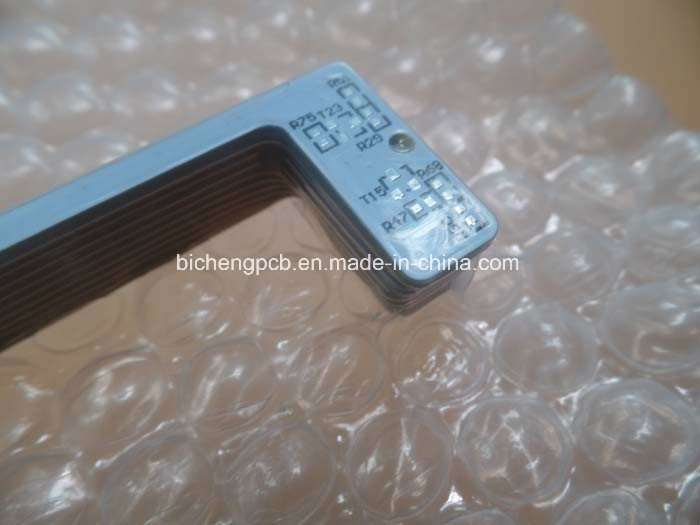

This is a type of 4 layer 1.6mm PCB board for the application of Security Equipment with HASL pad finish. The base laminate is from ITEQ, White solder mask from Kuangshun and black silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 panel boards are packed separately.

Parameter & Data Sheet

Number of Layers	4
Board Type	Multilayer PCB
Board Thickness	1.6mm +/-0.16
Board Material	FR-4
Board Material Supplier	ITEQ
Tg Value of Board Material	135ºC

PTH Cu thickness	≥20 um (See hole wall details)
Inner Iayer Cu thicknes	35 um (1oz)
Surface Cu thickness	35 um (1oz)

Solder Mask Type and Model No.	LPSM, KAM-H8100
Solder Mask Supplier	KUANGSHUN
Solder Mask Colour	White
Number of Solder Masks	2
Thickness of Solder Mask	14 um

	KAM-388BK/KSM28
Supplier of Silkscreen	KUANGSHUN
Color of Silkscreen	Black
Number of Silkscreen	2

Mininum Trace (mil)	3 mil
Minimum Gap(mil)	8 mil

Surface Finish	HASL Lead free
RoHS Required	Yes
Warpage	0.25%

Thermal Shock Test	Pass, 288±5ºC,10 seconds, 3 cycles. No delamination, no blistering.
Solderablity Test	Pass, 255±5ºC,5 seconds Wetting Area Least 95%
Function	100% Pass electrical test
Workmanship	Compliance with IPC-A-600H & IPC-6012C Class 2

Microsection Hole Wall (um)

Hole Wall Cu Thickness			≥20 um	Hole Wall Cu Roughness			≤25.4 um
NO.	A	B	C	D	E	F	AVE
1	25.617	24.417	24.477	26.117	25.397	25.027	25.175
2	24.070	22.870	22.930	24.570	23.850	23.480	23.628
3	24.891	23.691	23.751	25.391	24.671	24.301	24.449

Outline dimension Unit: mm

NO.	Required Dimension (toerance)		Actual dimension
1	286.00	±0.15	286.10	286.00	286.07	285.99
2	25.00	±0.15	24.94	24.96	24.91	25.02

Hole Size and Slot Dimension (mm)

NO.	Requerment Dimension (tolerance)		PTH/NPT	Actual dimension
1	2.350	±0.05	N	2.350	2.325	2.375	2.350

Green PCB
Human beings have only one earth. Caring for the entire ecological environment and our lives are closely related. Fresh work environment and sewage recycling are our responsibility.

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
