Multilayer PCB Board 6 Layer with Nanya Solder Mask
| Price: |
US $ 0.64/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-11288-V2.1 |
| Solder Mask Color: |
Green |
| Copper Thick: |
1 Oz |
| Surface Finish: |
HASL Lead Free |
| Board Thick: |
1.6mm |
| Mininum Trace (Mil): |
10 Mil |
| Minimum Gap(Mil): |
5.7 Mil |
| Legend Color: |
White |
| Warpage : |
0.23% |
| RoHS Required: |
Yes |
| Function: |
100% Pass Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

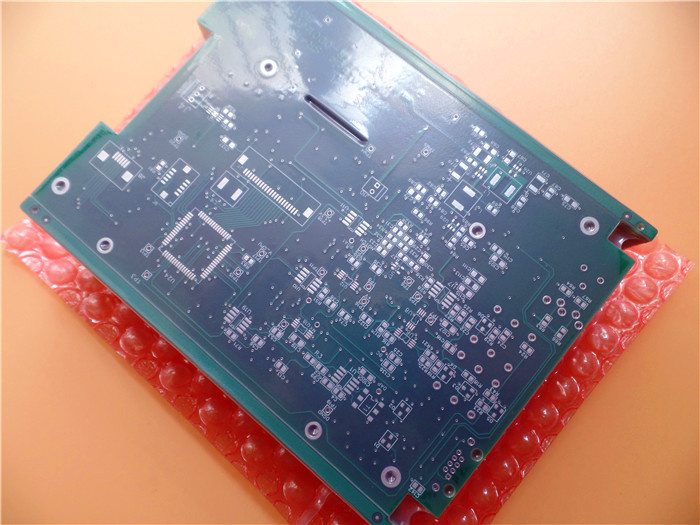

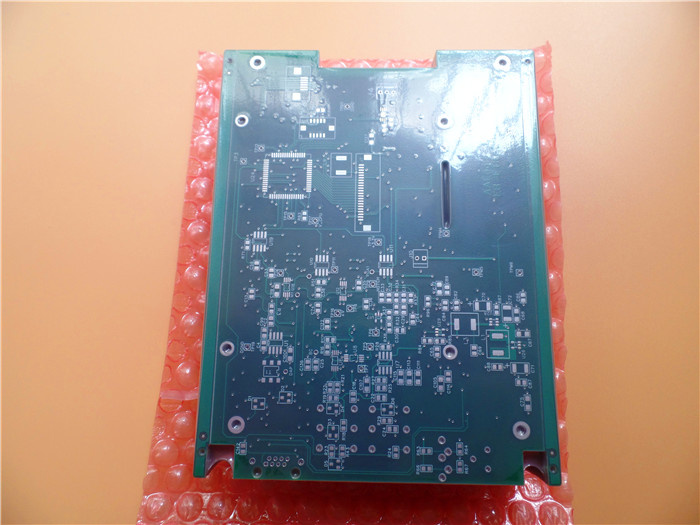

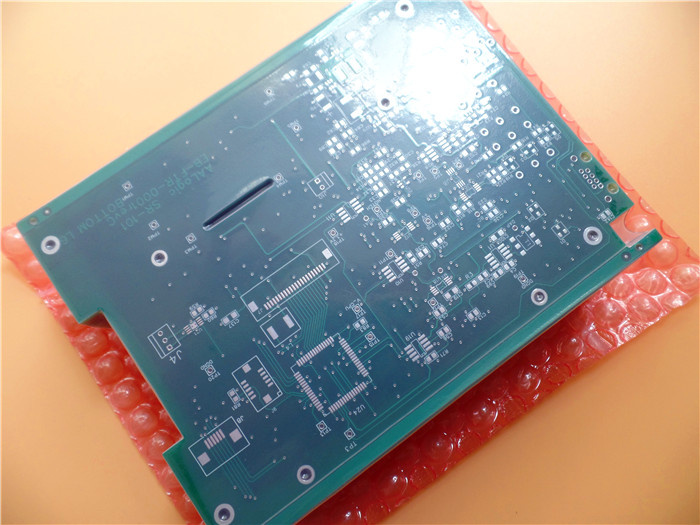

Multilayer PCB Board 6 Layer 1.6mm thick with Nanya green Solder Mask
Commodity Introduction
This is a type of 6 layer Multilayer PCB board at 1.6mm thick for the application of Wireless Hdmi
Transmitter. The base laminate is from Shengyi. Solder mask from Nanya and Silkscreen from
Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 panel boards
are packed separately.
Parameter & Data Sheet| Number of Layers | 6 |
| Board Type | Multilayer PCB |
| Board Thickness | 1.64mm |
| Board Material | FR-4 |
| Board Material Supplier | Shengyi |
| Tg Value of Board Material | 135ºC |
| |
| PTH Cu thickness | ≥20 um (See hole wall details) |
| Inner Iayer Cu thicknes | 35 um (1oz) |
| Surface Cu thickness | 35 um (1oz) |
| |
| Solder Mask Type and Model No. | LPSM, LP-4G/G-05 |
| Solder Mask Supplier | NANYA |
| Solder Mask Colour | Green |
| Number of Solder Masks | 2 |
| Thickness of Solder Mask | 25.6 um |
| |
| Type of Silkscreen Ink | S-380W |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | Whie |
| Number of Silkscreen | 2 |
| |
| Mininum Trace (mil) | 10 mil |
| Minimum Gap(mil) | 5.7 mil |
| |
| Surface Finish | HASL Lead free |
| RoHS Required | Yes |
| Warpage | 0.23% |
| |
| Thermal Shock Test | Pass, 288±5ºC,10 seconds, 3 cycles.
No delamination, no blistering. |
| Solderablity Test | Pass, 255±5ºC,5 seconds Wetting Area Least 95% |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6012C Class 2 |
Microsection Hole Wall (um)| Hole Wall Cu Thickness | ≥20 um | Hole Wall Cu Roughness | ≤25.4 um |
| NO. | A | B | C | D | E | F | AVE |
| 1 | 25.031 | 23.831 | 23.891 | 25.531 | 24.811 | 24.441 | 24.589 |
| 2 | 26.323 | 25.123 | 25.183 | 26.823 | 26.103 | 25.733 | 25.882 |
| 3 | 25.483 | 24.283 | 24.343 | 25.983 | 25.263 | 24.893 | 25.042 |
Outline dimension Unit: mm| NO. | Required Dimension (toerance) | Actual dimension |
| 1 | 157.48 | ±0.15 | 157.49 | 157.47 | 157.49 | 157.47 |
| 2 | 120.49 | ±0.15 | 120.50 | 120.48 | 120.50 | 120.48 |
Hole Size and Slot Dimension (mm)| NO. | Requerment Dimension (tolerance) | PTH/NPT | Actual dimension |
| 1 | 0.812 | ±0.076 | Y | 0.812 | 0.787 | 0.837 | 0.812 |
| 2 | 0.889 | ±0.076 | Y | 0.889 | 0.864 | 0.914 | 0.889 |
| 3 | 1.143 | ±0.076 | Y | 1.143 | 1.118 | 1.168 | 1.143 |
| 4 | 2.311 | ±0.076 | Y | 2.311 | 2.286 | 2.336 | 2.311 |
| 5 | 2.616 | ±0.076 | Y | 2.616 | 2.591 | 2.641 | 2.616 |
| 6 | 3.048 | ±0.076 | Y | 3.048 | 3.023 | 3.073 | 3.048 |
| 7 | 0.500 | ±0.05 | N | 0.500 | 0.475 | 0.525 | 0.500 |
| 8 | 2.050 | ±0.05 | N | 2.050 | 2.025 | 2.075 | 2.050 |
| 9 | 1.016 | ±0.05 | N | 1.016 | 0.991 | 1.041 | 1.016 |
| 10 | 3.505 | ±0.05 | N | 3.505 | 3.480 | 3.530 | 3.505 |
