Multilayer PCB Board Fr-4 Tg135 Immersion Gold PWB
| Price: |
US $ 0.47/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1031R3.1 |
| Solder Mask Color: |
Red |
| Surface Finish: |
Immersion Gold |
| Final Copper Thick: |
1.5 Oz |
| Inner Copper Thick: |
1 Oz |
| Legend Color: |
White |
| Board Thick: |
1.6mm |
| Minimum Trace and Space: |
6 Mil/7 Mil |
| Minimum/Maximum Holes: |
0.7mm/3.3mm |
| Via: |
Via Tented |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
MultiLayer PCB Board FR-4 Tg135 Immersion Gold PWB With Red Solder Mask Applied In
GSM Gateway
Commodity Introduction

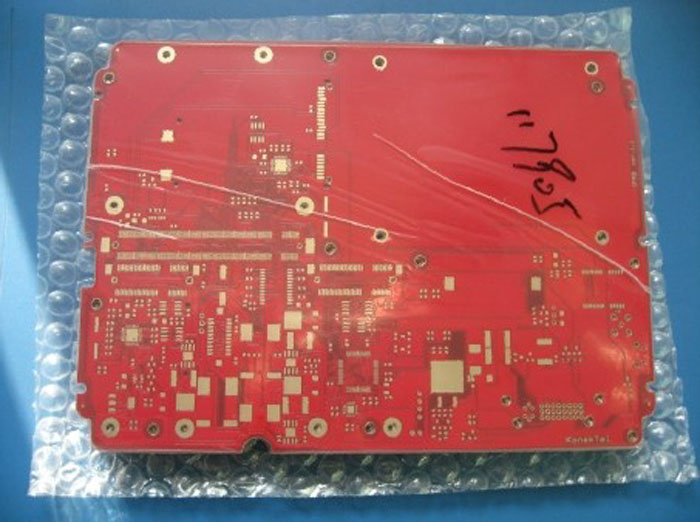

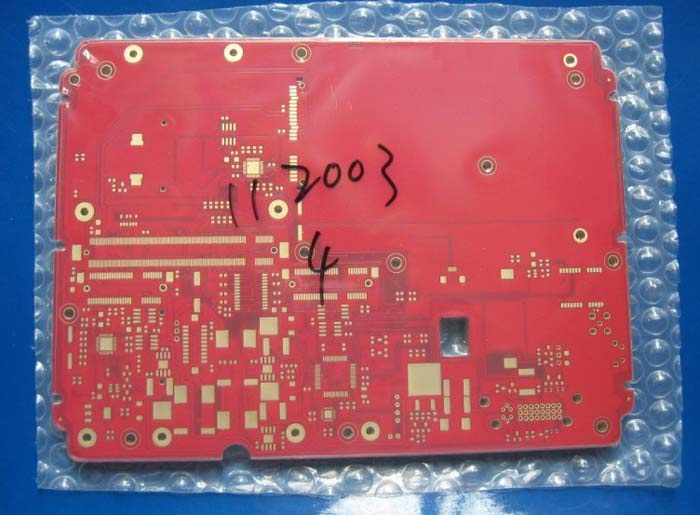

This is a type of FR-4 PCB for the application of GSM Gateway. It's a 4 layer board at 1.6mm
thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated
per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed sep
-arately.
Parameters & Data Sheet| PCB SIZE | 192 x 140mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 4 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP layer |
| 7628H x 1 0.195mm |
| copper ------- 35um(1oz) |
| Core FR-4 1.2mm |
| copper ------- 35um(1oz) |
| 7628H x 1 0.195mm |
| copper ------- 35um(1oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 6mil/7mil |
| Minimum / Maximum Holes: | 0.7mm/3.3mm |
| Number of Different Holes: | 14 |
| Number of Drill Holes: | 4015 |
| Number of Milled Slots: | 1 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-140 TG>135, er<5.4 |
| Final foil external: | 1.5oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (9.9%) 2µ" over 100µ" nickel |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Red |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | GSM gateway, Satellite Receiver
DC Power Supply
Inverters
Wireless USB
Portable PA System |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
