Multilayer PCB Built on 2.0mm Fr-4 with 4 Layer Copper
| Price: |
US $ 1.14/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-875-V8.75 |
| Board Thick: |
2.0mm |
| Surface Finish: |
Immersion Gold |
| Out Layer Copper: |
35 Um (1 Oz) |
| Soldermask Color: |
Green |
| Silkscreen Color: |
White |
| Final Foil Internal: |
1 Oz |
| Minimum Trace And Space: |
5.7 Mil/ 5 Mil |
| Minimum / Maximum Holes: |
0.5 mm /3.2 mm |
| Via: |
Minimum Size 0.5mm |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

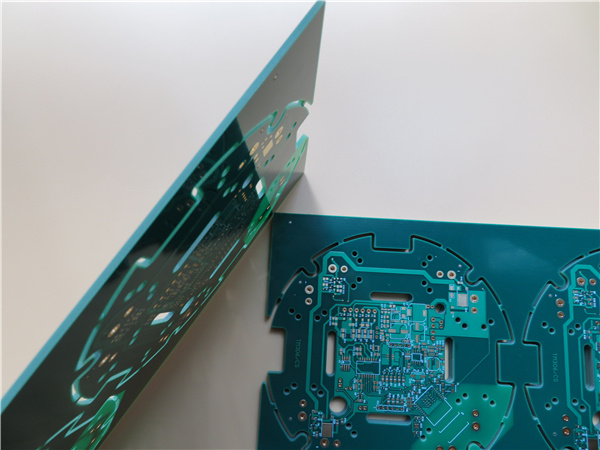

1.1 General description
This is a type of multilayer PCB built on FR-4 substrate with Tg 150°C for the application
of X-ray equipment. It's 2.0 mm thick with white silkscreen(Taiyo) on green solder mask (Taiyo)
and immersion gold on pads. The base material is from ITEQ supplying 2 up PCBs per panel.
They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 panels are pack
-ed for shipment. 1.2 Features and benifits
a. Very Low Moisure Absorption and better CAF resistance
b. Excellent surface planarity for CSP mounted components to reduce failure rate during
assembly and soldering.
c. High assembly density and small size
d. Comprehensive equipment management and maintenance and process control
e. ISO9001, ISO14001, UL certified manufacturing factory.
f. Eligible products rate of first production: >95%
g. No MOQ, low cost for prototypes and small runs quantity. 1.3 Application
Dsl Modem, Bluetooth For PC, Vehicle Tracker, GPS Vehicle Tracking, Wi Fi Antenna,
Electronic Counter, USB Wireless Router, DCDC Converter, Multicoupler Antenna, Space
probe equipment
1.4 Parameter and data sheet| PCB SIZE | 221 x 281mm=2PCS |
| BOARD TYPE | Multilayer PCB |
| Number of Layers | 4 layers |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP layer |
| Prepreg 7628(41%) 0.185 mm |
| copper ------- 35um(1oz) MidLayer 1 |
| FR-4 1.48 mm |
| copper ------- 35um(1oz) MidLayer 2 |
| Prepreg 7628(41%) 0.185 mm |
| copper ------- 18um(0.5oz)+plate BOT layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5.7 mil/ 5 mil |
| Minimum / Maximum Holes: | 0.5 mm /3.2 mm |
| Number of Different Holes: | 8 |
| Number of Drill Holes: | 315 |
| Number of Milled Slots: | 8 |
| Number of Internal Cutouts: | 16 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 Tg150ºC, er<5.4.IT-158, ITEQ Supplied |
| Final foil external: | 1 oz |
| Final foil internal: | 1 oz |
| Final height of PCB: | 2.0 mm ±0.2 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold (22.1% ) 0.05 µm over 3 µm nickel |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo Supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, stamp holes. |
| MARKING | |
| Side of Component Legend | TOP and Bottom. |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | plated through hole(PTH), minimum size 0.5mm. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
