Multilayer PCB Bulit on Tg 170º C Fr4 with Fast Turnaround
| Price: |
US $ 0.87/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-892-V8.92 |
| Board Thick: |
1.6mm |
| Surface Finish: |
Immersion Gold |
| Out Layer Copper: |
1 Oz |
| Soldermask Color: |
Blue |
| Silkscreen Color: |
White |
| Final Foil Internal: |
0.5 Oz |
| Minimum Trace And Space: |
4 Mil / 4 Mil |
| Minimum / Maximum Holes: |
0.3/4.22mm |
| Via: |
Minimum Size 0.3mm |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

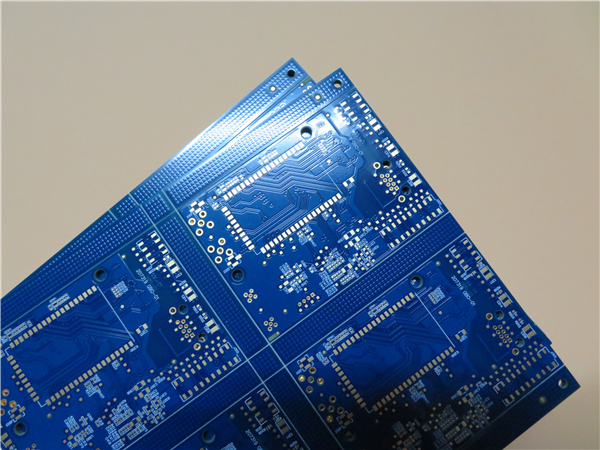

1.1 General description This is a type of multilayer PCB prototype built on FR-4 substrate with Tg 170°C for
the application of Space probe equipment with fast service. It's 1.6 mm thick with white
silkscreen(Taiyo) on blue solder mask (Onstatic) and immersion gold on pads. The base
material is from ITEQ supplying 4 up PCBs per panel. They're fabricated per IPC 6012
Class 2 using supplied Gerber data. 1.2 Features and benifits
a. RoHS compliant and suitable for high thermal reliability needs
b. SMT process is resistant to reflow soldering, resistant to rework.
c. Convenient layout wiring
d. 30000 square meter month capability
e. Powerful PCB capabilities support your reaearch and development, sales and marketing.
f. 30000 square meter month capability
g. Professionalism and whole-hearted service1.3 Application
HDMI Converter, Security System, Led Light Panel, Waterproof Led Lights, 1000 Watt
Inverter, 1500 Watt Inverter, Convert DC To AC, 220V Inverter, PC and Notebook, Traffic
systems
1.4 Parameter and data sheet| PCB SIZE | 185 x 156mm=4PCS |
| BOARD TYPE | Multilayer PCB |
| Number of Layers | 4 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | Top layer --- 0.018mm +plating |
| PP 2116 (54%) + 1080(64%)+2116(54%) |
| Innerlayer 1 --- 0.018mm |
| Core FR-4 --- 0.79mm |
| Innerlayer 2 --- 0.018mm |
| PP 2116 (54%) + 1080(64%)+2116(54%) |
| Bottom layer --- 0.018mm +plating |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4 mil / 4 mil |
| Minimum / Maximum Holes: | 0.3/4.22mm |
| Number of Different Holes: | 8 |
| Number of Drill Holes: | 509 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | 0 |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 Tg170ºC, S1000-2, Shengyi |
| Final foil external: | 1 oz |
| Final foil internal: | 0.5 oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold (22.5% ) 0.1µm over 3µm nickel |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Blue, R-500 BL, Onstatic |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, V-Cut |
| MARKING | |
| Side of Component Legend | TOP and Bottom. |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor
and leged FREE AREA |
| VIA | plated through hole(PTH), minimum size 0.3mm. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
