Multilayer PCB Fr4 Circuit Board with Blue Matt for Panel
| Price: |
US $ 0.62/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-253-V2.53 |
| Outer Copper Foil: |
1 Oz |
| Board Thickness: |
1.6mm |
| Surface Treament: |
Immersion Gold |
| Solder Mask: |
Blue Matt,Ksm-6189blm1 |
| Legend: |
White,Taiyo |
| Min Line Width (Mil): |
5.2 Mil |
| Min Line Spacing (Mil): |
4.3 Mil |
| Electrical Test: |
100% PCB Passed |
| Visual Inspection: |
Ipc-a-600h&Ipc-6012c |
| Solderability Test: |
245ºC 5s 1 Cycle |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

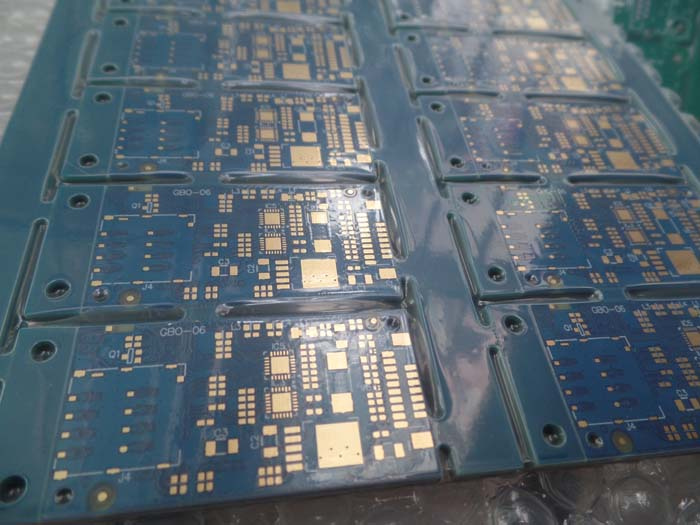

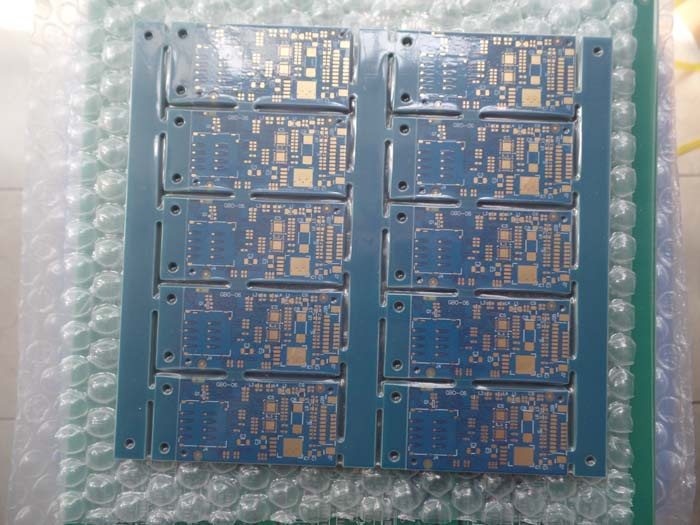

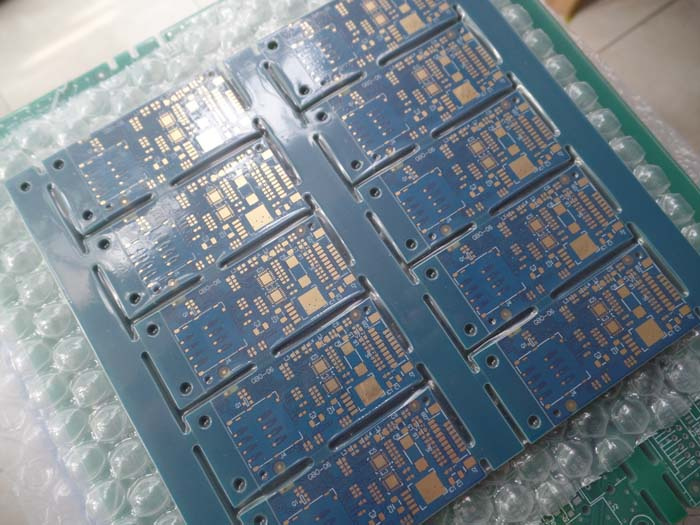

Blue Matt Multilayer 4 Layer PCB with Immersion Gold in 10up per panel and Milling with
V-groove in Power Inverter
Commodity Introduction
This is a type of FR-4 PCB for the application of Power Inverter. It's a 4 layer board at 1.6mm
thick.The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated
per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed
separately.
Parameters & Data Sheet| Item | Requirement | Result |
| Laminate | Type | FR-4 | FR-4 |
| Supplier | ITEQ | ITEQ |
| Board thickness | 1.6+/-10%mm | 1.64-1.65mm |
| Outer copper foil | >=35 um | 43.37um |
| Inner copper foil | 1/1 OZ | 1/1 OZ |
| Warp-twist | <= 0.75% | 0.27% |
| Legend | Type | Taiyo | Taiyo |
| Color | White | White |
| Location | Both sides | Both sides |
| Marking | Co.logo | As requirement | OK |
| UL.logo | As requirement | OK |
| Date code | As requirement | OK |
| Marking form | As requirement | OK |
| Location | C/S | C/S |
| Min line width (mil) | 5 | 5.2 |
| Min line spacing (mil) | 4.5 | 4.3 |
| Min ring width (mil) | NA | NA |
| Solder Mask | Type | KSM-6189BLM1 | KSM-6189BLM1 |
| Color | Blue Matt | Blue matt |
| Thickness | >=10 um | 13 um |
| Pencil Test | 6H OR ABOVE | OK |
| SOLVENT TEST | NO ATTACK | OK |
| TAPE TEST | NO PEEL OFF | OK |
| Surface Treament | Immersion Gold | OK |
| Special Treament | Silk screen | / | / |
| Location | / | / |
| Forming | V-cut | OK |
| Normal Testing | Electrical test | 100% PCB passed | OK |
| Visual inspection | IPC-A-600H&IPC-6012C | OK |
| Solderability Test | 245ºC 5S 1 Cycle | OK |
Finished dimension (unit: mm): including v-cut| No | Required Dimension (tolerance) | Actual Dimension |
| 1 | 100.03 | 99.92 | 99.94 | 100.01 | 99.93 |
| 2 | 100.03 | 99.92 | 99.92 | 100.13 | 100.01 |
Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)| No | Required | PTH | Actual Dimension |
| 1 | 2.000 | N | 2.000 | 1.975 | 2.025 | 2.000 |
| 2 | 4.000 | N | 4.000 | 3.975 | 4.025 | 4.000 |
Learn PCB and Buy PCB
4 layer PCB
4-layer PCB consists of 4 copper layers together with 2 prepreg and 1 epoxy core. This structure
is widely used in the application of IP codec, automobile electronics, computer and peripherals,
servers and networking etc.
Bicheng provide 3 types base material of 4-layer PCB's.
(1) FR-4 material (The most common used today)
Normal Tg >135 and High Tg>170
Material Brand: ITEQ, SHENGYI
(2) High frequency material
RO4350B, RO4003C
Prepreg RO4450B
(3) Hybrid material
RO4350B+FR4+RO4350B
RO4350B+FR4 support
RO4003C+FR4+RO4003C
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
