Multilayer PCB Impedance Controlled 10layer with Immersion Gold
| Price: |
US $ 0.89/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-212-V2.12 |
| Board Thickness: |
1.6mm |
| Finished Copper: |
1 Oz |
| Surface Finish: |
Immersion Gold |
| Soldrmask Color: |
Green |
| Silkscreen Color: |
White |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Impedance controlled PCB with Signal trace and Differential pairs 1.60mm Thick with
Immersion Gold for Wireless Broadband Router
Commodity Introduction

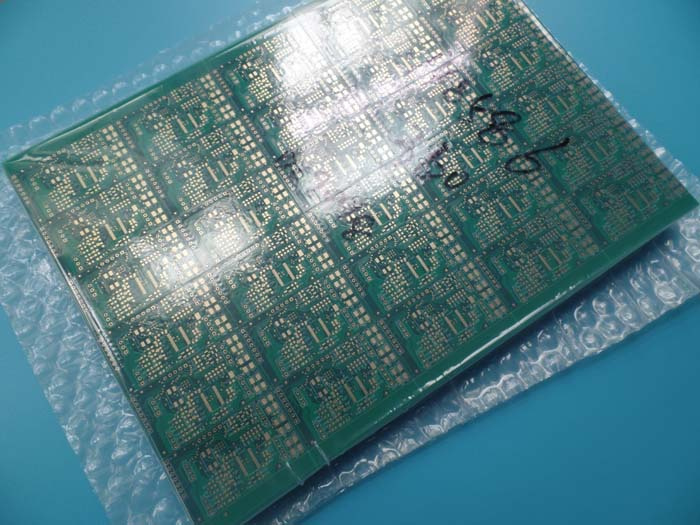

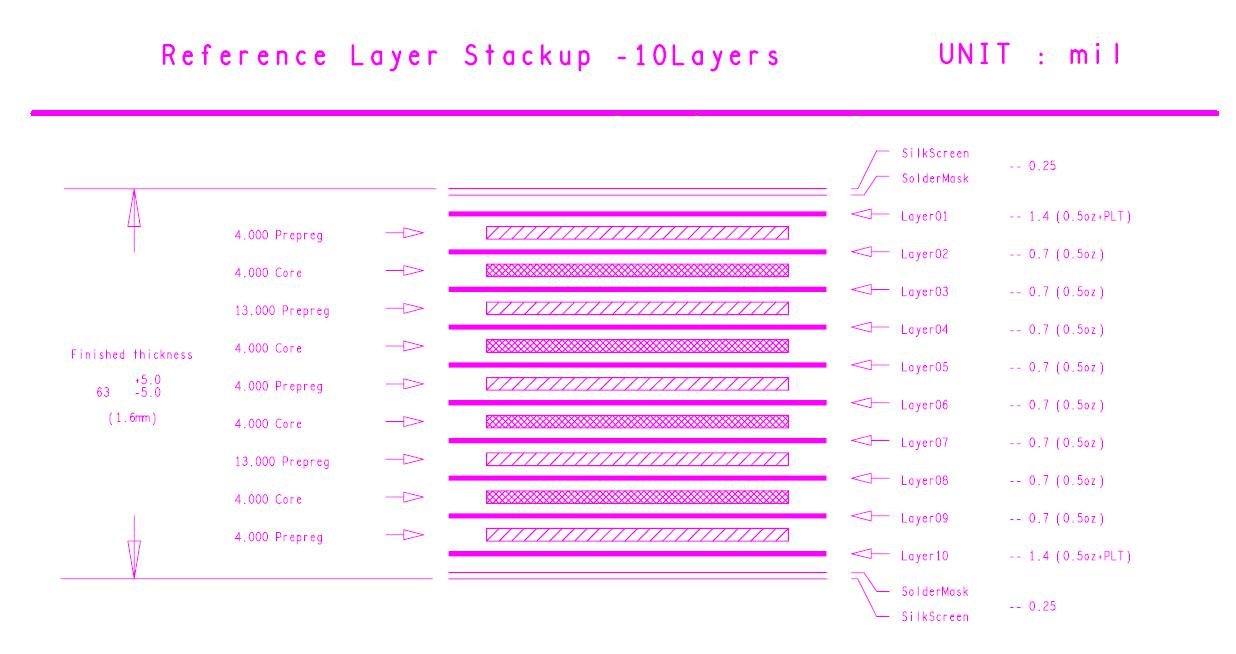

This is a type of FR-4 PCB for the application of Wireless Broadband Router. It's a 10 layer
board at 1.6mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from

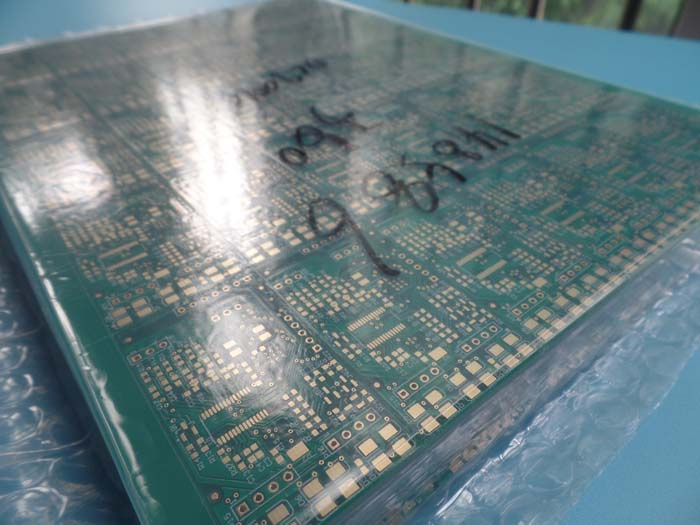

Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or
panels are packed separately.
Parameters & Data Sheet| Board Name | G5P Base Rev0 |
| Layers | 10 |
| Dielectric Material | FR4 |
| SPELL MODE | 1×1 |
| Board Thickness | 1.60mm |
| Surface Finished | Immersion Gold |
| Soldermask Color | Green |
| Silk Screen Color | White |
| OPEN WINDOWS | NONE |
| Outline Profile | Router |
| E-TEST Checker | Flying Probe |
| UL-MAKE | Not Specified Position |
| UL-MAKE Layer | Silk Top or Bottom |
| Other Notes | 1. All vias under BGA area are filled with
soldermask,all other vias are covered by
soldermas
2.Default Dril Tolerance: VIAS:+/-3mil/-6mil NON
PLATED HOLES:+/-0.2mil
PLATED HOLE:+/-3.0mil |
Signal Trace Impedance Control| Layer | Trace Width(Mil) | Trace Impedance(Ohm) | Precision | Reference layer | Remark |
| 1 10 | 5 | 50 | +/-10% | Default | |
| 3 4 7 8 | 4 | 50 | +/-10% | Default | |
| 1 | 20.1 | 50 | +/-10% | L3 | |
Differential Pairs Impedance Control| Layer | Trace Width/Space(Mil) | Trace Impedance
(Ohm) | Precision | Frequency(MHZ) | Remark |
| 1 3 4 7 8 10 | 5.1/8 | 85 | +/-10% | Default | |
| 1 3 4 7 8 10 | 4.6/8 | 90 | +/-10% | Default | |
| 1 3 4 7 8 10 | 4.1/8 | 100 | +/-10% | Default | |

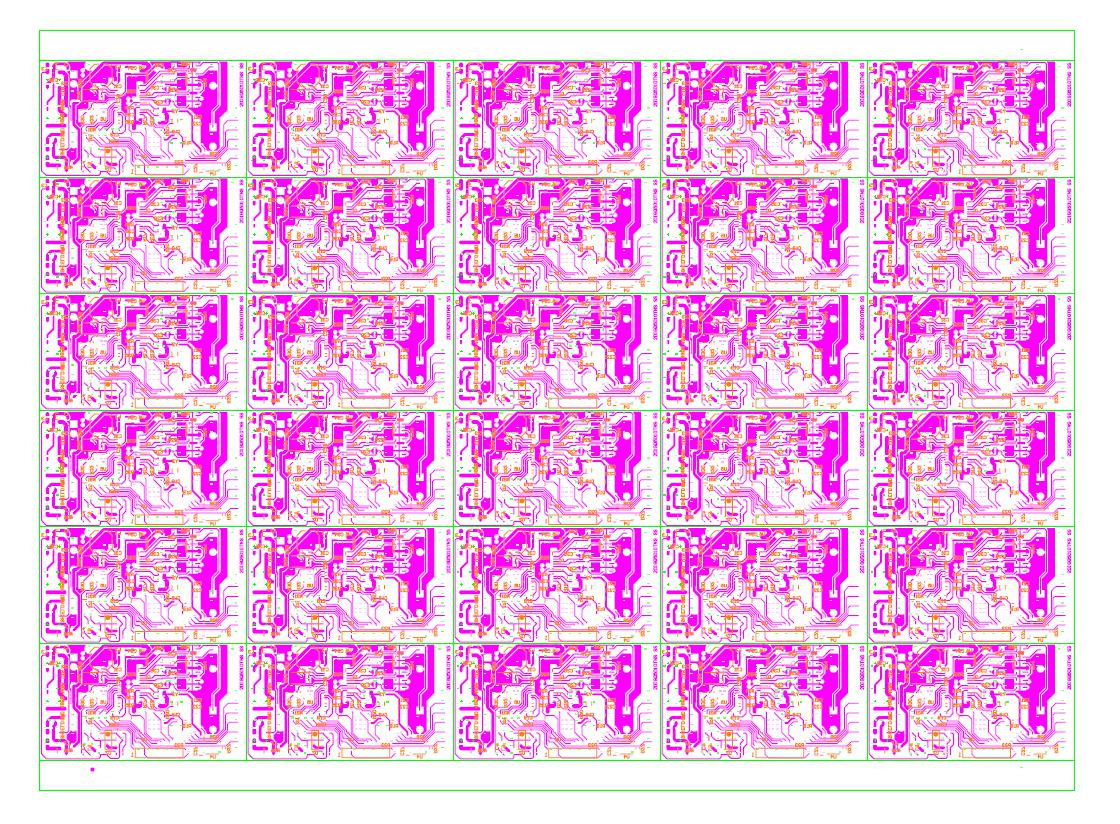

Panel PCB
| DRILL CHART:TOP to BOTTOM |
| ALL UNITS ARE IN MILS |
| FIGURE | SIZE | PLATED | QTY |
| | 8.0 | PLATED | 1767 |
| | 10.0 | PLATED | 2886 |
| | 12.0 | PLATED | 83 |
| | 14.0 | PLATED | 98 |
| | 18.0 | PLATED | 54 |
| | 27.559 | PLATED | 10 |
| | 27.559 | PLATED | 2 |
| | 33.0 | PLATED | 8 |
| | 35.0 | PLATED | 140 |
| | 40.0 | PLATED | 8 |
| | 47.0 | PLATED | 3 |
| | 55.0 | PLATED | 7 |
| | 63.0 | PLATED | 4 |
| | 91.0 | PLATED | 4 |
| | 93.0 | PLATED | 2 |
| | 102.358 | PLATED | 7 |
| | 118.0 | PLATED | 6 |
| | 126.0 | PLATED | 9 |
| | 128.0 | PLATED | 2 |
Advanatages
1. Cutting-edge technology: it is rational for a small and medium-sized customer to hanker after
the latest equipment and manufacturing expertise for its PCBs. By the partnerships with Bicheng
PCB,you gain access to reach your expectation with our 3 factory bases with over 26,000 square
meters.
2. Lead-Free Assembly Compatible, RoHS compliant and suitable for high thermal reliability needs,
and Lead free assemblies with a maximum reflow temperature of 260ºC
3. Excellent surface planarity, particularly helpful for PCBs with BGA packages or even CSP
mounted components to reduce failure rate during assembly and soldering.
4. DDU Door to door shipment with competitive shipping cost. You don't need to arrange anything
after confirming the order. Just wait for your PCB delivery to your hand.
More Applications
Voip Router
Satellite Antenna
Ac To Dc Power Converter
Adsl Modem Router
Inverter Circuit
Power Converters
Ac Inverter
Wifi Antenna Booster
Wireless Broadband Router
Modem Gsm
Usb Adaptor
N Router
Buy PCB and Learn PCB --- Image Transfer
As PCBs become more complex, patterns (pads and tracks) are becoming finer and finer. It is
very crucial to transfer the image without any noticeable distortion. The finished image will act
as a plating resist. This is usually based on a dry-film resist of a certain thickness that matches
the plating thickness.
The most commonly used track width is about 0.102 mm (4 mils) which could be regarded as the
standard width. However, widths of 0.076 mm (3 mils) are also in use, and some Chinese PCB
manufacturers operate with track widths down to 0.050 mm (2 mils). But the PCB designer should
not be tempted by track widths of 0.076 mm (3 mils) or smaller because the manufacturing yield
becomes lower and the board price,correspondingly, higher.
The purpose of image transfer is to cover those areas of the board that are not to be plated with
copper,tin/lead or pure tin, with a plating resist, and to leave the pattern open for electroplating.
With plated-through-hole boards, image transfer is performed by means of a photopolymer dry-
film process consists of the following steps:- Lamination
- Registration
- Exposure
- Developing
- Laser Direct Imaging
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

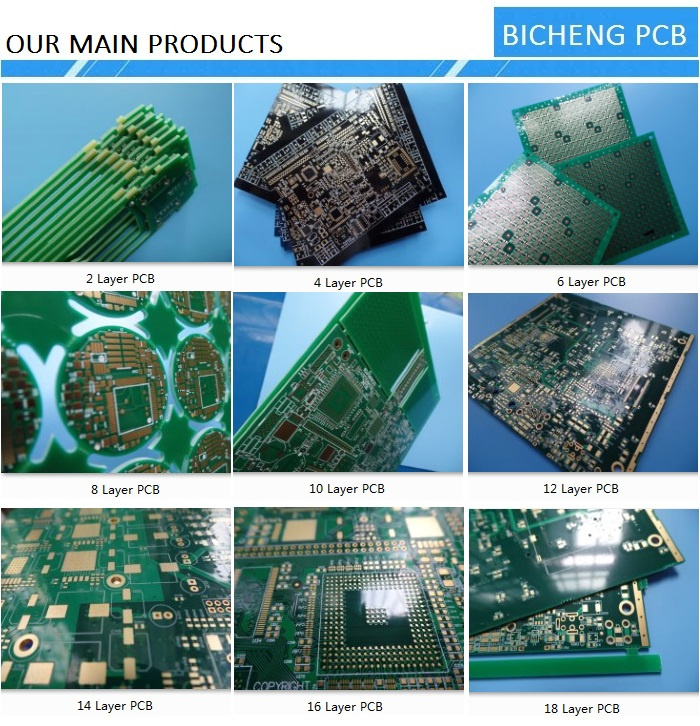

A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
