Multilayer PCB Stackup Planning Fr4 with 1.5 Oz Copper Board
| Price: |
US $ 0.45/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1270R1.3 |
| Surface Finish: |
HASL Lead Free |
| Board Thick: |
1.6mm |
| Copper Thick: |
1.5 Oz |
| Solder Mask Color: |
Green |
| Silkscreen: |
White |
| Board Plating: |
0.0030" |
| Via: |
Via Tented |
| Minimum Trace And Space: |
5mil/5.5mil |
| Minimum/Maximum Holes: |
0.9/3.1mm |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Multilayer PCB Stackup Planning FR4 with 1.5 oz copper board
Commodity Introduction

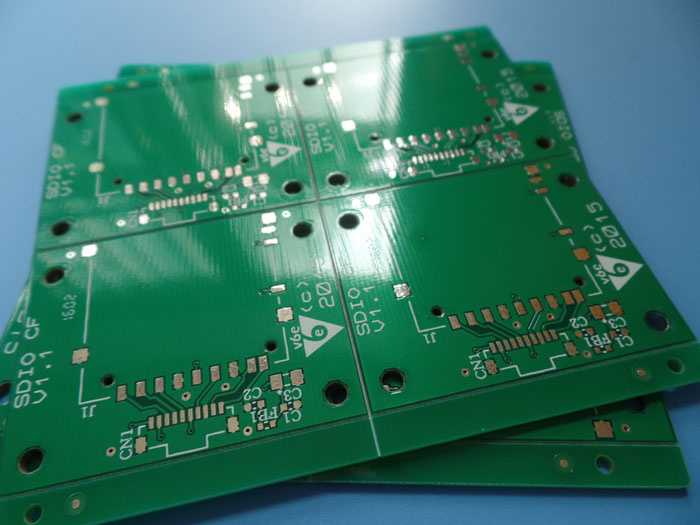

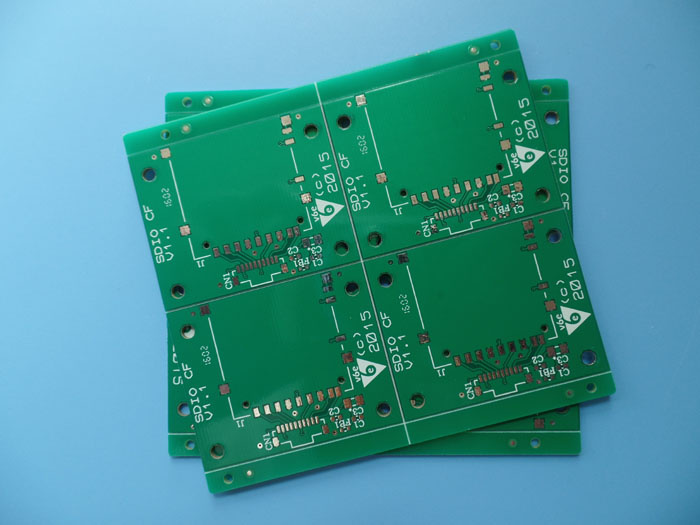

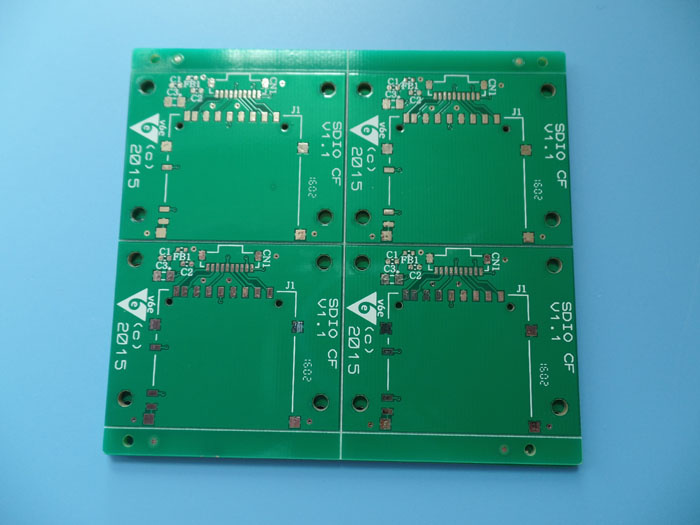

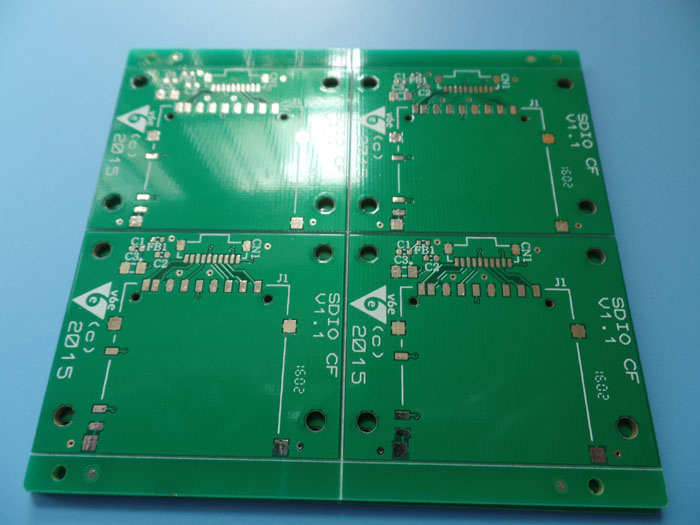

This is a type of FR-4 PCB for the application of Air Heating System. It's a 4 layer board at 1.6mm
thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per
IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 87 x 89mm=4PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 4 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP layer |
| Prepreg 7628 0.195mm |
| copper ------- 35um(1oz) MidLayer 1 |
| FR-4 1.0mm |
| copper ------- 35um(1oz) MidLayer 2 |
| Prepreg 7628 0.195mm |
| copper ------- 35um(1oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5mil/5.5mil |
| Minimum / Maximum Holes: | 0.9/3.1mm |
| Number of Different Holes: | 9 |
| Number of Drill Holes: | 1255 |
| Number of Milled Slots: | 4 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | NO |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT140 TG>135, er<5.4 |
| Final foil external: | 1.5oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | HASL ,Lead Free, Sn>=2.54µm |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo supplied. Peelabel mask. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, Tooling strips, Fiducial marks |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged
FREE AREA |
| VIA | Plated Through Hole(PTH), via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Air heating system, San Storage
GPS Receiver
3G Wifi Router
Wireless Broadband
DC To AC Inverter |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
BichengPCB's Customers are located worldwide.
In the past year 2016, BichengPCB have served more than 100 customers in the world in the
applications of power electronics, intercom systems, telecommunications etc. BichengPCB
now is an established brand in PCB industry.
Customers are located worldwide.
