Multimode Om3 Plenum Single-Armored Double-Jacket Tight-Buffered Indoor/Outdoor Fiber Optical Cable

Name: Multimode Om3 Plenum Single-Armored Double-Jacket Tight-Buffered Indoor/Outdoor Fiber Optical Cable
Brand: all-electronics-online.com
SKU: 819687075
Availability: InStock
Rating: 4.9 (127 reviews)

Price:	US $ 3.5/Meter
Min Order:	4000/Meter
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ATBP-SADJ-OM3-12
Od:	7.0 mm
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC
Certification:	CE
Core:	12 Cores
Sheath Material:	Plenum

Product Description

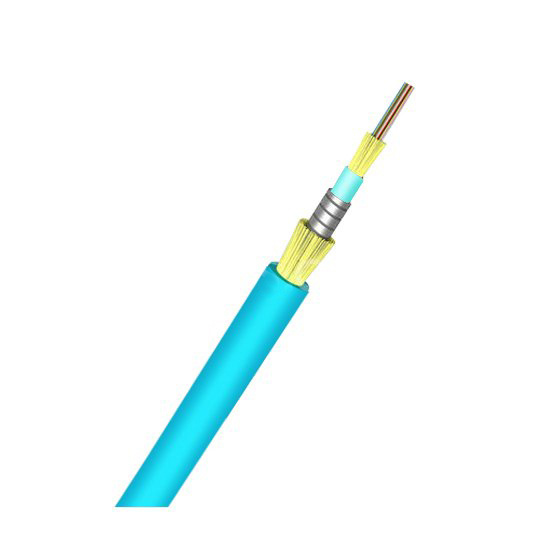

12 Fibers MM OM3, Plenum, Single-Armored Double-Jacket, Tight-Buffered Distribution Indoor/Outdoor Cable

Tight buffered fibers are positioned in a flexible metal tube, which is filled with aramid yarn strength members within inner jacket for ensuring excellent tensile strength and flexibility. Over the tube, there are aramid yarns and outer jacket to provide crucial protection for fiber. The cables are very suitable for indoor or outdoor applications in customer premises, central offices and in harsh environments.

Cable Type	Tight-Buffered Distribution Cable	Fiber Count	12 Fibers
Outer Jacket	Plenum	Fiber Type	Multimode 50/125 OM3(Aqua)
Armor Layer	Stainless Steel Tube	Strength Member Material	Aramid Yarn
Cable Diameter	7.0mm	Cable Weight	75kg/km
Tensile Strength (long/short term)	300/600N	Crush Load (long/short term)	3000/5000 (N/100mm)
Bending Radius (long/short term)	10D/20D (mm)	Operating/Storage Temperature	-20 to +70°C/-40 to +80°C

Feature and Application

High impact and crush resistanceEasy to strip, easy handling and terminationJacket is UV, fungus, and moisture resistantExcellent mechanical property and environment propertyAramid yarns provide excellent tensile strength and flexibilityStainless steel tube armor for high crush and rodent resistance

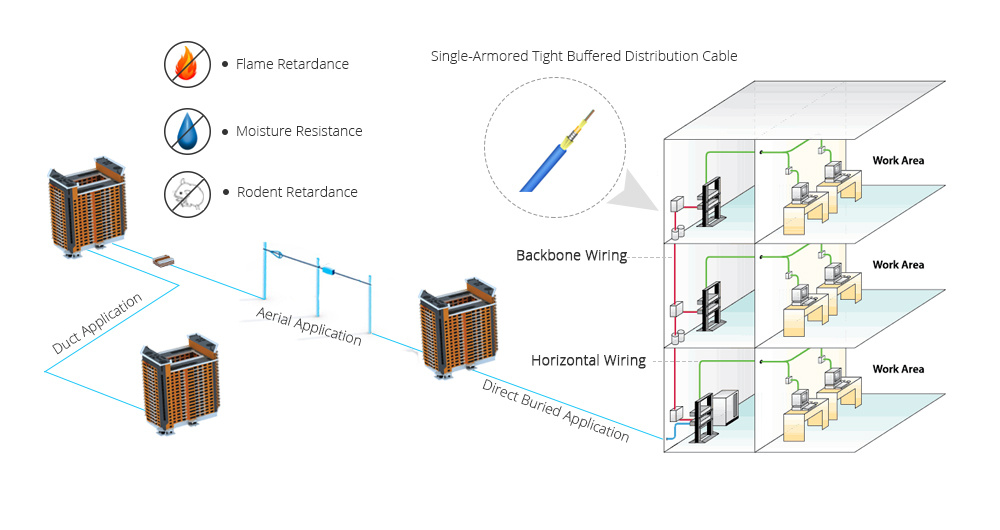

Ducts & conduits applicationCATV, LAN, WAN and FTTX cablingEnvironments requiring extra protectionRiser and general horizontal applicationsDirect connection to terminal equipmentsInter building and intrabuilding voice or data networks

Ideal Solution for Tight-Buffered Distribution Indoor/Outdoor Cable

The tight buffered distribution indoor/outdoor cables are constructed with a stainless steel tube and aramid yarns for providing high tensile and crush resistance to ensure good mechanical property and environment property. In addition, with rodent resistance and waterproof protection, the cables are very suitable for environments requiring extra protection, inter building and intrabuilding voice or data networks.
