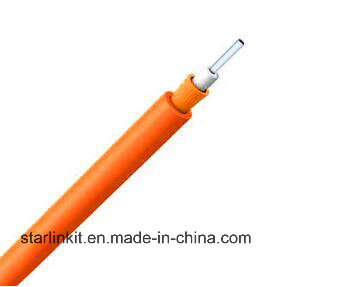

Multimode Simplex Tight Buffer Round LSZH Indoor Fiber Optic Cable

Name: Multimode Simplex Tight Buffer Round LSZH Indoor Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 791069015
Availability: InStock
Rating: 4.5 (143 reviews)

Price:	US $ 0.5-5/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SL-SIM/MM
Tensile Strength:	Over 500n
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC
Certification:	CCC
Sheath Material:	LSZH

Product Description

This is a 50/125/900µm fiber optic indoor cable, could be used as patch cords and pigtails, could be a interconnection of fiber optic equipment.

The fiber is coated with 250µm soft plastic, and then covered with a 900µm tight buffer thick layer of hard plastic, which add some fiber protection.

The Kevlar yarn material ensure a good performance of tensile strength. And the Flame retardant outer jacket could be used in LSZH environment.The cable diameter is 2.0mm,3.0mm optional.

Item Details

Fiber Count: 1 Fiber
Fiber Type: 50/125μm Multimode
Out Jacket: LSZH
Cable DIA.: 2.0mm, 3.0mm Optional
Fiber Color: Orange

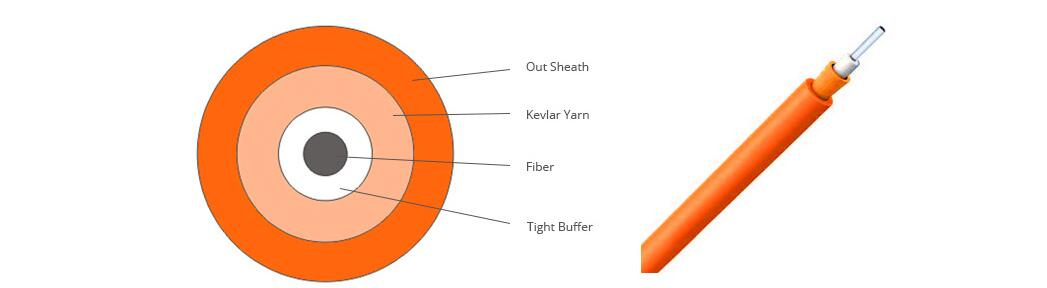

Cable Structure

Features

Soft, flexible, easy to splice, and with big capacity data transmission.Good mechanical and environmental properties.The mechanical and physical characteristics of the outer jacket make the cable can be used in riser environment.Kevlar yarn material ensure a good performance of tensile strength.900µm tight buffer protect the fiber well.

Application

Indoor cabling and distributionInterconnection of fiber optic equipment, especially ODFUsed in patch cords and pigtails

Specifications

Cable Count	Out Sheath Diameter	Weight	Minimum Allowable Tensile Strength (N)		Minimum Allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage Temperature
	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(ºC)
4	4	25	600	200	1000	200	20D	10D	-20~+60
6	4	26	600	200	1000	200	20D	10D	-20~+60
8	5	32	600	200	1000	200	20D	10D	-20~+60
10	5.5	35	600	200	1000	200	20D	10D	-20~+60
12	6	38	600	200	1000	200	20D	10D	-20~+60
24	8	60	600	200	1000	200	20D	10D	-20~+60

		G.652	50/125µm	62.5/125µm
Attenuation (+20°C) (dB/km)	@850nm		≤3.0	≤3.0
	@1300nm		≤1.0	≤1.0
	@1310nm	≤0.36
	@1550nm	≤0.22
Bandwidth (Class A) (MHz·km)	@850nm		≥600	≥200
Bandwidth (Class A) (MHz·km)	@1300nm		≥1200	≥600
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc (nm)		≤1260

Package


Package 1	Package 2
Package 1: usually for indoor cable, light weight cables. Package 2: usually for outdoor cable, heavy weight cables Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

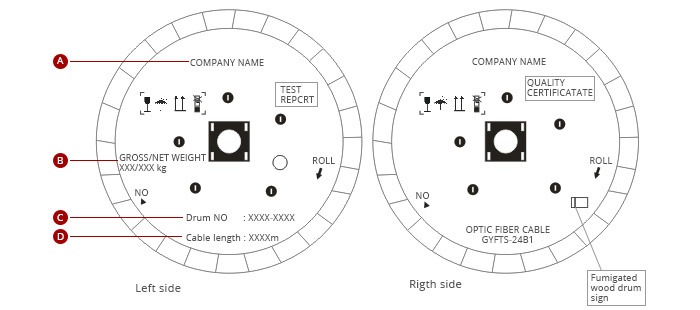

Mark

Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross / Net weight
3. Drum No: XX
4. Cable Length : XX
