| Prod Model: |
RV ZR-RV BL3 |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Application: |
Indoor or Outdoor Housing |
| Brand: |
Yifang |
Product Description

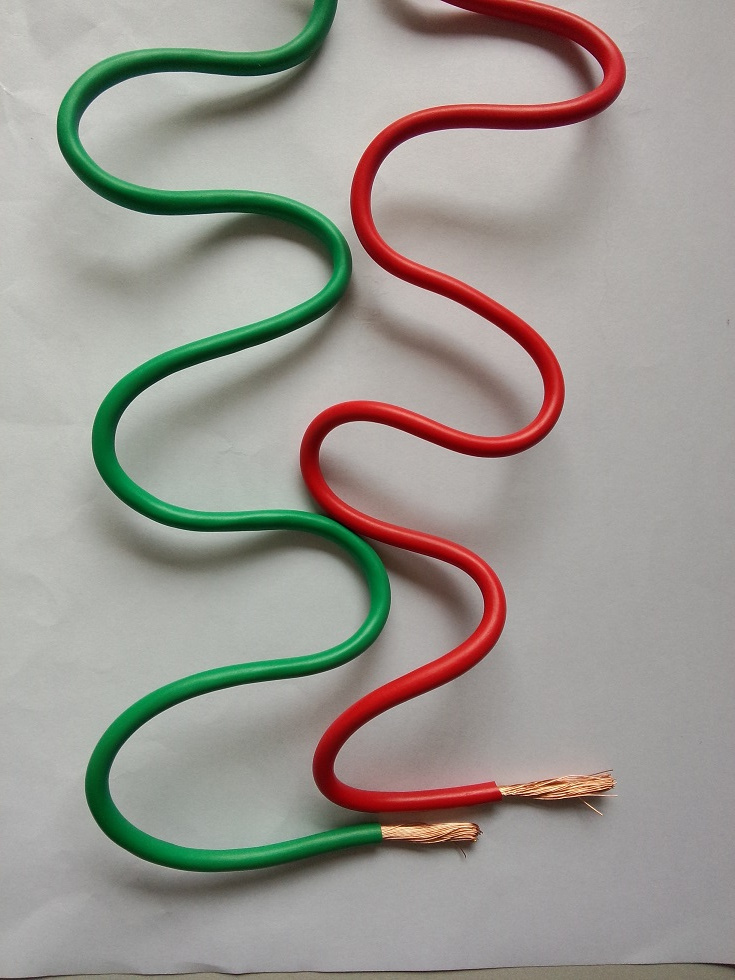

Multistrand Copper Wire PVC Insulated Flexible Wire
1.Brief introduction
PVC insulated wires belong to the series of laying electric wires,which is mainly suitable for laying at the fixed places.It is widely used as connectors of drive,lighting,electric equipments,instrument and telecommunication equipments with rated voltage 450/750Vor below.Part of the plastic wires are used at the equipment with AC rated voltage 300/300V or below.
2.Standards
The products adopt GB 5023.11997450/750V or below PVC insulated electric wires,JB 8734.15-1998450/750V or under PVC insulated cables,electric wires and flexible wiresand Q/ZEL 02-2002Piastic insulated electric wires and cables.GB 5023.17-1997 is identical to IEC227,and type are same as the stipulation of IEC,technical specification is just the same,and more we have extended the range of the type to fit for the requipment of the consumers.
3.Products
| Type | Name | Laying place and requirement | Long term working temperature |
227IEC01/05
BV
BLV | Copper conductor PVC insulated wires | Fixed laid indoors,conduits etc. | 70 |
| Aluminum Conductor PVC insulated wires |
227IEC07
BV-90 | Heat resistant copper conductor PVC insulated wires at 90 | Mainly be laid at the places of high temperature environment and can be laid indoors,conduits. | 90 |
| BVR | Copper conductor PVC insulated flexible wire | Be for laying permanent place where flexible required | 70 |
227IEC10
BW | Copper conductor PVC insulated PVC sheathed round wires | Fixed laid,fit for the places with high mechanical protection and moisture place.Can be laid in the air or underground. | 70 |
| BLW | Aluminum conductor PVC insulated PVC sheathed round wires |
| BWB | Copper conductor PVC insulated PVC Sheathed flat wires |
| BLWB | Aluminum conductor PVC insulated sheathed flat wires |
227IEC02RV
227IEC06RV | Copper conductor PVC insulated flexible connector | Mainly used at middle and linht stylemoving electronics,home appliances,power and lighting and the places where flexible required. | 70 |
227IECC42
RVB | Copper conductor PVC insualted flat flexible connector |
| RVS | Copper conductor PVC insulated flexible twisting connector wire |
227IEC52
RW
227IEC53
RW | Copper conductor PVC insulated PVC sheated round flexible connector(light and common type) |
Cross Sectional
Area
mm2 | Construction
No/single wire
Dia.
/
mm | Nominal Thick. Of Insulation
mm | Nominal
Overall Dia.mm
mm | Maximum Ave. Overall Dia.
mm | 20
Maximum D.C. Resistance
20
Ω/km | 70.Insulation Resistance
70
MΩ.km | Rated voltage
V |
| 0.5 | 16/0.20 | 0.6 | 2.14 | 2.6 | 39.0 | 0.013 | 300/500 |
| 0.75 | 24/0.20 | 0.6 | 2.39 | 2.8 | 26.0 | 0.011 | 300/500 |
| 1 | 32/0.20 | 0.6 | 2.54 | 3.0 | 19.5 | 0.010 | 300/500 |
| 1.5 | 30/0.25 | 0.7 | 2.99 | 3.5 | 13.3 | 0.010 | 450/750 |
| 2.5 | 49/0.25 | 0.8 | 3.67 | 4.2 | 7.98 | 0.009 | 450/750 |
| 4 | 56/0.30 | 0.8 | 4.21 | 4.8 | 4.95 | 0.007 | 450/750 |
| 6 | 84/0.30 | 0.8 | 4.81 | 6.3 | 3.30 | 0.006 | 450/750 |
| 10 | 84/0.40 | 1.0 | 6.88 | 7.6 | 1.91 | 0.0056 | 450/750 |
| 16 | 126/0.40 | 1.0 | 7.89 | 8.8 | 1.21 | 0.0046 | 450/750 |
| 25 | 196/0.40 | 1.2 | 9.97 | 11.0 | 0.780 | 0.0044 | 450/750 |
| 35 | 276/0.40 | 1.2 | 11.69 | 12.5 | 0.554 | 0.0038 | 450/750 |
| 50 | 396/0.40 | 1.4 | 13.24 | 14.5 | 0.386 | 0.0037 | 450/750 |
| 70 | 360/0.50 | 1.4 | 15.26 | 17.0 | 0.272 | 0.0032 | 450/750 |
| 95 | 475/0.50 | 1.6 | 19.0 | 19.0 | 0.206 | 0.0032 | 450/750 |
| 120 | 608/0.50 | 1.6 | 21.0 | 21.0 | 0.161 | 0.0029 | 450/750 |
| 150 | 756/0.50 | 1.8 | 21.9 | 23.5 | 0.129 | 0.0029 | 450/750 |
Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.
There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.
Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc
We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
