| Prod Model: |
EP3100 1kw-6kw |
| Markets: |
Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
1000W-6000W |
| DC: |
12V/24V/48V |
| Charging Current: |
Max 70AMP |
| Output Wave: |
Pure Sine Wave |
| Transformer Buit In: |
Yes |
| Generator Compatible: |
Yes |
| Buit In Battery Charger: |
Yes |
| Nominal Input Voltage: |
230VAC(120VAC Selectable) |
| Nominal Input Frequency: |
50Hz/ 60Hz(Auto Detection) |
Product Description

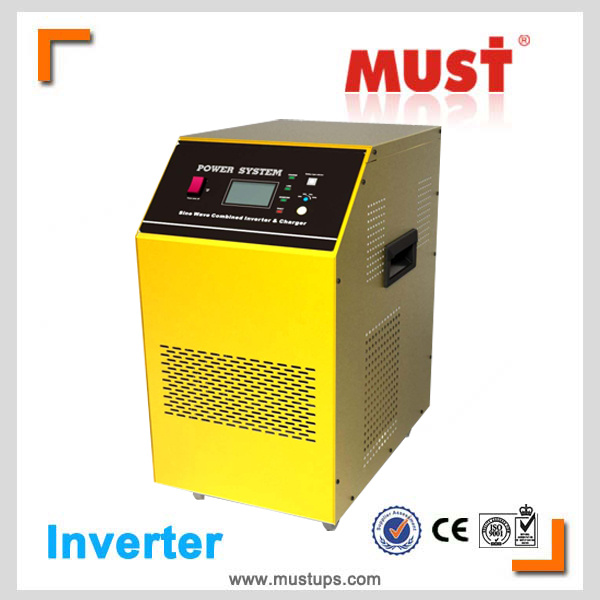

MUST EP3100 low frequency 3000 watt power inverter with pure copper transformer
· Durable construction for long life under extreme environmental conditions.
· Low idle current (less than 1 watt) conserves energy when no loads are present.
· Soft start capability for starting heavy loads.
· Built-in starting control circuits for two- and three-wire generator starting systems.
· Simplified controls with a snap-on cover that protects settings from being accidentally changed.
· Better thermal performance allows full output power to 50° C (122° F) without de-rating.
· High surge capacity starts more difficult loads and handles overload conditions reliably.
· Durable powder coated corrosion resistant steel chassis.
· 70-amp automatic three-stage battery charger (bulk, absorption, and float) and battery equalization with remotetemperature sensor for increased performance.
· New power factor corrected (PFC) charging, combined with a more sophisticated multi-stage battery charging algorithm, reduces electricity draw and generator run-time.
· Pure copper transformer inside and pure copper DC terminal port outside.
· Copper transformer, low consumption and heat-resisting, improves work efficiency.
· Big charge current: 30-70A, suitable for long power failure area.
| MODEL | 115V Models | 230V Models |
| OUTPUT |
| Power Levels crated at nominal inputs | 1KW;2KW;3KW;4KW | 1KW;2KW;3KW;4KW;5KW;6KW |
| Output Voltage | 110V/115V/120V Selectable | 220V/230V/240V Selectable |
| Voltage Waveform | Pure Sine wave |
| Crest Factor | 3:'1 |
| Output Frequency | Auto Select for 50/60Hz,47Hz ~55Hz for 50Hz nominal,56Hz ~ 65Hz for 60Hz nominal |
| (Synchronized to Mains) |
| Regulation (Nominal) | ±20% typical of nominal voltage |
| Regulation | ±3% of selected output voltage (adjustable with the |
| (Battery mode) | remote set-up software) |
| Transfer time | Blackout 3ms typical,Brownout 1ms typical,Battery mode to Normal mode:1ms typical |
| Over current protection | Over load alarm level 100% ~ 120% |
| Over load shutdown level 120% ~ 190% |
| (Adjustable by using the remote set-up software) |
| INPUT |
| Nominal Voltage | 110V/115V/120V Selectable | 220V/230V/240V Selectable |
| Input Frequency | 47Hz ~ 65Hz, 50/60Hz auto-sensing |
| Efficiency (Normal mode) | 99% |
| Noise Filtering | Full time EMI/RFI filtering |
| Over current protection | Re-settable over current protector:1000W~4KW | AC Fuse1000VA/2000VA,Re-settable over current protector:1000W~6KW |
|
| Voltage Range | 85V ~ 145V | 185V ~ 265V |
AVR Range
(2 Bucks, 2 Boosts) | Enhanced Buck: +28% of selected nominal voltage |
| Buck mode: +10% of selected nominal voltage |
| Boost mode: -10% of selected nominal voltage |
| Enhanced Boost: -25% of selected nominal voltage |
| Surge Protection | 1KW/ 2KW:416 Joules | 1KW-3KW:430 Joules |
| 3KW ~ 4KW:724 Joules | 4KW-6KW:826 Joules |
| BATTERY |
| Battery type | Lead-Acid 50Ah~500Ah (Recommended) | Lead-Acid 50Ah~500Ah (Recommended) |
| DC Voltage | 1KW/2KW:12Vdc | 1KW/2KW/3KW:12Vdc |
| 2KW/3KW:24Vdc | 2KW/3KW:24Vdc |
| 3KW/4KW:48Vdc | 3KW/4KW/5KW/6KW:48Vdc |
| Typical backup time | No Limit |
| Charging method | Smart pulse charging with two charging modes?EQuick charging when battery |
| is not fully charged, trickle charging when battery is 90% fully charged. |
| Maximum charging current | 1000W 12V:35A | 1000W 24V:35A |
| 2000W 12V:65A | 2000W 24V:35A |
| 3000W 24V:45A | 4000W 48V:35A |
| 5000W 48V:40A | 6000W 48V:50A |
| Average charging | Quick charging mode:15.7V-54V maximum. |
| voltage for each battery | Trickle charging mode:13.5V -52V(adjustable with the remote set-up software) |
| Protection | Over current protection & Over charging voltage protection (SCR control) |
| Thermal protection (CPU control) |
| When temperature inside the unit is over 45°C ,charger will stop charging for 2 minutes followed by an 2 minutes charging. The cycle will be repeate |
| Monitoring | Smart monitoring & warning for failed battery or open-circuit battery. |
| Auto-detection each time when power on or every 6 days. |
| SOLAR CHARGER |
| Rating voltage | 12V / 24V / 48V | 12V / 24V / 48V |
| DC input range | 12V model : 12 ~ 21Vdc;24V model : 24 ~ 42Vdc;48V model : 48 ~ 84Vdc |
| Charging method | Constant voltage with current limiting by PWM control |
| Charging voltage | 12V model:13.5Vdc;24V model: 27.0Vdc;48V model: 54.0Vdc |
| Power rating | 12V model : 1000W/2000W (13.5Vdc @ 37A) |
| 24V model : 1000W/2000W (27.0Vdc @ 37A) |
| 48V model : 3KW/5KW/6KW (54Vdc @ 18.5A) |
| Protection | DC input polarity protection, DC input short circuit protection( when battery is |
| connected), DC output over current protection |
| COMMUNICATIONS & MANAGEMENT |
| Standard Interface port | UPSilon2000 compatible; optional for RS232 . |
| Optional Interface part | RJ45 (Surge protection), DB9 |
| Control panel | LCD or LED Selectable |
| Audible alarm | Alarm on battery:Low battery & Battery over voltage |
| Alarm on abnormal operation:Over load, Short-circuit, & Over heat |
| Green mode function | 1% to 14% of full load (adjustable by using the remote set-up software) |
| (Auto-shut-off in blackout) | The default setting is OFF. |
| Cooling fan control | Auto on / off, controlled by temperature & operation mode |
| ENVORMENT AND SAFETY |
| Operating Temperature | Up to 1500 meters:0°C to 40°C (32°Fto 104°F) |
| Transit/storage Temp. | -15°C to 55(5°F to 131°F) |
| Relative Humidity | 5 - 95% non condensing |
| Operating Altitude | 0 ~ 3000 meters |
| Quality control system | ISO 9001:2000, ISO 14002-2004 |
| PHYSICAL |
| Appearance | Size(mm)LxWxH | 570*315*300 |
| Weight(Kg) | 1000W/18.2kg ;2000W/19.5kg ;3000W/23.5kg |
| Size(mm)LxWxH | 755*319*288 |
| Weight(Kg) | 4000W/35kg ;5000W/38kg ;6000W/40kg |
