Must OEM Service High Frequency AC220V Online 6000 Watt UPS
| Price: |
US $ 366-502/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
EH5000 0.8-20KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
6000 Watt UPS |
| Wave Form: |
Pure Sine Wave |
| Output Voltage: |
Euro Standard 220V, 230V, 240V |
| Power Expansion: |
N+X Parallel Redundancy |
| Wide Input Voltage: |
145-275VAC 210-475VAC |
| Transfer Time: |
0 Ms |
| Weight: |
20-120kg |
| Communciation Interface: |
RS232,RJ45 |
| Output Sockets: |
Universal/ IEC/NEMA/German |
| Frequency Range: |
46-54Hz/56-60Hz |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Most Power Problems |
| Brand: |
Must/OEM |
Product Description

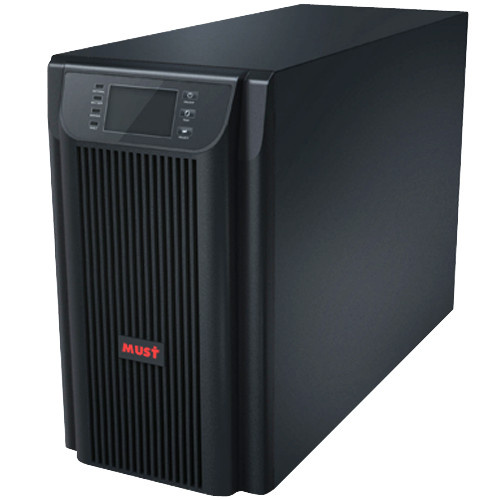

MUST OEM Service High Frequency AC220V Online 6000 Watt UPS
Model:EH5000 1-20KVA
Features
1. Pure Sine Wave oupt
2. Compatible with Generator well
3. Light, Fan, TV, Computer. Fax. Applications.
Specifications| MODEL | HC1K | HC1KS | HC2K | HC2KS | HC3K | HC3KS | HC6K | HC6KS | HC10K | HC10KS | 3HC10KS | 3HC15KS | 3HC20KS |
| Capacity(VA/W) | 1000VA/800W | 2000VA/1600W | 3000VA/2400W | 6KVA/4.8KW | 10KVA/8KW | 15KVA/12KW | 20KVA/16KW |
| INPUT |
| Phase | Single Phase | 1PH 2W+G | 3PH 4W+G |
| Voltage Range | 110-300VAC | 120-275VAC | 207-476VAC |
| Frequency | 40~70Hz; 50/60Hz Autoadaptation | 46~64Hz; 50/60Hz Autoadaptation |
| Power Factor | >0.99 | >0.95 |
| OUTPUT |
| Voltage Range | 208/220/230/240x(1±1%)VAC |
| Frequency Range | Main mode:(46~54)Hz/(56~64)Hz Battery mode:50(±0.1%)Hz/60(±1%)Hz |
| Crest Ratio | 3:1 |
| Power Factor | 0.8 |
| Output Waveform | Pure Sine Wave |
| Outlet | IECx4/ universal x2 | IECx4/ universal xI4EC | x3/ Terminalx1/universa | l x3 Hard Wiring with Terminal Black |
| TRANSFER TIME |
| Transfer Time | Zero |
| Inverter To Bypass | <4ms | Zero |
| INDICATOR | |
| LED | Load/Battery capacity/Main mode/Bypass mode/Fault |
| LCD | Load/Battery/Input/Output/Operation Mode |
| ENVIRONMENT |
| Operating Environment | 0~40°C |
| Humidity | 20-90%(non-condensing) |
| Noise | <50db@1 Meter | <60db@1 Meter |
| Temperature | -25°C~55°C(no battery) |
| OTHER |
| Protection | Load<110%,Keep working; 110%1min; 130%Immediately | Load<105%,Keep working; 105%1min; 125%30sec |
| Efficiency | Up to 85% | Up to 88% | Up to 90% |
| Battery Inbuit | 2 pcs or 3 pcs x 12V/7.2AH option | 6 pcs x 12V/7.2AH | 6 pcs or 8 pcs x 12V/7.2AH option | 16pcsx12V/7.2Ah/9Ah | external battery | 16pcsx12V/7.2Ah/9Ah | external battery |
| Battery DC Voltage | DC24V/36V | DC72V | DC72V/96V | DC192V |
| PHYSICAL |
| Machine Dimension W*H*D(mm) | 145*220*400 | 192*348*460 | 248*500*616 | 240*500*460 | 248*500*616 | 240*500*460 | 248*500*616 |
| Net Weight(kgs) | 12 | 24.7 | 24.7 | 24.7 | 30 | 31 | 62 | 20 | 64.2 | 20 | 25 | 33.5 | 40.8 |
| Gross Weight | 13.8 | 26.5 | 26.5 | 26.5 | 32.4 | 32.2 | 65 | 23 | 66 | 23 | 31 | 39.5 | 43 |
| Package Dimensions W*H*D(mm) | 495*230*321 | 605*335*482 | 595*325*473 | 605*335*482 | 660*360*720 | 605*405*590 | 660*360*720 |
| Loading(20GP/40GP/40HQ) | 850pcs / 1600pcs / 2000pcs | 260pcs / 480pcs / 600pcs | 220pcs / 377pcs / 500pcs | 150pcs / 280pcs / 380pcs |
MUST POWER LIMITED NEW FACTORY:
Shenzhen Must Power Limited established in 1998, which is a professional hi-tech enterprise specialized in Power Inverter,Solar Power, and Battery development, manufacturing, sales and after-service.
MUST ® comprehensive product lines include: Power inverter, Solar inverter, Solar charge controller, Solar battery, Solar power Pack and some other related Solar products.
Factory Tour
- Established in 1998, Headquarter in HongKong
- 10-year Professional Factory Manufacturer in Shenzhen, China
- Product Range: Power Inverter, Solar Inverter, MPPT Solar Charge Controller, Solar Battery, UPS
- Main Market : Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya,etc.
- Four-Floor Factory Building, 10000 Square Meters, Two Manufacturing Centers, QA Office, Aging Test Area and Two Teams of R & D.
- Certificate: ISO 9001, SGS Certificate, CE, etc
- 6-Year Alibaba Gloden Supplier
FAQ
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the difference between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
We have a aftersales office in Pakistan Lahore, then we will open more and more office all over the world.
Welcome to contact me freely.
MUST Power Limited
Hedy Huang
+86-151 1813 5723
Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.
Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.
With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
