Mv-90, Power Cable, 25 Kv, 3/C, Cu/Epr/Cts/PVC (ICEA S-93-639/NEMA WC71/UL 1072)

Prod Model:	MV-90
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	25 Kv
Number Of Cores:	3
Section:	1 AWG-750 Mcm
Class Of Conductor:	B
Type Of Shield:	Copper Tape
Voltage:	Low and Medium Voltage Cable
Insulation Material:	Rubber
Current:	DC Cable
Application:	Power Station
Certification:	CCC
Model:	Mv-90
Brand:	Boan

Product Description

MV-90, Power Cable, 25 KV, 3/C, Cu/EPR/CTS/PVC (ICEA S-93-639/NEMA WC71/UL 1072)

Features
UL Listed as MV-105. Rated as Sunlight Resistance for CT use, 1/0 AWG and larger. Oil Resistance I jacket. True Triple extrusion system and closed handling raw materials system, to eliminate any contact with ambient, until extrusion process ends.

Application
Primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, installed in raceways, duct, and open air, aerially or directly buried where permitted by NEC.

Standards
UL 1072: Medium Voltage Power Cables.
ICEA S-93-639/NEMA WC74: 5 - 46 kV Shielded Power Cables.
ICEA S-97-682: Standard for Utility Shielded. Power Cables Rated 5 - 46 kV.
AEIC CS8: Specification for Extruded Dielectric, Shielded Power Cables Rated 5 - 46 kV.

Specifications
Maximum operating voltage: 5 kV to 35 kV 100% and 133% IL.
Maximum conductor operation temperatures: Wet and dry locations: Normal: 105 °C, Emergency: 140 °C, Short Circuit: 250 °C

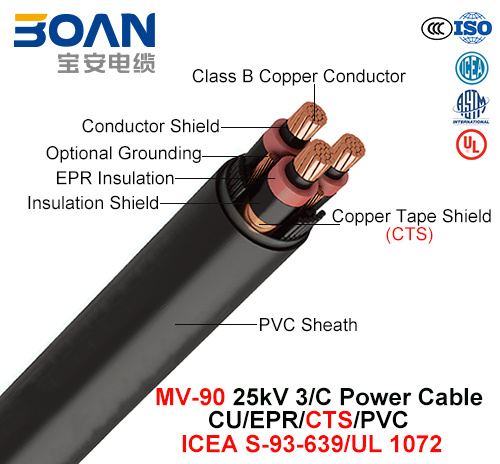

Engineering Information
1. Conductor: Soft annealed uncoated copper compacted Class B per ASTM B496 or hard drawn Aluminum-1350 compacted Class B per ASTM B400.
2. Conductor Shield: Semi conducting cross-linked polyethylene (XLPE).
3. Insulation: Thermoset ethylene propylene rubber (EPR). On request, Amorphous EPR.
4. Insulation Shield: Semi conducting cross-linked polyethylene (XLPE).
5. Phase ID: Colored strings (black, red and blue yarns.)
6. Metallic Shield: Soft annealed uncoated copper tape, 5 mil thick, 25% minimum overlap.
7. Grounding (Optional): One or three soft annealed bare copper or covered conductors cabled with phase conductors.
8. Assembly: Conductors cabled with non hygroscopic fillers, as required and binder tape.
9. Jacket: Black sunlight resistance and flame retardant polyvinyl chloride (PVC) compound.


100% Insulation Levels (260 mil)							133% Insulation Levels (320 mil)
Size	Number of Strands	Conductor Nominal	Jacket Thickness	Approximate Outside Diameter	Approximate Net Weight		Jacket Thickness	Approximate Outside Diameter	Approximate Net Weight
					Copper	Aluminum			Copper	Aluminum
AWG of kcmil		in	mil	in	lb/kft		mil	in	lb/kft
1	19	0.3	110	2.33	2970	2414	-	-	-	-
1/0	19	0.34	110	2.41	3290	2588	110	2.73	3886	3184
2/0	19	0.38	110	2.5	3675	2791	140	2.88	4469	3585
3/0	19	0.42	110	2.65	4272	3157	140	2.98	5002	3887
4/0	19	0.48	140	2.83	5032	3628	140	3.10	5613	4209
250	37	0.52	140	2.95	5622	3961	140	3.22	6224	4563
300	37	0.57	140	3.06	6264	4272	140	3.33	6885	4894
350	37	0.62	140	3.16	6902	4576	140	3.42	7541	5216
400	37	0.66	140	3.25	7570	4914	140	3.52	8226	5570
500	37	0.74	140	3.41	8793	5472	140	3.68	9479	6158
600	61	0.81	140	3.6	10059	6072	140	3.94	10961	6974
750	61	0.91	140	3.88	11993	7016	140	4.15	12761	7784
