Mv-90, Power Cable, 8 Kv, 3/C, Cu/XLPE/Cts/PVC (ICEA S-93-639/NEMA WC71/UL 1072)

Prod Model:	MV-90
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	8 Kv
Number Of Cores:	3
Section:	6 AWG-1000 Mcm
Class Of Conductor:	B
Type Of Shield:	Copper Tape
Voltage:	Low and Medium Voltage Cable
Insulation Material:	XLPE
Current:	DC Cable
Application:	Power Station
Certification:	CCC
Model:	Mv-90
Brand:	Boan

Product Description

MV-90, Power Cable, 8 KV, 3/C, Cu/XLPE/CTS/PVC (ICEA S-93-639/NEMA WC71/UL 1072)

Features

UL Listed as MV-90. Rated as Sunlight Resistance for CT use, 1/0 AWG and larger. Oil Resistance I jacket. True Triple extrusion system and closed handling raw materials system, to eliminate any contact with ambient, until extrusion process ends.

Application

Primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, installed in raceways, duct, and open air, aerially or directly buried where permitted by NEC.

Standards

UL 1072: Medium Voltage Power Cables.
ICEA S-93-639/NEMA WC74: 5 kV - 46 kV Shielded Power Cables.
ICEA S-97-682: Standard for Utility Shielded Power Cables Rated 5 kV- 46 kV.
AEIC CS8: Specification for Extruded Dielectric, Shielded Power Cables Rated 5 kV - 46 kV.

Specifications

Maximum operating voltage: 5 kV to 35 kV 100% and 133% IL
Maximum conductor operation temperatures:
Wet and dry locations: Normal: 90 °C, Emergency: 130 °C, Short Circuit: 250 °C

Engineering Information

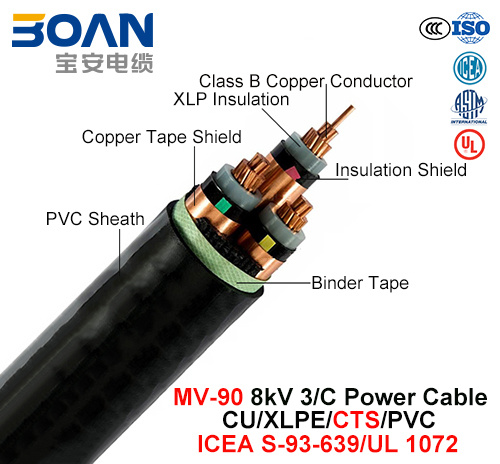

1. Conductor: Soft annealed uncoated copper compacted Class B per ASTM B496 or hard drawn Aluminum-1350 compacted Class B per ASTM B400.
2. Conductor Shield: Semi conducting cross-linked polyethylene (XLPE).
3. Insulation: Thermoset crosslinked polyethylene (XLPE).
4. Insulation Shield: Semi conducting cross-linked polyethylene (XLPE).
5. Metallic Shield: Soft annealed uncoated copper tape, 5 mil thick, 25% minimum overlap.
6. Assembly: Conductors cabled with non-hygroscopic fillers, as required and binder tape.
7. Jacket: Black sunlight resistance and flame retardant thermoplastic polyvinyl chloride (PVC) compound.

100% Insulation Levels (115 mil)							133% Insulation Levels (140 mil)
Size	Number of Strands	Conductor Nominal	Jacket Thickness	Approximate Outside Diameter	Approximate Net Weight		Jacket Thickness	Approximate Outside Diameter	Approximate Net Weight
					Copper	Aluminum			Copper	Aluminum
AWG of kcmil		in	mil	in	lb/kft		mil	in	lb/kft
6	7	0.17	80	1.34	1007	832	80	1.45	1112	938
4	7	0.21	80	1.43	1230	953	80	1.55	1341	1064
2	7	0.27	80	1.55	1562	1122	80	1.67	1680	1240
1	19	0.30	80	1.62	1820	1264	110	1.80	2053	1498
1/0	19	0.34	110	1.76	2204	1502	110	1.88	2338	1636
2/0	19	0.38	110	1.85	2575	1691	110	1.96	2714	1830
3/0	19	0.42	110	1.95	3000	1885	110	2.06	3145	2030
4/0	19	0.48	110	2.06	3524	2119	110	2.18	3675	2271
250	37	0.52	110	2.19	4004	2343	110	2.30	4163	2502
300	37	0.57	110	2.29	4619	2627	110	2.40	4784	2793
350	37	0.62	110	2.39	5198	2872	110	2.50	5369	3043
400	37	0.66	110	2.48	5765	3110	110	2.65	6034	3378
500	37	0.74	140	2.76	7200	3880	140	2.88	7397	4077
600	61	0.81	140	2.95	8313	4326	140	3.07	8521	4535
750	61	0.91	140	3.16	10022	5045	140	3.27	10243	5266
1000	61	1.06	140	3.49	12770	6136	140	3.60	13011	6376
