Mysun Single Core Fire Resistant, 300V XLPE Electrical Wire

Name: Mysun Single Core Fire Resistant, 300V XLPE Electrical Wire
Brand: all-electronics-online.com
SKU: 831211695
Availability: InStock
Rating: 4.3 (51 reviews)

Price:	US $ 0.1-0.2/Meter
Min Order:	6100/Meter
Pay Type:	Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	3266
Type:	Insulated
Conductor Type:	Stranded
Insulation Material:	XLPE
Certification:	CSA, Iatf16949
Application:	Home Application,LED Lamp, Oven,Machine
Conductor Material:	Tinned Copper
Sheath Material:	XLPE
Range Of Application:	Home Application,LED Lamp, Oven,Machine
Brand:	Mysun

Product Description

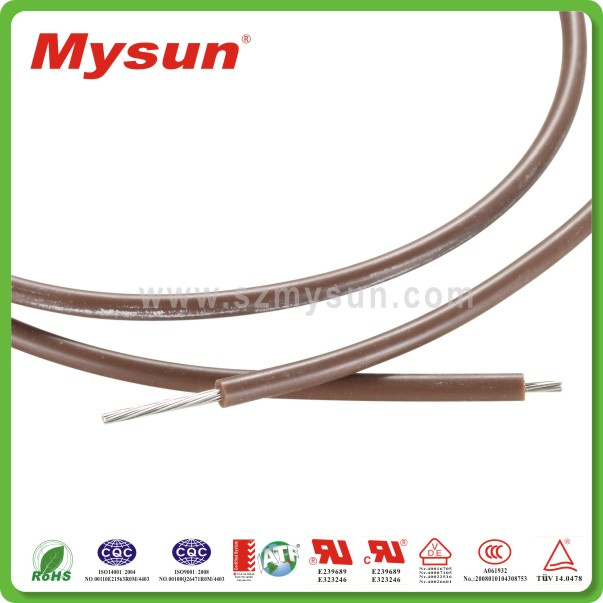

Mysun Single Core Fire Resistant, 300V XLPE Electrical Wire

Conductor			Insulation		Max.Cond Resistance (Ω/KM)	Unit length (M)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.Cond Resistance (Ω/KM)	Unit length (M)(Ft)
32	7/0.08	0.24	0.39	1.02	563	610/2000
30	7/0.10	0.3	0.39	1.08	361	610/2000
28	7/0.127	0.38	0.39	1.16	227	610/2000
26	7/0.16	0.48	0.39	1.26	143	305/1000
24	11/0.16	0.6	0.39	1.38	89.3	305/1000
22	17/0.16	0.76	0.39	1.54	56.4	305/1000
20	21/0.18	0.94	0.39	1.72	35.2	305/1000
18	16/0.254	1.18	0.39	1.96	22.2	305/1000
16	26/0.254	1.5	0.39	2.28	14	305/1000
14	41/0.254	1.89	0.39	2.67	8.78	305/1000
12	65/0.254	2.37	0.39	3.15	5.53	305/1000
10	105/0.254	3.02	0.39	3.8	3.476	305/1000

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
