Mysun Single Core PVC Electrical Wire with Series Copper Conductors

Name: Mysun Single Core PVC Electrical Wire with Series Copper Conductors
Brand: all-electronics-online.com
SKU: 832682055
Availability: InStock
Rating: 4.3 (107 reviews)

Price:	US $ 0.1-0.6/Meter
Min Order:	6100/Meter
Pay Type:	Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	1007
Type:	Insulated
Conductor Type:	Stranded
Insulation Material:	PVC
Certification:	CSA, Iatf16949
Application:	Home Application,LED Lamp, Oven,Machine
Conductor Material:	Tinned Copper
Range Of Application:	Home Application,LED Lamp, Oven,Machine
Brand:	Mysun

Product Description

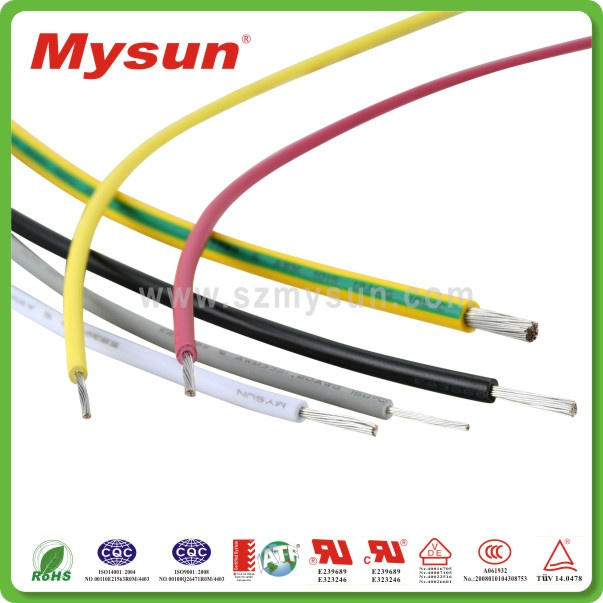

MYSUN Single Core PVC Electrical Wire with series copper conductors

Specification:

Retad voltage	300V
Retad temperature	80°C
Insulation	PVC
Conductor	Bare copper wire
Standards	UL758/UL1581
Application	home appliances/ leds/industrial machine
M/FT	610/1000
Size	AWG32-AWG16
Color	white,black,red,brown,yellow,blue,green,transparent etc.

Conductor			Insulation		Max.Cond Resistance (Ω/KM)	Unit length (M)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.Cond Resistance (Ω/KM)	Unit length (M)(Ft)
32	7/0.08	0.24	0.4	1.04	≤542	610/1000
30	7/0.10	0.30	0.4	1.00	≤347	610/1000
28	7/0.127	0.38	0.4	1.18	≤218	610/1000
26	7/0.16	0.49	0.4	1.29	≤138	610/1000
24	11/0.16	0.61	0.4	1.41	≤85.9	610/1000
22	17/0.16	0.76	0.4	1.56	≤54.3	610/1000
20	21/0.18	0.95	0.4	1.75	≤33.9	610/1000
18	34/0.18	1.21	0.4	2.01	≤21.4	610/1000
16	26/0.254	1.50	0.4	2.3	≤13.5	305/1000

Payment terms:

LC, TT, Western Union, Money Gram and PayPal

Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days

About us:

Shenzhen MYSUN Insulation Materials Co. Ltd. is a comprehensive enterprise integrated with manufacture, distribution and trade. We specialize in production of all sorts of wire of high temperature and connecting which have been subjected to test of UL, cUL, VED, CE, CCC and SGS, and supply enterprises such as home appliance, electronics, lighting and so on with connecting wiring harness and processing service.

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
