| Prod Model: |
N-PSW12KW |
| Product Name: |

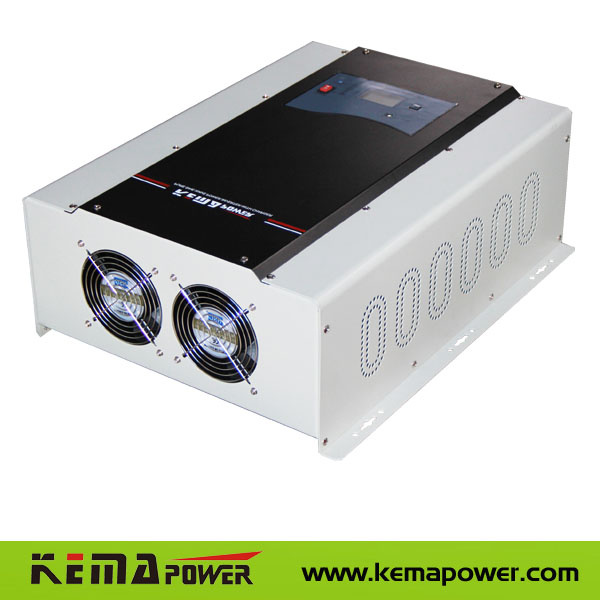

N-Psw12kw Low Frequency Sine Wave Home UPS |
| Power: |
12kw |
| Power Factor: |
0.9~1.0 |
| Static Power Capacity: |
Max 12W |
Product Description
N-PSW12KW Low Frequency Sine wave Home UPS * I/P: 220VAC or 110VAC
* O/P:220VAC or 110VAC ± 10%
* Capacity:12KW
* Output: PF 0.9-1.0, Pure sine wave
* Stand By Function
* Transfer Time <10 ms(typical)
* DC Voltage: 48VDC or 96VDC
* Bat.:External battery
Key Features:1.low frequency pure sine wave with Charger(HOME UPS)
2.Power saver Function ( Stand by)
3.High Power Factor0.9-1.
4.low DC input, 8KW,10KW, 12KW , 48VDC or 96VDC
5.adjustable charge current,50A-100Amp
6.Transfer Time 10ms. Computer will not shut off when Mains off suddenly.
7.Digital control Three stage charger, improve battery life
8.Battery Selector for charge of different battery
9.Full protection,short circuit,Overload,over Temp.,
10.Battery low/high Protection
11.LED and LCD display and alarm
12.Wall mounting
13.Rs232 communication function optional.
14.SNMP Net Agent function optional.
15.Remote control cable optional
16.LCD Display is optional
17.Adjustable charge current is optionTechnical Specifications | Item | Model | N-PSW12K |
| Capacity | VA / Watts | 12KVA/12KW | 12KVA/12KW |
| Surge rating | 36KVA | 36KVA |
| Efficiency | >95% under AC mode, >80% under DC mode |
| Power Factor | 0.9~1.0 |
| Input | Normal voltage | 230VAC |
| Voltage range | 154VAC±4% ~280VAC |
| Frequency range | 40Hz~80HZ ±0.3 (Auto detection to 50/60HZ ) |
| Output | Normal voltage | 230VAC |
| Frequency (Hz) | 50Hz/60HZ ±0.3 Hz |
| Wave form | Pure Sine Wave |
| bypass without Battery | yes |
| Transfer Time | 10 ms (typical) |
| Overload and Alarm | DC Mode(SMPS load) | (110%(125%Load>150% ±10% for 20s, beep 1 time/Sec |
| AC Mode(SMPS load) | by breaker |
| Protection | Overload | Current limit under DC mode ,Circuit breaker under AC mode |
| Battery Protection | Over charge, Over discharge,DC Breaker,Alarm |
| Over Temperature | shut off after 30S while heat sink > 105 ºC , Variable speed fan,LED lighting and alarm |
| Back-Feed Protection | yes |
| short Circuit. | by breaker.Faul after 10 secs |
| Battery/Charger | AC input | 164~263VAC |
| DC input (external Battery) | 48VDC | 96VDC |
| Charge Voltage | for 12VDC system,Boost voltage 14-15.5V selectable for different Battery. The others are multiple |
| Max Charger Current | 100A | 50A |
| Charge Manage | digital control,Three stage charger |
| Display | LED | Line On/ Inverter on / Charger / Fault / Power Saver on |
| LCD | Working mode / input and output VAC HZ / Charger VDC Amp / Battery VDC % / Load % / Temp / Fault Code |
| Audible Alarm | Battery Low,Battery High,Over Temp. Over load,Fail,Over charge |
| Optional | RS232 Communication,SNMP Net Agent,Remote Control |
| Power Saver | < 75W, when enabled.loading checking 2 time/sec. |
| Working Environment | Temperature | 0°C to 40°C |
| Noise | 60dB max |
| Humidity | 5% to 95% |
