N+X Modular Online UPS Power System, 60kVA UPS System,
| Price: |
US $ 1000-10000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
PX060/20B Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
2years |
| Capacity: |
60kVA |
| Hot-Swappable Battery: |
Yes |
| Static Maintenance Switch: |
Yes |
| Intelligent Battery Management: |
Yes |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Jetpower |
Product Description

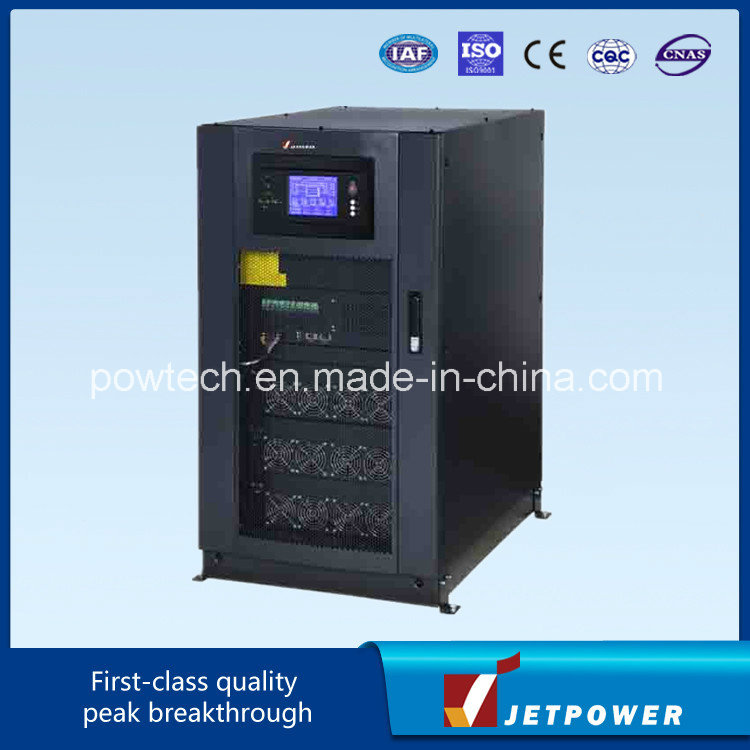

60KVA N+X Modular Online UPS Power System
10-60KVA (380V/400V/415V)
6-36KVA (200V/208V/220V)
Description
PX060/20B series is modular online UPS with hot-swappable battery. The single cabinet power rating covers from 10KVA to 60KVA which delivers the best of combination of reliability, hot-swappable and flexibility.
With intelligent battery protection and management technology, RM060/20B realized a compact total power solution which is easy for installation, maintenance and power expansion. This model is exactly the best choice for medium power applications.
Features
(1) Modular design with swappable battery package
(2) Monitor system for battery
(3) Integrated IGBT module with improved performance and reduced size
(4) Easy for installation and maintenance
(5) Easy for power expansion and backup time expansion.
(6) Intelligent protection technology for safe and reliable hot swappable battery package of the system
(7) Smart charging management system, Intelligently control the whole process of the charging and discharging, effectively improve the life time of the battery
(8) Battery cold start, UPS can be powered on from the battery without utility.
(9) Friendly human machine interface with touch screen
| MODEL | 060/20B | 045/15B | 030/10B | L036/12B | L030/10B | L018/06B |
| Capacity | 10-60KVA | 6-36KVA |
| Power Module Type | PM20/PM15/PM10 | PML12/PML10/PML06 |
| INPUT |
| Phase | 3 Phases + Neutral + Ground |
| Voltage | 380V/400V/415V(line to line) | 200V/208V/220V(line to line) |
| Frequency | 50/60Hz |
| Power Factor | >0.99 |
| THDi | THDi<3% @ 100% linear load |
| Voltage Range | -20% ~ 25% | -20% ~ 25% |
| Frequency Range | 40Hz ~ 70Hz |
| OUTPUT |
| Voltage Regulation | ±1%(Balance load); ±1.5%(Unbalance load) |
| THDu | THD<1.5%(linear load ),THD<5%(None linear load) |
| Power Factor | 0.8 |
| Crest Ratio | 3:1 |
| Overload Capability | 110% for 1 hour; 125% for 10 minutes ;150% for1 minute; >150% for 200ms |
| BATTERY |
| Voltage | ±240VDC | ±120VDC |
| Charge Power | 20%*System Power |
| Charge Power Precision | ±1% |
| SYSTEM |
| System Efficiency | Normal mode:95%; ECO mode:98%;
Battery mode:95% | Normal mode:92%; ECO mode:98%;
Battery mode:90% |
| Display | LCD+LED, Touch Screen +Keyboard |
| IP Class | IP20 |
| Interface(Communication Port) | RS232,RS485,Dry contacts, SNMP card, EPO,Generator interface |
| Installation/Connection | Top or bottom cable connection |
| Operation/Storage Temperature | 0 ~ 40 ºC /-40 ~ 70 ºC |
| Relative Humidity | 0 ~ 95%(non-condensing) |
| Noise | 55dB(1 meter away) |
| PHYSICAL |
| Weight | Cabinet | 200Kg; |
| Power Module | PM20:22Kg; PM15:21Kg; PM10:20Kg | PML12:22Kg; PML10:21Kg; PML06:20Kg |
| Battery Package | 10Kg(without battery) |
| Dimension (W*D*H) | Cabinet | 600*1020*2000 |
| 10-Slot cabinet: 600*900*2000; 6-Slot cabinet: 600*900*1600; 3-Slot cabinet:600*900*1100 |
| Power Module | PM20/PM15/PM10:440*590*134 | PML12/PML10/PML06:440*590*134 |
| Battery Package | 120*824*177 |
