Na2xrhx LSZH Armoured Power Cables
| Price: |
US $ 0.3-26/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
NA2XRHX |
| Rated Voltage: |
0.6/1 Kv |
| Class Of Conductor: |
1,2 |
| Number Of Core: |
1-48 |
| Refer Standard: |
IEC 60502-1,BS 6724 |
| Type Of Armor: |
Galvanized Steel Wire/Al Wire |
| Type: |
Insulated |
| Application: |
Power Networks, Outdoor and Indoor |
| Conductor Material: |
Aluminum |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Conductor Type: |
Stranded or Solid |
| Sheath Material: |
LSZH |
| Range Of Application: |
Power Networks, Underground, Outdoor and Indoor |
| Brand: |
Jl |
Product Description

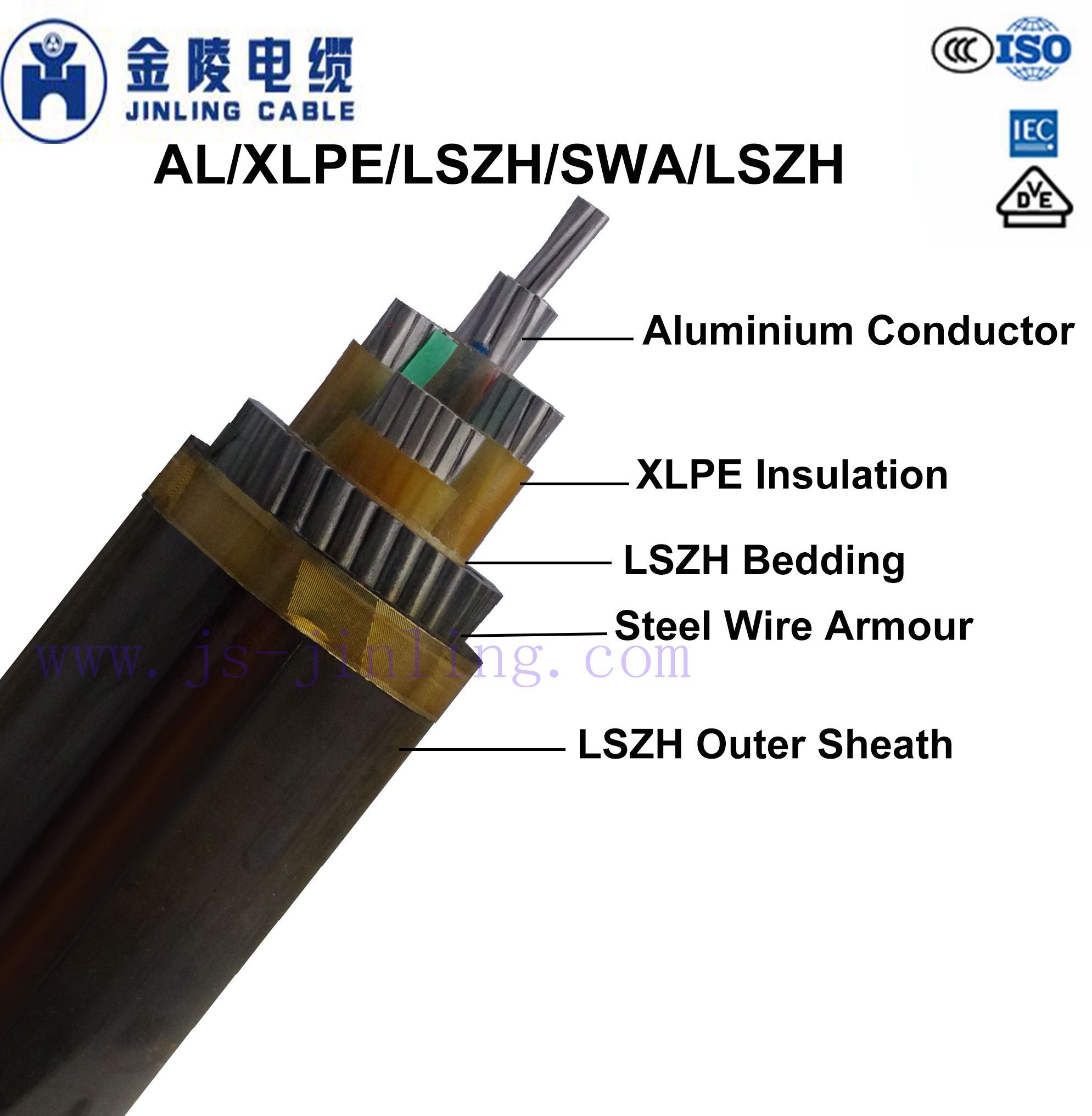

Construction:
Stranded Copper Conductor, XLPE Insulation,LZSH Bedding,Steel/AL Wire Armour, LZSH SheathedApplication:Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment. Technical Data:Conductor:solid Aluminum Conductor, Class 1 or Strand Conductor, Class 2Working voltage:0.6/1KV
Test Voltage: 4000VWorking Temperature:-5-90 º CBending radius 1.5mm² to 16mm²: 6 x overall diameter
25mm² and above: 8 x overall diameter
Standard:IEC60502-1,BS 6724
Flame retardant IEC60332 part 1, BS4066 part 1
Halogen free IEC 60754, EN 50267
Smoke density IEC 61034, EN50268

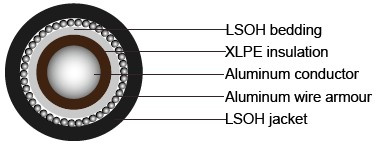

Cable Parameter:Single-core 0. 6/1KV LSZH Armoured Power Cables
| Nominal Cross-sectional Area | Nominal Insulation Thickness | Nominal Bedding Thickness | Nominal Alum Wire Armor dia. | Nominal Sheath Thickness | Approx. Overall Diameter | Aprrox Weight |
| mm² | mm | mm | mm | mm | mm | kg/km |
| 1x50 | 1 | 0.8 | 0.9 | 1.5 | 16.3 | 460 |
| 1x70 | 1.1 | 0.8 | 1.25 | 1.5 | 18.7 | 560 |
| 1x95 | 1.1 | 0.8 | 1.25 | 1.6 | 20.6 | 690 |
| 1x120 | 1.2 | 0.8 | 1.25 | 1.6 | 22.1 | 800 |
| 1x150 | 1.4 | 1 | 1.6 | 1.7 | 25.2 | 970 |
| 1x185 | 1.6 | 1 | 1.6 | 1.8 | 27.4 | 1150 |
| 1x240 | 1.7 | 1 | 1.6 | 1.8 | 29.9 | 1380 |
| 1x300 | 1.8 | 1 | 1.6 | 1.9 | 32.4 | 1640 |

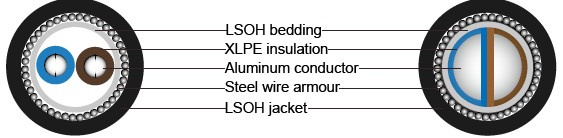

Two-core 0. 6/1KV LSZH Armoured Power Cables
| Nominal Cross-sectional Area | Nominal Insulation Thickness | Nominal Bedding Thickness | Nominal Steel Wire Armor dia. | Nominal Sheath Thickness | Approx. verall Diameter | Aprrox Weight |
| mm² | mm | mm | mm | mm | mm | kg/km |
| 2x16 | 0.7 | 0.8 | 1.25 | 1.5 | 19.1 | 650 |
| 2x25 | 0.9 | 0.8 | 1.25 | 1.5 | 22.4 | 915 |
| 2x25* | 0.9 | 0.8 | 1.25 | 1.6 | 18.7 | 1255 |
| 2x35 | 0.9 | 1 | 1.6 | 1.6 | 25.7 | 1255 |
| 2x35* | 0.9 | 1 | 1.6 | 1.7 | 21.4 | 1430 |
| 2x50* | 1 | 1 | 1.6 | 1.8 | 23.5 | 1430 |
| 2x70* | 1.1 | 1 | 1.6 | 1.9 | 26.3 | 1780 |
| 2x95* | 1.1 | 1.2 | 2 | 2 | 30 | 1950 |

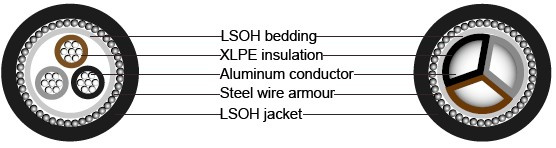

*Solid shaped conductor (class 1)Three-core 0. 6/1KV LSZH Armoured Power Cables
| Nominal Cross-sectional Area | Nominal Insulation Thickness | Nominal Bedding Thickness | Nominal Steel Wire Armor dia. | Nominal Sheath Thickness | Approx. verall Diameter | Aprrox Weight |
| mm² | mm | mm | mm | mm | mm | kg/km |
| 3x16 | 0.7 | 0.8 | 1.25 | 1.6 | 20.3 | 760 |
| 3x25 | 0.9 | 1 | 1.6 | 1.7 | 22.5 | 1020 |
| 3x25* | 0.9 | 1 | 1.6 | 1.7 | 24.9 | 1020 |
| 3x35 | 0.9 | 1 | 1.6 | 1.8 | 24.4 | 1200 |
| 3x35* | 0.9 | 1 | 1.6 | 1.8 | 27.3 | 1200 |
| 3x50* | 1 | 1 | 1.6 | 1.8 | 26.8 | 1380 |
| 3x70* | 1.1 | 1 | 1.6 | 1.9 | 30.2 | 1750 |
| 3x95* | 1.1 | 1.2 | 2 | 2.1 | 34.8 | 2420 |
| 3x120* | 1.2 | 1.2 | 2 | 2.2 | 37.8 | 2820 |
| 3x150* | 1.4 | 1.4 | 2.5 | 2.3 | 42.7 | 3660 |
| 3x185* | 1.6 | 1.4 | 2.5 | 2.4 | 46.7 | 4350 |
| 3x240* | 1.7 | 1.4 | 2.5 | 2.6 | 51.5 | 5220 |
| 3x300* | 1.8 | 1.6 | 2.5 | 2.7 | 56.2 | 6200 |
*Solid shaped conductor (class 1)Four-core 0. 6/1KV LSZH Armoured Power Cables
| Nominal Cross-sectional Area | Nominal Insulation Thickness | Nominal Bedding Thickness | Nominal Steel Wire Armor dia. | Nominal Sheath Thickness | Approx. verall Diameter | Aprrox Weight |
| mm² | mm | mm | mm | mm | mm | kg/km |
| 4x16 | 0.7 | 0.8 | 1.25 | 1.6 | 21.8 | 980 |
| 4x25 | 0.9 | 1 | 1.6 | 1.7 | 26.9 | 1220 |
| 4x25* | 0.9 | 1 | 1.6 | 1.7 | 24.6 | 1220 |
| 4x35 | 0.9 | 1 | 1.6 | 1.8 | 29.5 | 1420 |
| 4x35* | 0.9 | 1 | 1.6 | 1.8 | 27 | 1420 |
| 4x50* | 1 | 1 | 1.6 | 1.9 | 30 | 1770 |
| 4x70* | 1.1 | 1.2 | 2 | 2.1 | 35.3 | 2500 |
| 4x95* | 1.1 | 1.2 | 2 | 2.2 | 39 | 2980 |
| 4x120* | 1.2 | 1.4 | 2.5 | 2.3 | 44 | 3950 |
| 4x150* | 1.4 | 1.4 | 2.5 | 2.4 | 47.9 | 4600 |
| 4x185* | 1.6 | 1.4 | 2.5 | 2.6 | 52.7 | 5430 |
| 4x240* | 1.7 | 1.6 | 2.5 | 2.7 | 58.5 | 6660 |
| 4x300* | 1.8 | 1.6 | 2.5 | 2.9 | 63.8 | 7770 |
*Solid shaped conductor (class 1)
