Na2xs (F) 2y, 18/30 Kv Power Cable, 1/C, Al/XLPE/Cws/Cts/PE (HD 620 10C/VDE 0276-620)

Prod Model:	NA2XS(F)2Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacture Standard:	HD 620 10c/VDE 0276-620
Rated Voltage:	18/30 Kv
Size:	35-500 mm2
Number Of Cores:	1
Conductor Class:	2
Metallic Screen:	Copper Wire Screen
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC Cable
Insulation Material:	XLPE
Certification:	CCC
Sheath Material:	PVC
Wire Core Material:	Aluminum
Model:	Na2xs(F)2y
Brand:	Boan

Product Description

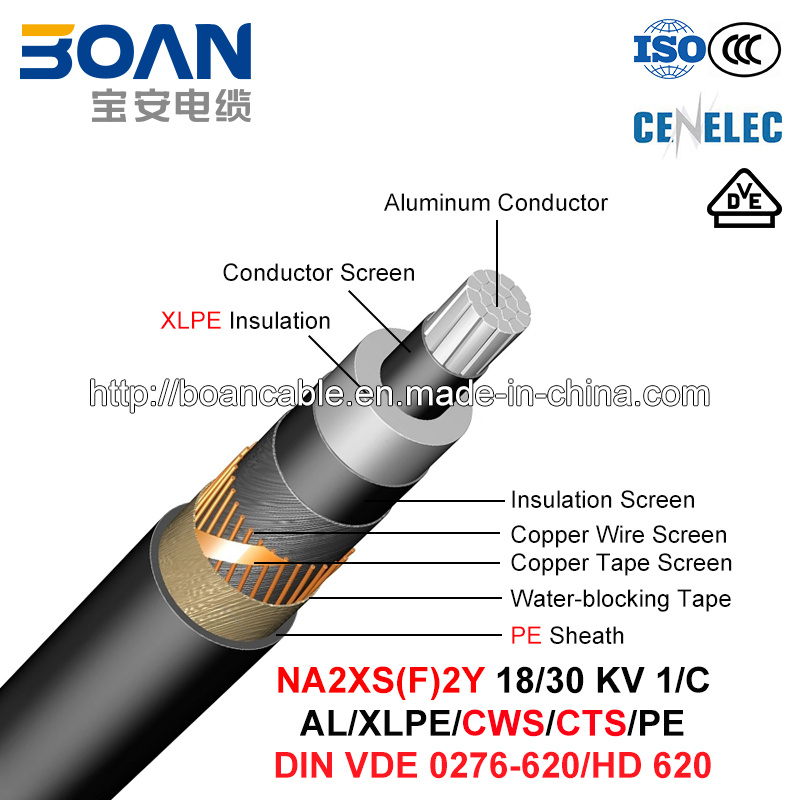

NA2XS(F)2Y, 18/30 kV, 1/C, AL/XLPE/CWS/PE (HD 620 10C/VDE 0276-620)
Application:
The cables are suitable for installation indoors, outdoors, in the ground and in water. Installation to be carried out in the ground or in a cable channel.

Properties:
Rated voltage                                                          18/30 kV
Test voltage                                                             63 kV
Maximal operating conductor temperature       90°C
Maximal short-circuit temperature                      250°C
Operating temperature range                             -35°C - +90°C
Minimal storage temperature                             -35°C
Minimal temperature for laying                           -20°C
Colour of insulation                                               uncoloured
Colour of sheath                                                    black
Flame retardant                                                      no


Number of cores and cross-section	Shape of conductor	Conductor diameter (approx.)	Nominal insulation thickness	Diameter over insulation (approx.)	Nominal thickness sheath	Outer diameter (approx.)	Bending radius (min.)	Cable mass (approx.)
mm2		mm	mm	mm	mm	mm	mm	kg/km
1x50/16	RM	8.3	8.0	25.6	2.5	34	510	1008
1x70/16	RM	9.8	8.0	27.1	2.5	36	540	1113
1x95/16	RM	11.3	8.0	28.6	2.5	37	555	1237
1x120/16	RM	12.8	8.0	30.1	2.5	39	585	1355
1x150/25	RM	14.2	8.0	31.5	2.5	40	600	1562
1x185/25	RM	15.8	8.0	33.1	2.5	42	630	1721
1x240/25	RM	18.1	8.0	35.4	2.5	44	660	1955
1x300/25	RM	20.2	8.0	37.5	2.5	46	690	2203
1x400/35	RM	23.3	8.0	40.6	2.5	49	735	2693
1x500/35	RM	26.5	8.0	43.8	2.6	53	795	3120
1x630/35	RM	29.9	8.0	47.2	2.7	56	840	3617
1x800/35	RM	34.2	8.0	51.5	2.9	61	915	4300
1x1000/35	RM	38.1	8.0	55.4	3.0	67	1005	5326
1x1200/35	RM	41.2	8.0	58.5	3.2	70	1050	5728
