Na2xs (F) 2y, Water Resistant Power Cable, 6/10 Kv, 1/C, Al/XLPE/Cws/Cts/PE (HD 620 10C/VDE 0276-620)

Prod Model:	NA2XS(F)2Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacture Standard:	HD 620 10c/VDE 0276-620
Number Of Cores:	1
Conductor Class:	2
Rated Voltage:	6/10 Kv
Size:	50-800 mm2
Type Of Metallic Screen:	Copper Wire
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC Cable
Insulation Material:	XLPE
Certification:	CCC
Sheath Material:	PE
Wire Core Material:	Aluminum
Model:	Na2xs(F)2y
Brand:	Boan

Product Description

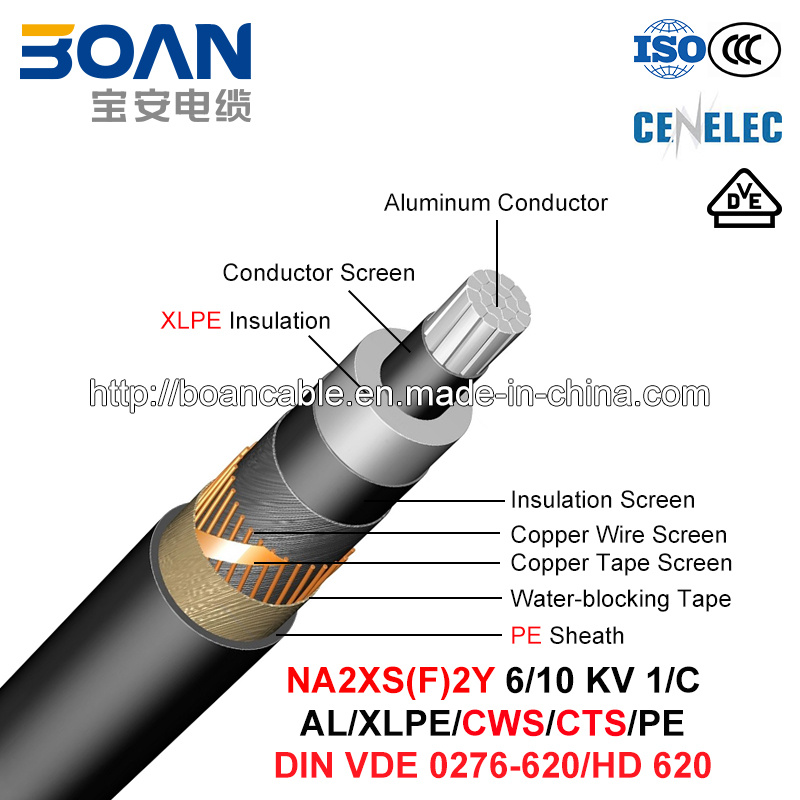

NA2XS (F) 2Y, Water Resistant Power Cable, 6/10 KV, 1/C, Al/XLPE/CWS/CTS/PE (HD 620 10C/VDE 0276-620)
Application:
The cables are suitable for installation indoors, outdoors, in the ground and in water. Installation to be carried out in the ground or in a cable channel.

Properties:
Rated voltage                                                          6/10 kV
Test voltage                                                             21°C
Maximal operating conductor temperature       90°C
Maximal short-circuit temperature                      250°C
Operating temperature range                             -35°C - +90°C
Minimal storage temperature                             -35°C
Minimal temperature for laying                           -20°C
Colour of insulation                                               uncoloured
Colour of sheath                                                    black
Flame retardant                                                      no


Number of cores and cross-section	Shape of conductor	Conductor diameter (approx.)	Nominal insulation thickness	Diameter over insulation (approx.)	Nominal thickness sheath	Outer diameter (approx.)	Bending radius (min.)	Cable mass (approx.)
mm2		mm	mm	mm	mm	mm	mm	kg/km
1x50/16	RM	8.3	3.4	16.4	2.5	25	375	644
1x70/16	RM	9.8	3.4	17.9	2.5	26	390	727
1x95/16	RM	11.3	3.4	19.4	2.5	28	420	830
1x120/16	RM	12.8	3.4	20.9	2.5	30	450	928
1x150/25	RM	14.2	3.4	22.3	2.5	31	465	1113
1x185/25	RM	15.8	3.4	23.9	2.5	32	480	1251
1x240/25	RM	18.1	3.4	26.2	2.5	35	525	1455
1x300/25	RM	20.2	3.4	28.3	2.5	37	555	1680
1x400/35	RM	23.3	3.4	31.4	2.5	40	600	2114
1x500/35	RM	26.5	3.4	34.6	2.5	43	645	2484
1x630/35	RM	29.9	3.4	38.0	2.5	47	705	2930
1x800/35	RM	34.2	3.4	42.3	2.6	51	765	3528
1x1000/35	RM	38.1	3.4	46.2	2.7	57	855	4422
1x1200/35	RM	41.2	3.4	49.3	2.8	59	885	4824
