Ningbo Leison Motor Co., Limited >> NEMA 08 to NEMA 23 Geared Stepper Motor, Plantary Gearbox Stepping Motor

NEMA 08 to NEMA 23 Geared Stepper Motor, Plantary Gearbox Stepping Motor

NEMA 08 to NEMA 23 Geared Stepper Motor, Plantary Gearbox Stepping Motor
Price: Negotiable/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 2/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: nema 08 to nema 23
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gearbox: Planetary Gear or Supr Gear
Ratio: 1:3 to 1:200
Motor Size: NEMA 08 to NEMA 34
Type: Electromechanical
Number Of Stator: Two-Phase
Excitation Mode: HB-Hybrid
Brand: Leison Motor

Product Description

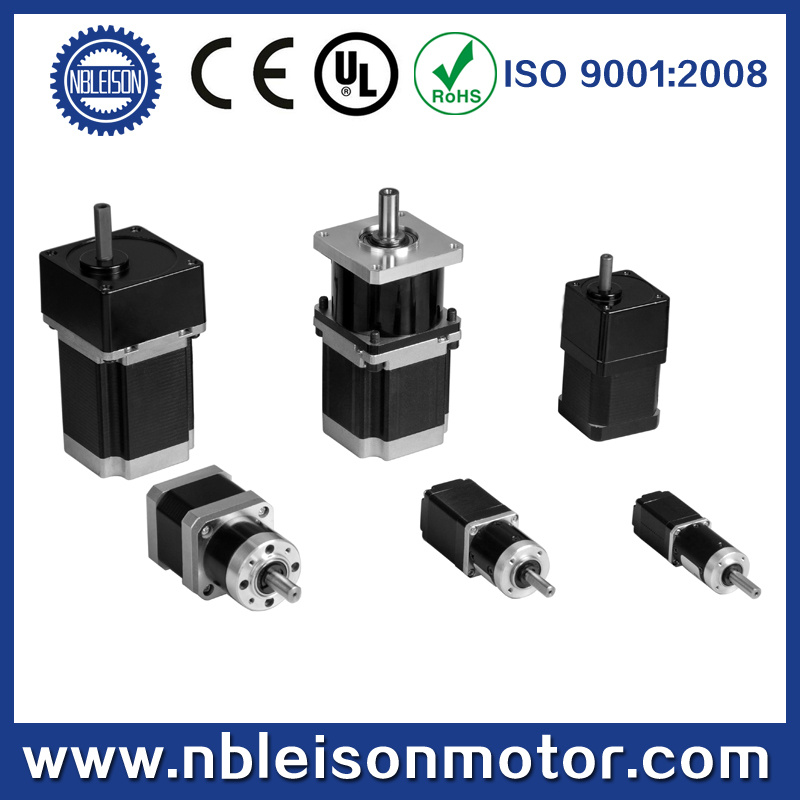

Geared stepper motor:

1 Gearbox Dia: 22mm,25mm, 28mm,32mm,36mm,40mm,42mm, 52mm,56mm
2 Stepper Dia: 20x20mm,28x28mm,35x35mm,39x39mm,42x42mm,57x57mm,86x86mm
3 Stepper Motor Length: 20mm to 76mm
4 Output shaft diameter: φ 3mm to 10mm
5 Shaft length: Can be customzied


Typical technical date of nema11, nema 17 and nema 23 stepper moktor specification:

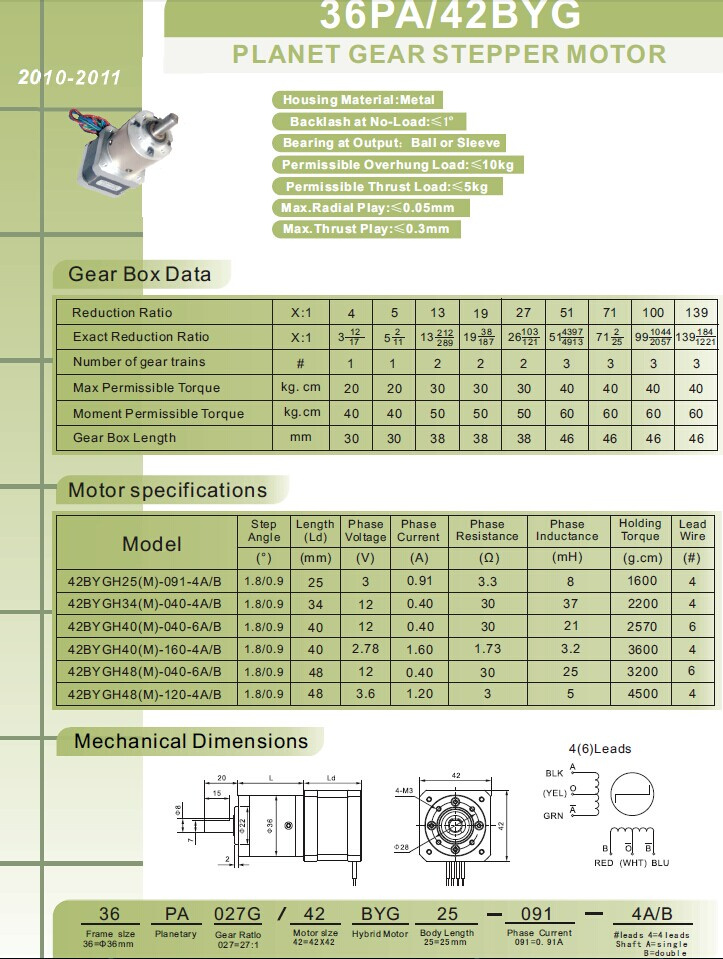

NEMA 08 geared stepper motor specification:

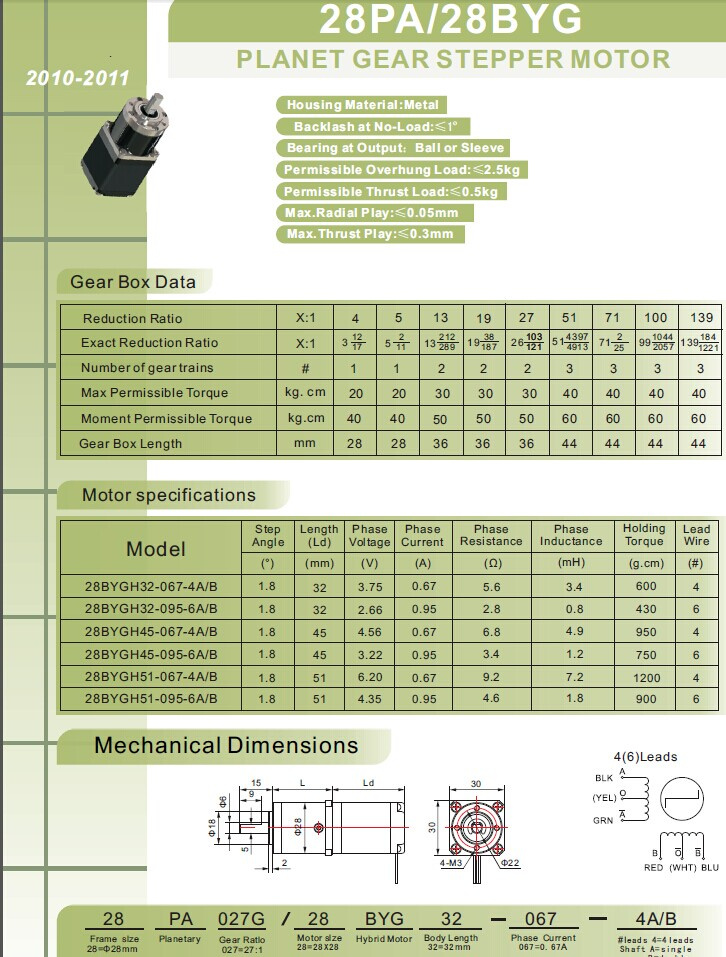

NEMA 11 geared stepper motor specification:

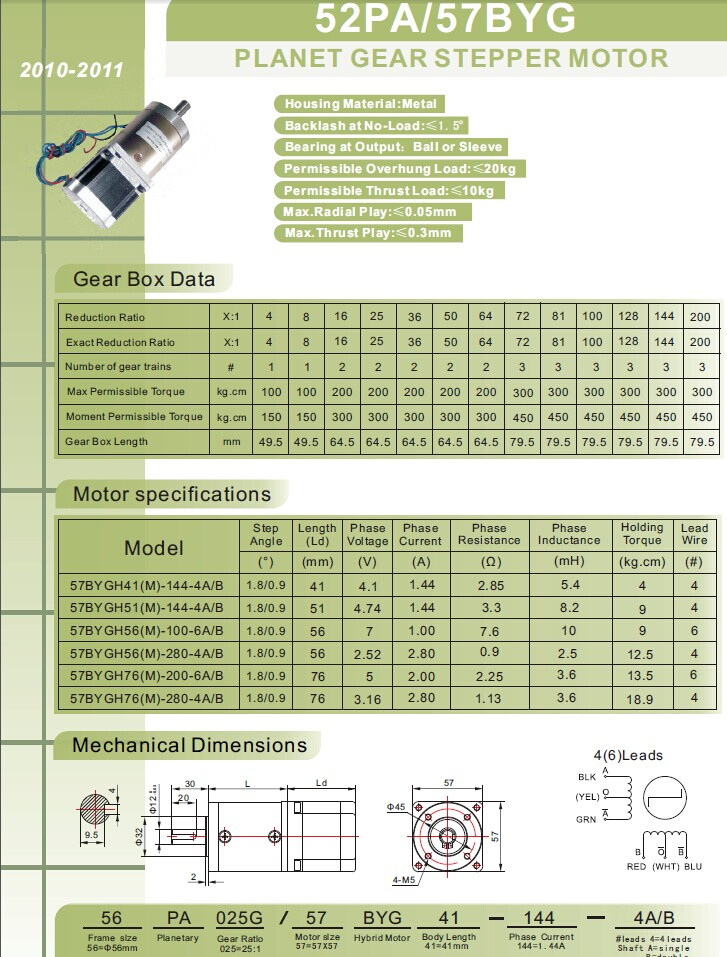

NEMA 23 geared stepper motor specification:


Please cotact with me if have any questions about our geared stepper motors
Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
