NEMA 11 Gear Reducer Stepper Motor, Stepper Motor with Reduction Gear for 3D Printer Extrude

Name: NEMA 11 Gear Reducer Stepper Motor, Stepper Motor with Reduction Gear for 3D Printer Extrude
Brand: all-electronics-online.com
SKU: 754526395
Availability: InStock
Rating: 4.8 (80 reviews)

Price:	US $ 20.8-38/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	28PA/28BYG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gearbox Type:	Planetary Gearbox
Gearbox Dia:	28mm
Ratio:	1:4 to 1:139
Applicaiton:	3D Printer, Camera and So on
Type:	Magnetic-Electric
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Brand:	Leison Motor
Certification:	CE,RoHS

Product Description

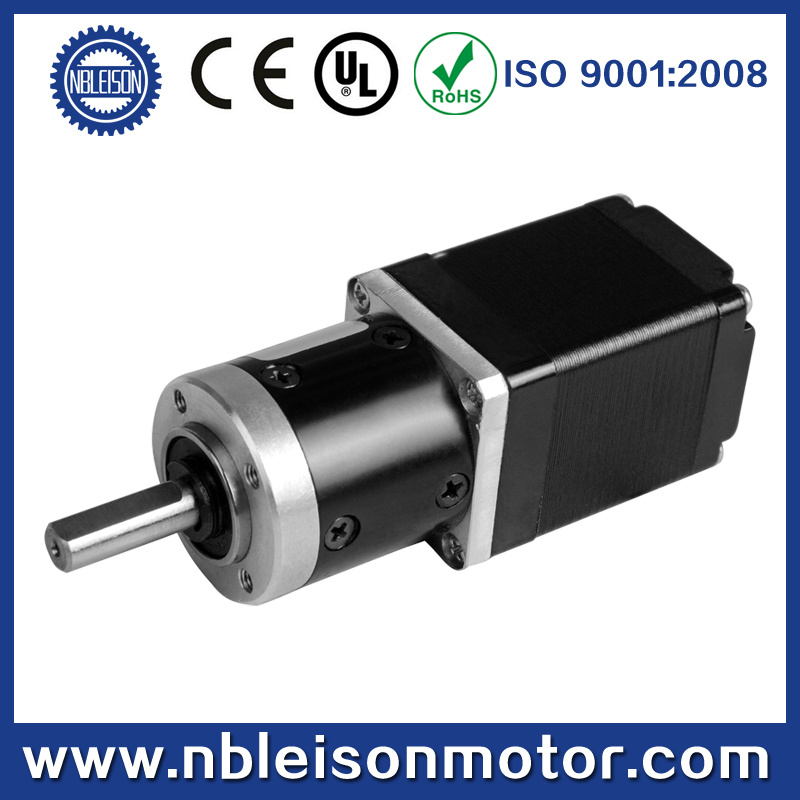

Stepper Motor With Planetary Gearbox:

Gearbox Dia: 28mm
Stepper Dia: 28mm

Specificaton:

Reduction Ratio(X: 1)	4	5	13	19	27	51	71	100	139
Number of gear trains	1	1	2	2	2	3	3	3	3
Rated output torque(kg. cm)	20	20	30	30	30	40	40	40	40

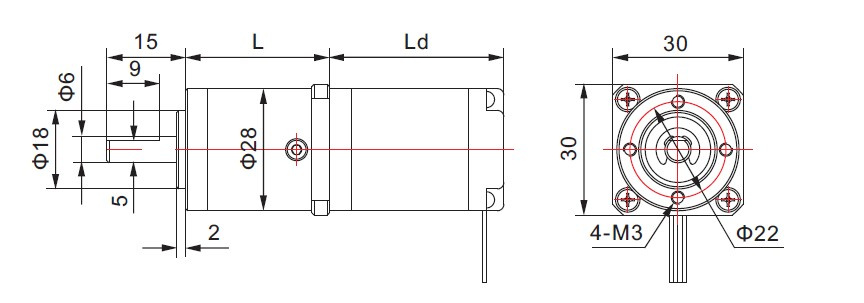

Gear Box Length(mm)	28	28	36	36	36	44	44	44	44

Stepper motor data:

Model	Step Angle	Length (Ld)	Phase Voltage	Phase Current	Phase Resistance	Phase Inductance	Holding Torque	Lead Wire
28BYGH32-067-4A/B	1.8	32mm	3.75V	0.67A	5.6Ω	3.4mH	600g. cm	4
28BYGH32-095-6A/B	1.8	32mm	2.66V	0.95A	2.8Ω	0.8mH	430g. cm	6
28BYGH45-067-4A/B	1.8	45mm	4.56V	0.67A	6.8Ω	4.9mH	950g. cm	4
28BYGH45-095-6A/B	1.8	45mm	3.22V	0.95A	3.4Ω	1.2mH	750g. cm	6
28BYGH51-067-4A/B	1.8	51mm	6.20V	0.67A	9.2Ω	7.2mH	1200g. cm	4
28BYGH51-095-6A/B	1.8	51mm	4.35V	0.95A	4.6Ω	1.8mH	900g. cm	6

Note: It's only the typical data, The motor can be customized if you have special requirment such as motor speed, torque, shaft dimension, Also motor price are for reference only, It's decide by motor's ratio and body length.

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
