NEMA 23, 57mm, 1.8degree, Low-Cost, 2-Phase Hybrid Stepper Motor, 3.5A Length 76mm

NEMA 23, 57mm, 1.8degree, Low-Cost, 2-Phase Hybrid Stepper Motor, 3.5A Length 76mm
Price: US $ 8-20/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: 57BYGH450-76-27
Number Of Stator: Two-Phase
Excitation Mode: HB-Hybrid
Function: Motor
Brand: Jianghua

Product Description

Product Description

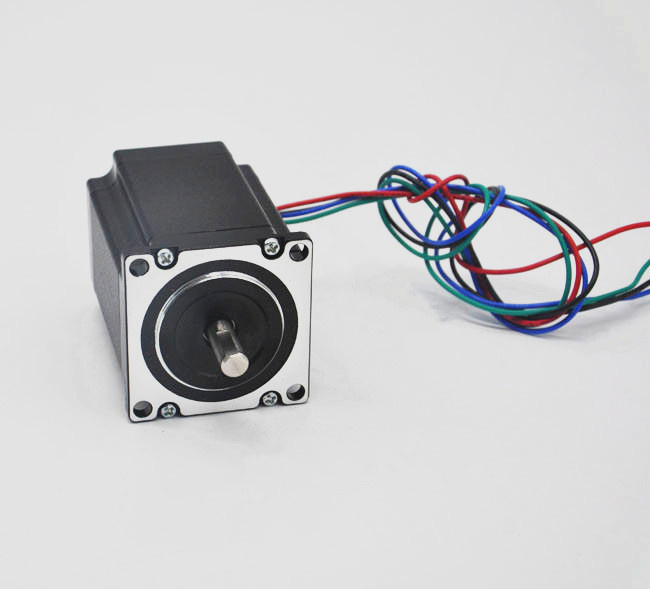

1.8degree Size 57mm Hybrid stepper motor. cnc  machine

57mm size stepper motor, NEMA23  stepping motor,

Small stepping motors, 2  phase 57mm stepper motor, Stepper motor  57mm size

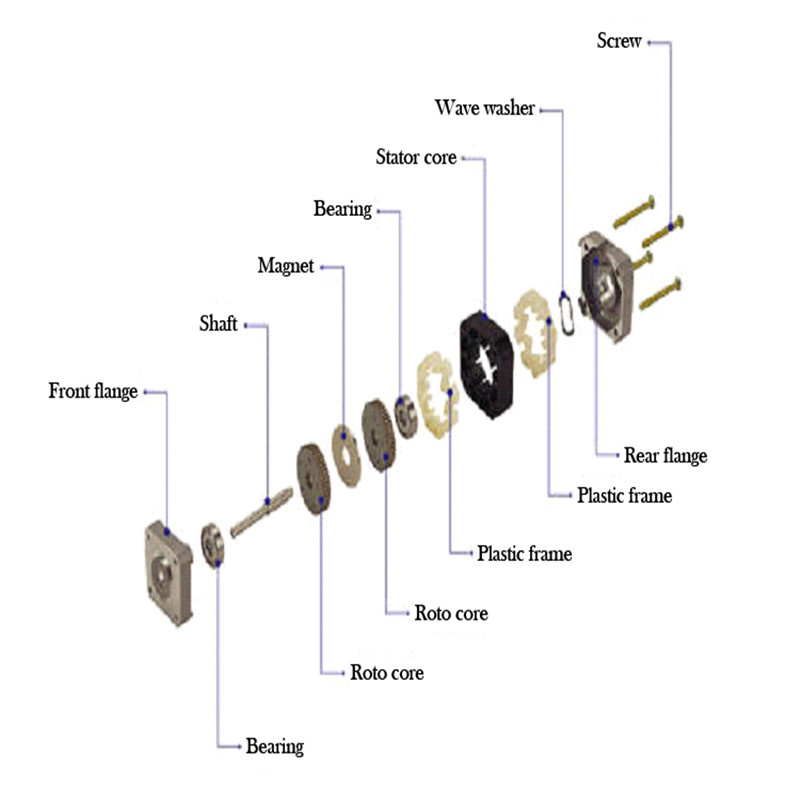

Hybrid Stepper Motors
1) CE and ROHS approved
2) We can develop customer design version

ItemsSpec.
Step Angle1.8°
Step Angle  Accuracy±5%
Resistance Accuracy±10%

Inductance Accuracy

±20%
Temperature Rise80°C Max
Ambient Temperature-20°C~+50°C
Insulation Resistance100MΩ Min., 500VDC
Dielectric Strength500VAC for one minute
Shaft Radial Play0.02Max (450g-load)
Shaft Axial Play0.08Max (450g-load)

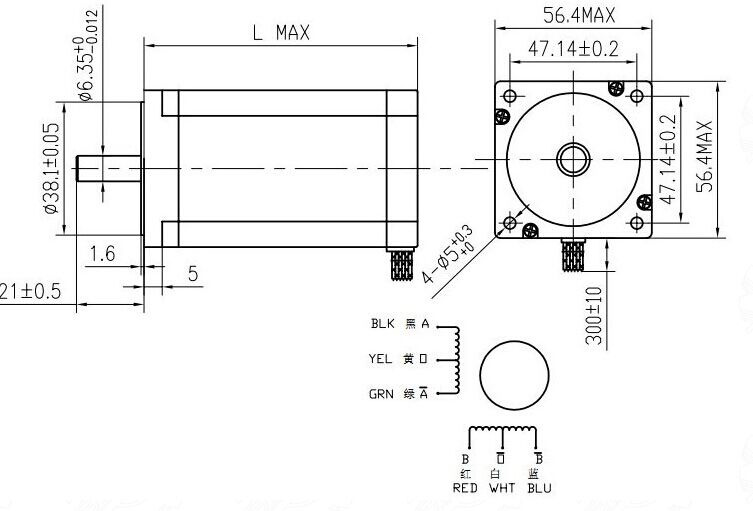

     Model

Phase

No.

  Voltage      CurrentInductanceResistance

Holding

Torque

Rotor

Inertia

WeightPositioning torqueLength

Wire

No.

  VAmh ±20%Ω ±10%Nmg.cm ²kgN.cmmm
57BYGH450-76-27233.551.21.94401.056764








Changzhou JiangHua electric appliance Co., Ltd is located in changzhou qi shuyan, north near Shanghai-nanjing expressway, south meets the 312 national highway, the traffic is very convenient.

Our company specializing in the production of stepping motor with many years of production experience, the product in Beijing, Shanghai, zhejiang and southern region is very popular in the customer high praise. With advanced production equipment, precision testing equipment, exquisite production process.

The company pays attention to the enterprise image, the new products constantly, breed is expanding, continuous improvement technology. The company will continue to with more excellent professionalism dedicated to our machinery equipment industry.

The company continued the effective operation of ISO9001 quality management system, excellent production equipment and advanced production processes, complete test means, perfect service system, will provide our customers with excellent products and services.

Our company carries out the "business-oriented to the letter, walk the world shengwalunding paying court" as our tenet, following the mutual reciprocity and mutual benefit spirit and their clients to establish long-term friendly cooperative partnership. Today's efforts, tomorrow's success, let us cooperate, create together fine tomorrow!
