Reliable and Cheap 425oz. in NEMA 23 Stepper Motor Competitive Price 2.3nm with 8 Leads

Name: Reliable and Cheap 425oz. in NEMA 23 Stepper Motor Competitive Price 2.3nm with 8 Leads
Brand: all-electronics-online.com
SKU: 836838485
Availability: InStock
Rating: 4.3 (88 reviews)

Price:	US $ 18-23/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	23JH450-80-01
Color:	Black
Diameter:	57mm*57mm
Weight:	1.1kg
Export:	Global
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Electromechanical
Function:	Motor
Brand:	Jianghua

Product Description

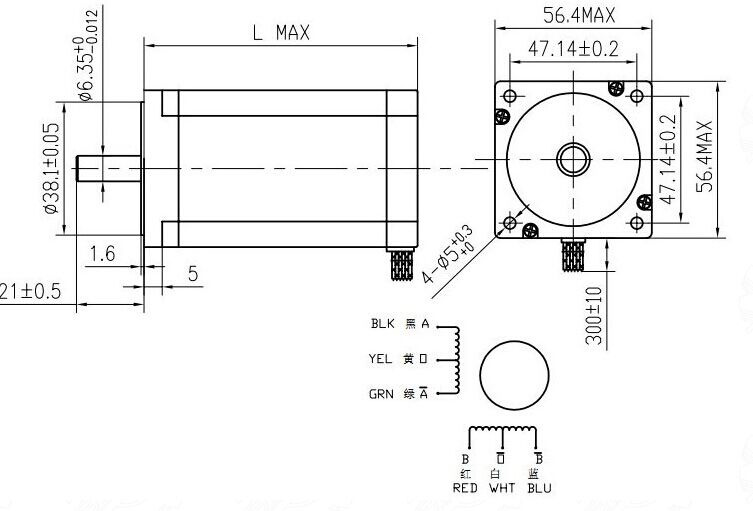

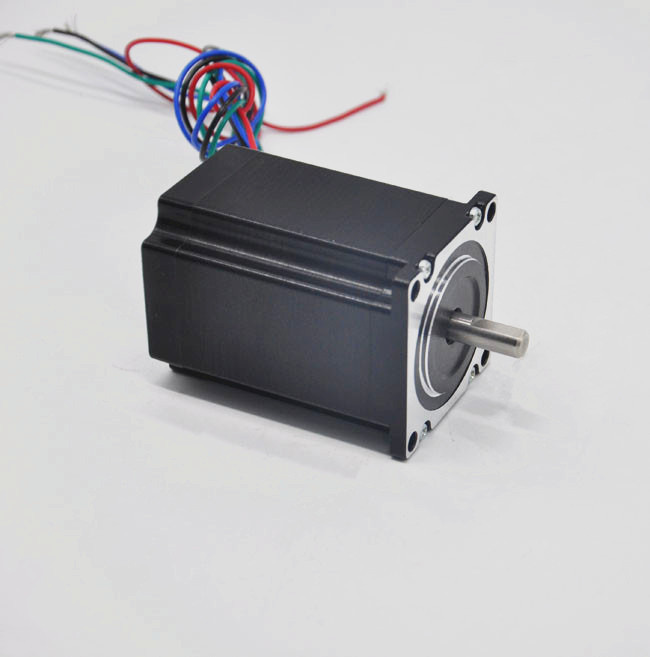

Length 80mm 1.8degree 2.3Nm NEMA23 stepper motor with 8 leads

Product Description

1.8degree Size 57mm Hybrid stepper motor. cnc machine

57mm size stepper motor, NEMA23 stepping motor,

Small stepping motors, 2 phase 57mm stepper motor, Stepper motor 57mm size

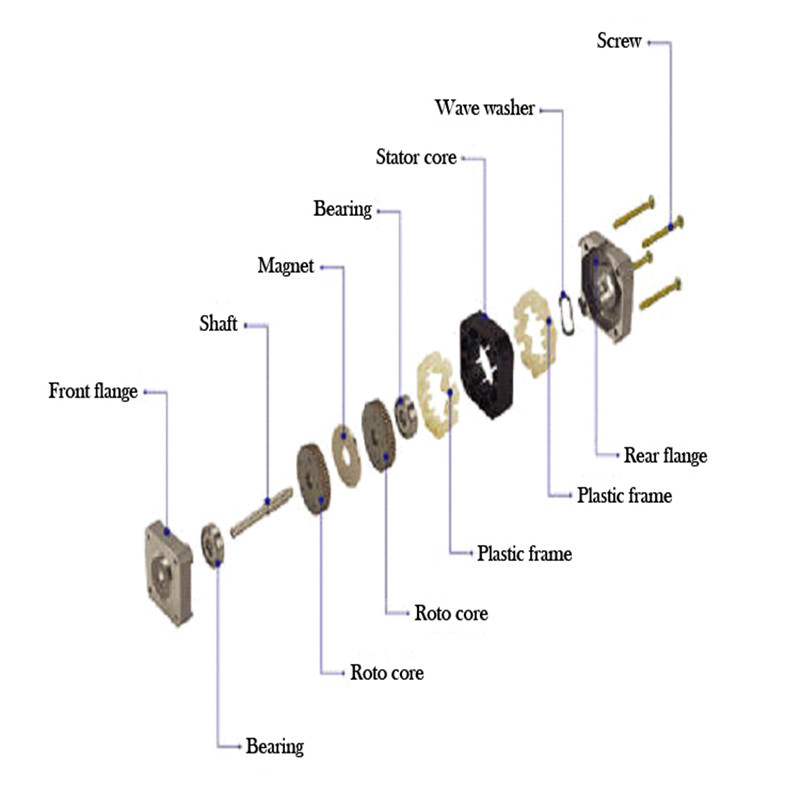

Hybrid Stepper Motors
1) CE and ROHS approved
2) We can develop customer design version

Items	Spec.
Step Angle	1.8°
Step Angle Accuracy	±5%
Resistance Accuracy	±10%
Inductance Accuracy	±20%
Temperature Rise	80°C Max
Ambient Temperature	-20°C~+50°C
Insulation Resistance	100MΩ Min., 500VDC
Dielectric Strength	500VAC for one minute
Shaft Radial Play	0.02Max (450g-load)
Shaft Axial Play	0.08Max (450g-load)

Model

Phase

No.

Voltage

Current

Inductance

Resistance

Holding

Torque

Rotor

Inertia

Weight

Positioning torque

Length

Wire

No.

mh ±20%

Ω ±10%

g.cm ²

N.cm

23JH450-80-01

2.5

1.25

0.7

2.3

500

1.1

Changzhou JiangHua electric appliance Co., Ltd is located in changzhou qi shuyan, north near Shanghai-nanjing expressway, south meets the 312 national highway, the traffic is very convenient.

Our company specializing in the production of stepping motor with many years of production experience, the product in Beijing, Shanghai, zhejiang and southern region is very popular in the customer high praise. With advanced production equipment, precision testing equipment, exquisite production process.

The company pays attention to the enterprise image, the new products constantly, breed is expanding, continuous improvement technology. The company will continue to with more excellent professionalism dedicated to our machinery equipment industry.

The company continued the effective operation of ISO9001 quality management system, excellent production equipment and advanced production processes, complete test means, perfect service system, will provide our customers with excellent products and services.

Our company carries out the "business-oriented to the letter, walk the world shengwalunding paying court" as our tenet, following the mutual reciprocity and mutual benefit spirit and their clients to establish long-term friendly cooperative partnership. Today's efforts, tomorrow's success, let us cooperate, create together fine tomorrow!
