Waterproof Stepper Motor 42mm 2 Phase 0.9 Degree 3D Printer Part NEMA 17 Stepping Motor 50oz. in Holding Torque

Name: Waterproof Stepper Motor 42mm 2 Phase 0.9 Degree 3D Printer Part NEMA 17 Stepping Motor 50oz. in Holding Torque
Brand: all-electronics-online.com
SKU: 835114465
Availability: InStock
Rating: 4.4 (51 reviews)

Price:	US $ 5-8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	17JH4240-1401
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Electromechanical
Function:	Motor
Brand:	Jianghua

Product Description

42MM waterproof stepper motor NEMA 17

lace of Origin: Jiangsu China (Mainland)                                       Brand Name: JH stepper motor
Model Number: 17JH4240-1401                                                     Phase: 2 Type: Hybrid
Certification: CCC, CE, ISO, ROHS, UL, ISO9001                            Step Angle(degrees): 1.8degree
Holding Torque: 42N.CM                                                                  stepper motor Current / Phase:1.7A
Length:40mm                                                                                     Place of Origin ofstepper motor: Changzhou, China
Brand Name of stepper motor: JH                                                Certification of stepper motor: CE,ROHS ,ISO9001
MOQ of stepper motor: 1PCS                                                        Packaging Details: EXPORT CARTON
Payment Terms: T/T,L/C, PAYPAL, Western union                 Supply Ability: 100000pcs/month

HS code of stepper motor: 8501109990 middle flat shaft:6MM*15MM

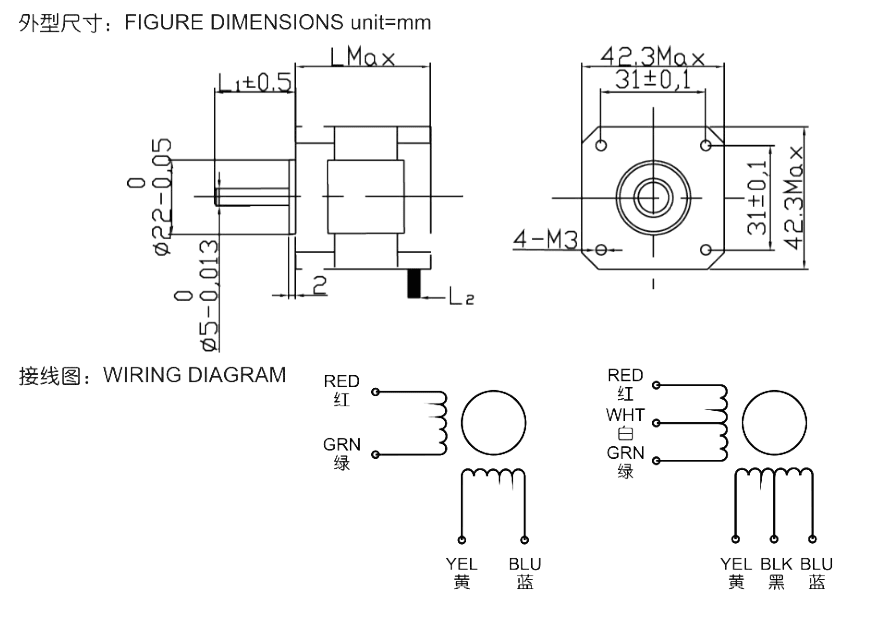

Model No.	Step distance	Motor Length	Current /Phase	Resistance /Phase	Holding Torque	# of Leads	weight
17JH4240-1401	1.8	40mm	1.7A	1.5Ω	42N.cm	socket	280g

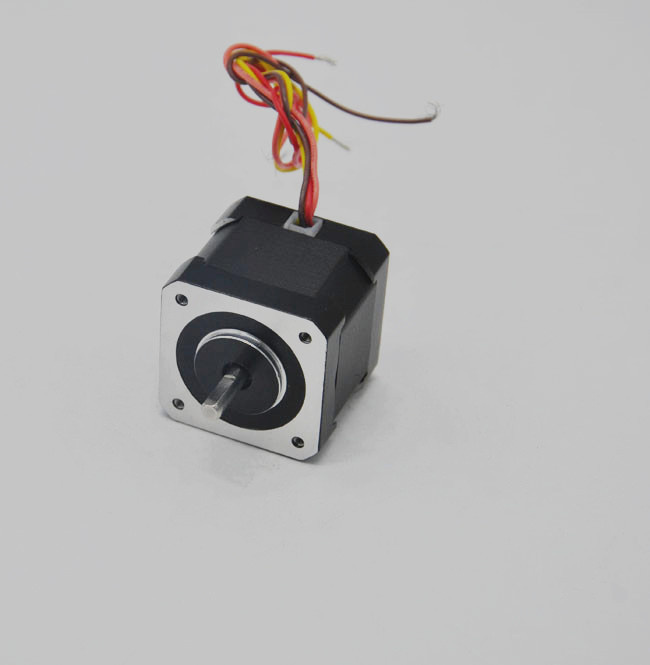

Products Show

The products above can be customized according to your requirements.

Packing &delivery

Certification show

Application

CNC machine: engraving machine, milling machine, coiling machine, sparking machine, wire-electrode cutting and so on.

Electronic equipment: up-coiler, stripping machine, lithum battery production equipment, dispensing machine and so on.

Packaging equipment: filling machine, fixed length cutting machine, tissue paper machine, paper diaper equipment and so on.

Textile equipment: flat knitting machine, hosiery machine, embroidery machine, spinning machine, knitting machine and so on.

Laser machine: screen printing machine, pad printing machine and so on.

Printing equipment: carving machine, cutting machine, labeling machine and so on.

Others : Robot , unmanned aerial vehicle and so on .

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

conatct name:Fanny liu

Changzhou JiangHua electric appliance Co., Ltd is located in changzhou qi shuyan, north near Shanghai-nanjing expressway, south meets the 312 national highway, the traffic is very convenient.

Our company specializing in the production of stepping motor with many years of production experience, the product in Beijing, Shanghai, zhejiang and southern region is very popular in the customer high praise. With advanced production equipment, precision testing equipment, exquisite production process.

The company pays attention to the enterprise image, the new products constantly, breed is expanding, continuous improvement technology. The company will continue to with more excellent professionalism dedicated to our machinery equipment industry.

The company continued the effective operation of ISO9001 quality management system, excellent production equipment and advanced production processes, complete test means, perfect service system, will provide our customers with excellent products and services.

Our company carries out the "business-oriented to the letter, walk the world shengwalunding paying court" as our tenet, following the mutual reciprocity and mutual benefit spirit and their clients to establish long-term friendly cooperative partnership. Today's efforts, tomorrow's success, let us cooperate, create together fine tomorrow!
