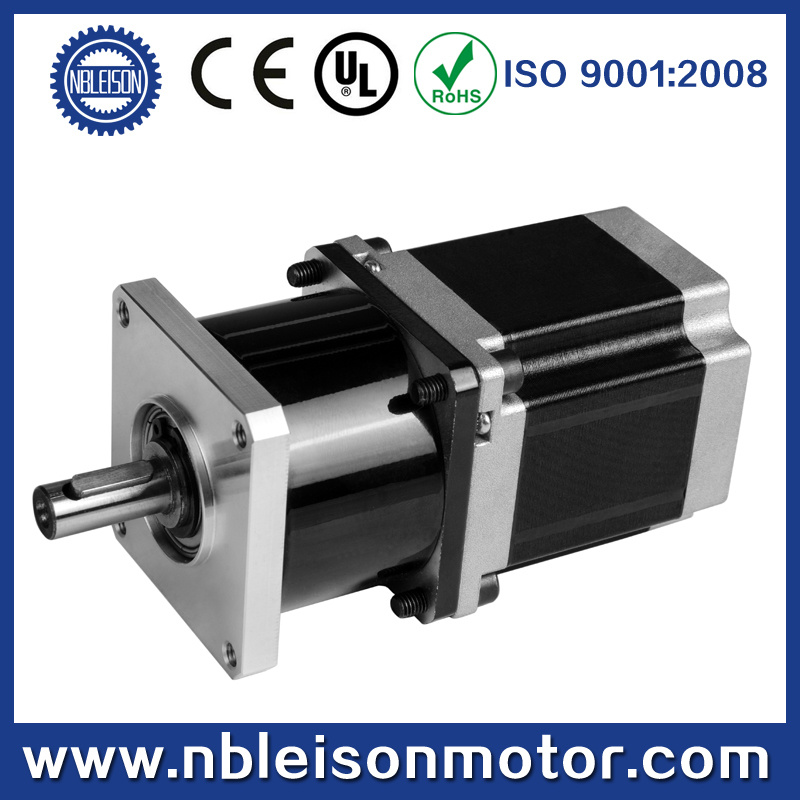

NEMA 23 High Torque Planetary Gearbox Stepper Motor

Name: NEMA 23 High Torque Planetary Gearbox Stepper Motor
Brand: all-electronics-online.com
SKU: 754534125
Availability: InStock
Rating: 5 (55 reviews)

Price:	US $ 39.8-60/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	56PA/57BYG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle:	1.8 Dege
Gearbox Diameter:	56mm
Gearbox Shaft:	12mm
Stepper Motor Diameter:	57mm
Type:	Magnetic-Electric
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Brand:	Leison Motor
Certification:	CE,RoHS

Product Description

gearbox stepper motor

Gearbox Dia: 56mm
Stepper Dia: 57mm

Reduction Ratio(X: 1)	3.6	4.25	13	15	18	47	55	65	77	167	198
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4
Rated output torque(kg. cm)	100	100	200	200	200	300	300	300	300	300	300
Gear Box Length(mm)	47.5	47.5	59.5	59.5	59.5	71.5	71.5	71.5	71.5	83.5	83.5

Stepper motor data:

Model	Step Angle	Length (Ld)	Phase Voltage	Phase Current	Phase Resistance	Phase Inductance	Holding Torque	Lead Wire
57BYGH41(M)-144-4A/B	1.8/0.9	41mm	4.1V	1.44A	2.85Ω	5.4mH	4kg. cm	4
57BYGH51(M)-144-4A/B	1.8/0.9	51mm	4.74V	1.44A	3.3Ω	8.2mH	9kg. cm	4
57BYGH56(M)-100-6A/B	1.8/0.9	56mm	7V	1.0A	7.6Ω	10mH	9kg. cm	6
57BYGH56(M)-280-4A/B	1.8/0.9	56mm	2.52V	2.8A	0.9Ω	2.5mH	12.5kg. cm	4
57BYGH76(M)-200-6A/B	1.8/0.9	76mm	5V	2.8A	2.25Ω	3.6mH	13.5kg. cm	6
57BYGH76(M)-280-4A/B	1.8/0.9	76mm	3.16V	2.8A	1.13Ω	3.6mH	18.9kg. cm	4

Note: It's only the typical data, The motor can be customized if you have special requirment such as motor speed, torque, shaft dimension, Also motor price are for reference only, It's decide by motor's ratio and body length

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
