NEMA 8 Size 20mm Micro Stepper Motor

Name: NEMA 8 Size 20mm Micro Stepper Motor
Brand: all-electronics-online.com
SKU: 678463452
Availability: InStock
Rating: 4.6 (139 reviews)

Price:	US $ 6.48-7.68/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	8HY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle:	1.8
Hold Torque:	up to 3n.Cm
Phase:	2 Phase
Current:	0.1-.06A
Motor Body Length:	28mm, 34mm, 40mm
Shaft:	D-Cut or Round, Customized Shaft Length
Connectors:	Can with Connectors, 4 or 6 Lead Wires
Step Angle Accuracy:	±5% Full Step
Resistrance Accurancy:	±10
Ambient Temperature:	: -20° - +50°
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Magnetic-Electric

Product Description

Micro Stepper Motor:

1. Professional manfacuturer for stepper motor, We have different type NEMA8, NEMA11. NEMA14, NEMA16

NEMA17, NEMA23, NEMA34, NEMA42.

2. 1.8 degree, 0.9 degree. 3.6 degree, 1.2 degree, Single shaft or double shaft, D-cut or rond shaft

3. Customized lead wires length and connectors are also acceptable

4. The datesheet is only for reference, We can produce the customized motors according to your requiremnt,

Fell free to conact with me if you want specifiations or have any questions.

Electrical Specifications:

Model	Phase Voltage (V)	Phase Current (A)	Phase Resistance (ohm)	Phase Inductance (mH)	Holding Torque (N. cm)	Lead Wires (No. )	Weight (g)	Length (mm)
8HY26-0204A	4.0	0.2	23	8.2	1.6	4	40	26
8HY28-0204A	12.0	0.2	23	8.2	1.6	4	50	28
8HY28-0604A	1.9	0.6	3.2	0.9	1.6	4	50	28
8HY33-0204A	5.0	0.2	25	8.4	2.0	4	70	33
8HY33-0604A	2.7	0.6	4.5	1.2	2.0	4	70	33
8HY40-0204A	6.4	0.2	32	8.8	2.8	4	80	40
8HY40-0604A	3.5	0.6	5.8	1.6	2.8	4	80	40

Packing:

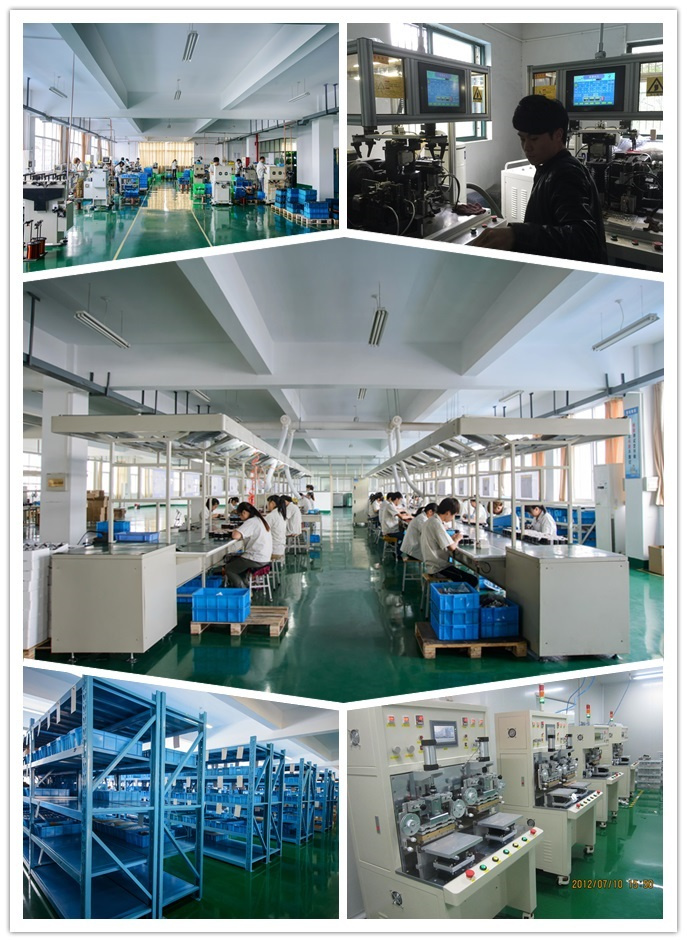

About our company:

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
