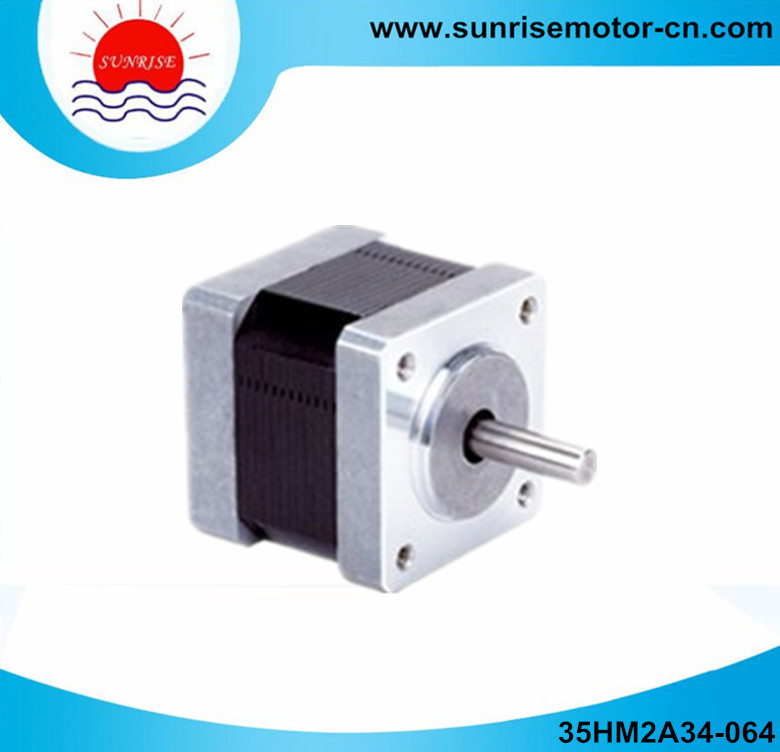

NEMA14 14n. Cm 0.55A 0.9degree 2phase Stepper Motor

Name: NEMA14 14n. Cm 0.55A 0.9degree 2phase Stepper Motor
Brand: all-electronics-online.com
SKU: 726069975
Availability: InStock
Rating: 4.5 (86 reviews)

Price:	US $ 8.71-9.03/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	35HM2A34-064
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	35hm2a34-064
Holding Toqure:	14n.Cm
Current:	0.55A
Resistance:	12ohms
Inductance:	19mh
Length:	34mm
Wire:	4
Weight:	190g
Type:	Magnetic-Electric
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Brand:	Sunrise Motor
Certification:	SGS

Product Description

35HM 2-Phase Hybrid Stepping Motor
0.9 degree NEMA14

Model: 35HM2A34-064
Holding torque: 14N. Cm
Current: 0.55A
Resistance: 12ohms
Inductace: 19mH
Length: 34mm
Weight: 190g

Remark:
Motor are available with different winding and mechanical modification to meet specific applications.

Model	Holding Torque (N@cm±10%)	Current/Phase(A)	Resistance/Phase (ohms±10%)	Inductance/Phase (mH±20%)	Detent Torque (N@cm)	Rotor Inertia (g-cm 2 )	Length (mm)	Weight (g)
35HM2A28-084	9	0.8	4.5	4.2	0.3	12	28	130
35HM2A28-064	9	0.55	10	9.5	0.3	12	28	130
35HM2A28-044	9	0.36	22	20	0.3	12	28	130
35HM2A28-046	8	0.4	30	12	0.3	12	28	130
35HM2A34-084	14	0.8	6	10	0.6	18	34	190
35HM2A34-064	14	0.55	12	19	0.6	18	34	190
35HM2A34-044	14	0.36	28	42	0.6	18	34	190
35HM2A34-046	10	0.4	30	18	0.6	18	34	190

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
