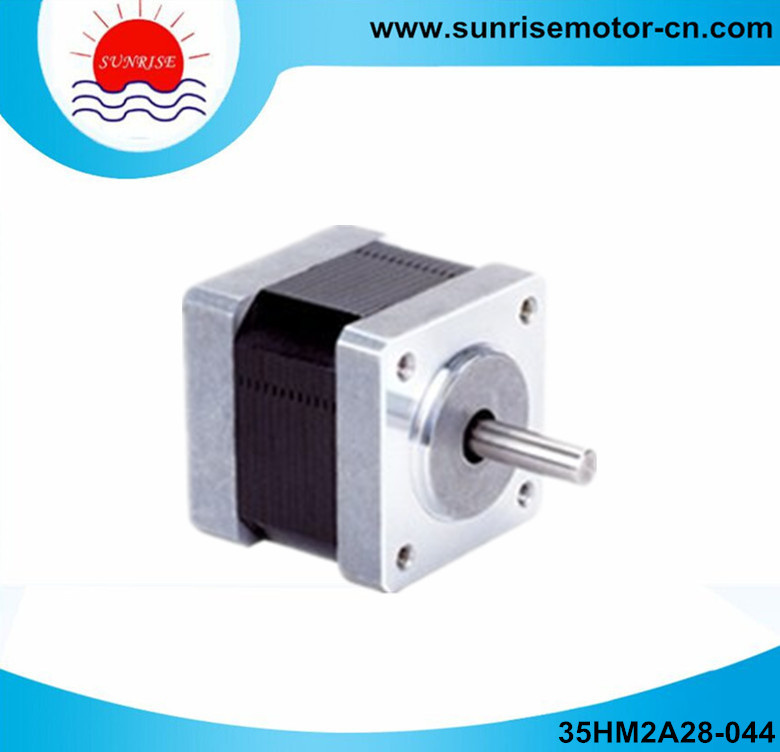

NEMA14 9n. Cm 0.36A 0.9 Degress 2-Phase Stepper Motor

Name: NEMA14 9n. Cm 0.36A 0.9 Degress 2-Phase Stepper Motor
Brand: all-electronics-online.com
SKU: 726069185
Availability: InStock
Rating: 4.8 (34 reviews)

Price:	US $ 7.58-7.9/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	35HM2A28-044
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	35hm2a28-044
Holding Torque:	9n.Cm
Current:	0.36A
Resistance:	22ohms
Inductance:	20mh
Length:	28mm
Wire:	4
Weight:	130g
Type:	Magnetic-Electric
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Brand:	Sunrise Motor
Certification:	SGS

Product Description

2-Phase Hybrid Stepping Motor 0.9 Degree
NEMA14

Model: 35HM2A28-044
Holding torque: 9N. Cm,
Current: 0.36A
Resistance: 22ohms
Inductance: 20mH,
Length: 28mm
Wire: 4
Weight: 130g

Remark:
Motor are available with diffent winding and mechancial modification to meet specific applications.

Model	Holding Torque (N@ cm± 10%)	Current/Phase(A)	Resistance/Phase (ohms± 10%)	Inductance/Phase (mH± 20%)	Detent Torque (N@ cm)	Rotor Inertia (g-cm 2 )	Length (mm)	Weight (g)
35HM2A28-084	9	0.8	4.5	4.2	0.3	12	28	130
35HM2A28-064	9	0.55	10	9.5	0.3	12	28	130
35HM2A28-044	9	0.36	22	20	0.3	12	28	130
35HM2A28-046	8	0.4	30	12	0.3	12	28	130
35HM2A34-084	14	0.8	6	10	0.6	18	34	190
35HM2A34-064	14	0.55	12	19	0.6	18	34	190
35HM2A34-044	14	0.36	28	42	0.6	18	34	190
35HM2A34-046	10	0.4	30	18	0.6	18	34	190

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
