Wuxi Fangneng Automation Technology Co., Ltd. >> NEMA17 2 Phase Stepper Electric Motor for CNC Machine

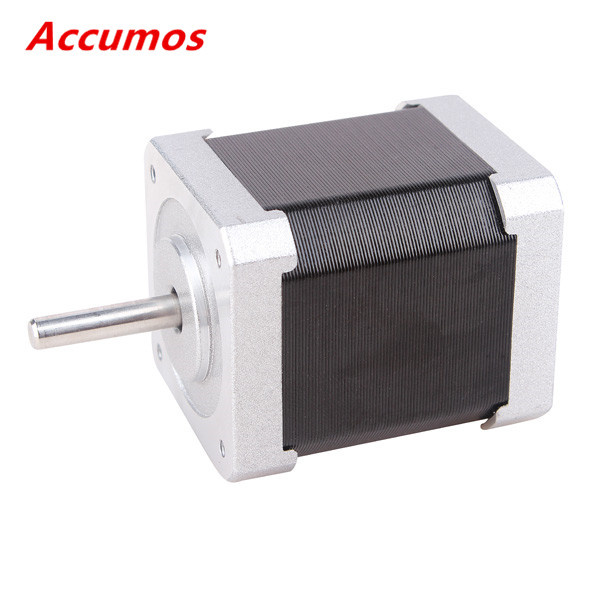

NEMA17 2 Phase Stepper Electric Motor for CNC Machine

NEMA17 2 Phase Stepper Electric Motor for CNC Machine
Price: US $ 5.5-9.5/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,Paypal
Prod Model: 42APF Series
Number Of Stator: Four-Phase
Excitation Mode: HB-Hybrid
Certification: Ce, RoHS
Brand: Accumos

Product Description

42APF Series Stepper Motor

Step Angle Accuracy: 1.8°±5%
Temperature Rise: 80°C Max
Ambient Temperature: -20°C~+50°C
Insulation Resistance: 100M Min., At 500V
Dielectric Strength: 500VAC , 1S, mA
Insulation Class: B

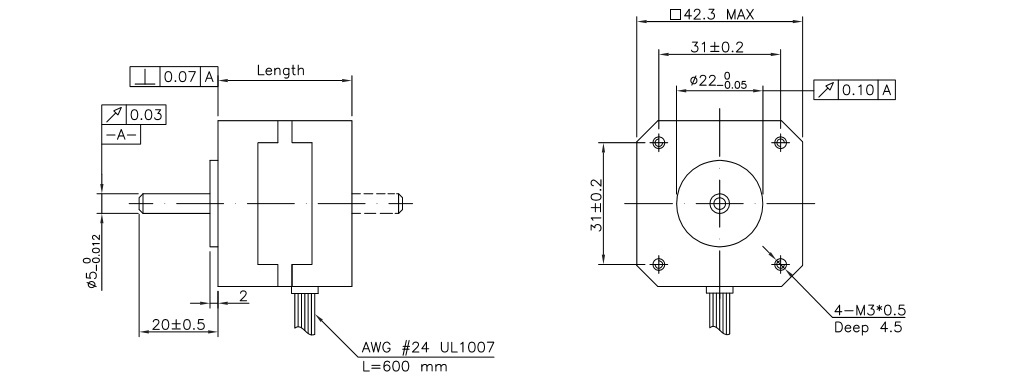

Mechanical

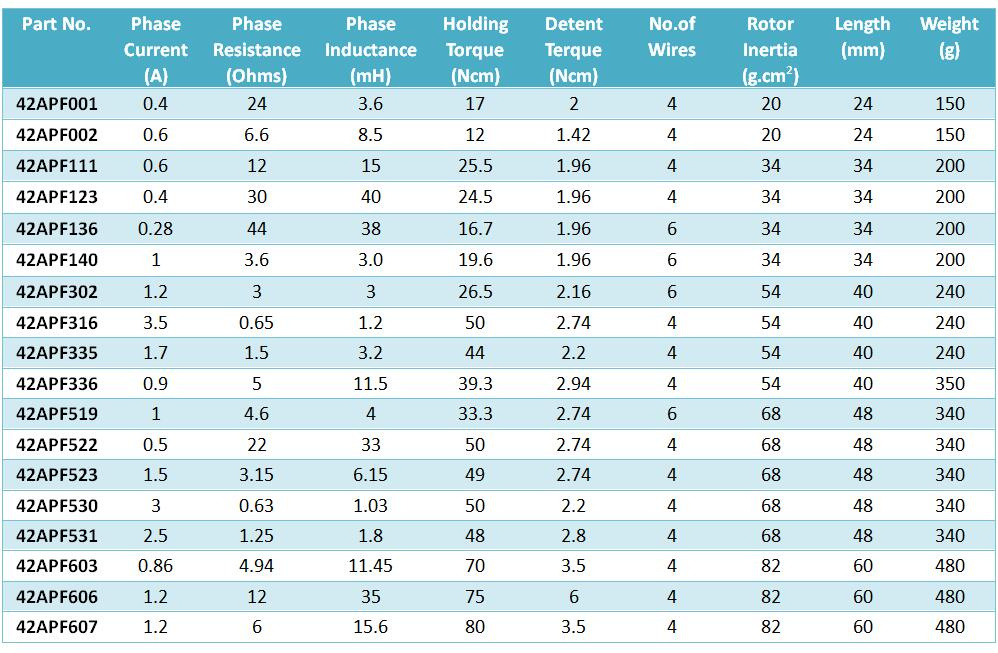

Specifications

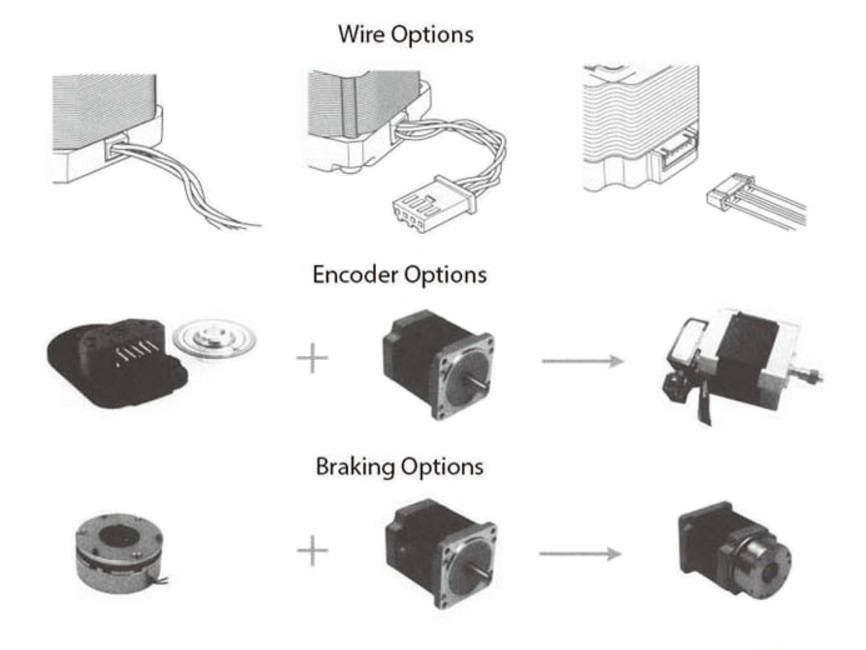

More Options





Accumos, as a global supplier who integrated R&D, manufacturing, marketing on DC motor and industrial automation, is committed to providing the customers with high-efficient and economical power solutions.

Our factory was founded at April, 2007. The primitive name is Wuxi Kaikai Electromechanical Co., Ltd. At that time, we started to export the motors to the foreign countries. But almost were the OEM items. After many years of practice and research, we accumulated valuable technology and experience. Since 2013, our group started to export to abroad directly. And increased the branch, Wuxi Fangneng Automation Technology Co., Ltd.

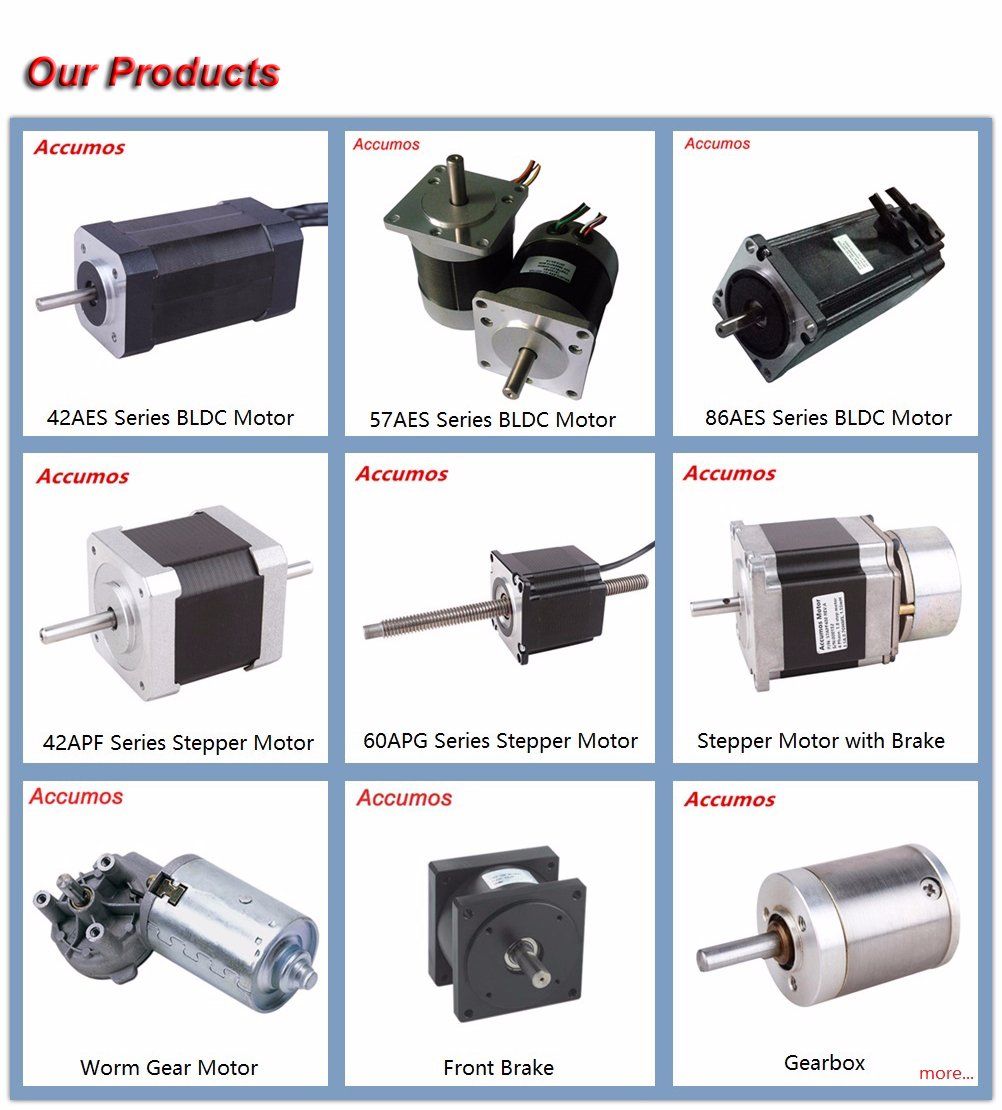

Our products cover DC brush motor, DC brushless motor, stepper motor, gear motor and so on. We not only focus on OEM items with volume quantity, but also work on middle and small quantity item. Keen on subassembly with added value and reduce procurement costs for your project is our target. It's conducive to improve the customer's ecomomic performance and market competitiveness.
