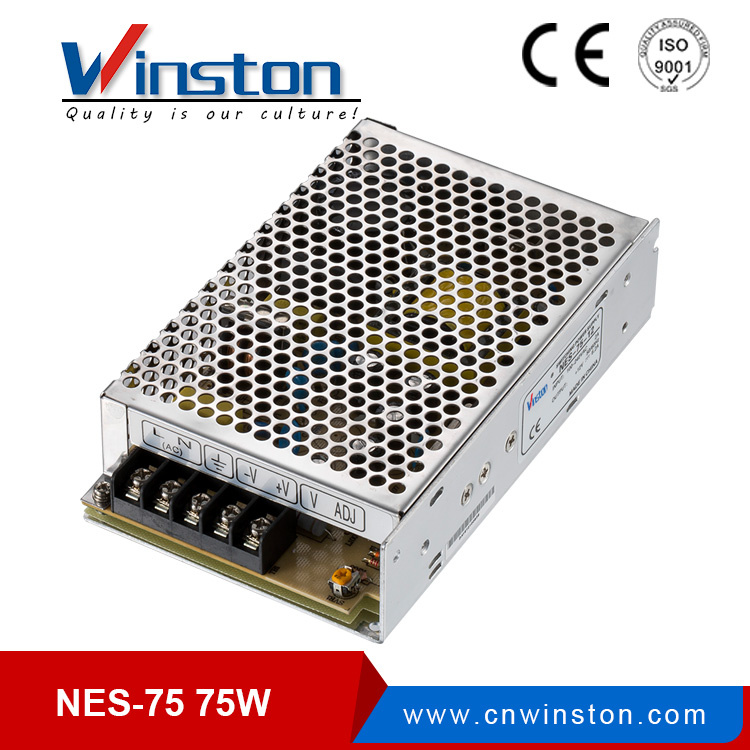

Nes-75 75W 5-48V LED Driver Switching Power Supply with Ce

Nes-75 75W 5-48V LED Driver Switching Power Supply with Ce
Price: US $ 8.38-9.9/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: NES-75-5,NES-75-12,NES-75-15,NES-75-24,NES-75-48
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Antistop: Switching Power Supply
Workmanship: The Exquisite German Technology
Dimensions: 159*98*38mm
Weight: 0.52kgs
Manufacturer: OEM
Condition: Original New
Output Type: Single
Warranty: 2 Years
Input Voltage: Full Range
Connection Mode: Series Switching Power Supply
Starting Mode: Separate-excited Switching Power Supply
Voltage Regulating Mode: Width Modulation Type
Power Supplying System: Level 1 Power Distribution Equipment
Certification: RoHS
Output Power: 75W
Brand: Winston

Product Description

NES-75 Series Switching Power Supply

1.INPUT:85-264VAC or 120-370VDC
2.CE RoHS Approval
3.Size:159*98*38mm (L*W*H)
4.2 Year Warranty


Model

NES-75-5

NES-75-12

NES-75-15

NES-75-24

NES-75-48

DC Voltage

5V

12V

15V

24V

48V

Current Range

0-14A

0 ~ 6.2A

0 ~ 5A

0 ~ 3.2A

0 ~ 1.6A

Ripple & Noise

80mVp-p

120mVp-p

150mVp-p

200mVp-p

240mVp-p

Efficiency

77%

82%

83%

86%

87%
Adjustable range for DC voltage
±10%

±10%

±10%

±10%

±10%

Line Regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load Regulation

±1%

±0.5%

±0.5%

±0.5%

±0.5%

Setup, Rise ,Hold up Time

800ms, 60ms,50ms/230VAC at full load

Input Voltage

85 ~ 264VAC  120 ~ 370VDC

Frequency Range

47 ~ 63Hz

Impact current

Cold start current 45A/230VAC

Over load protection

105% ~ 160% cut off the output,qutomatic recovery

Over voltage protection

115% ~ 135% shut down O/P voltage,re-power on to recover

Working Temp.

-10 ~ +50ºC

Withstand Voltage

I/P-O/P:1.5KV   I/P-FG:1.5KV   O/P-FG:0.5KV 1minute

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC /100MOhms

Dimension

159*98*38mm (L*W*H)

Weight

0.52Kg

Packing

30pcs/Carton

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
