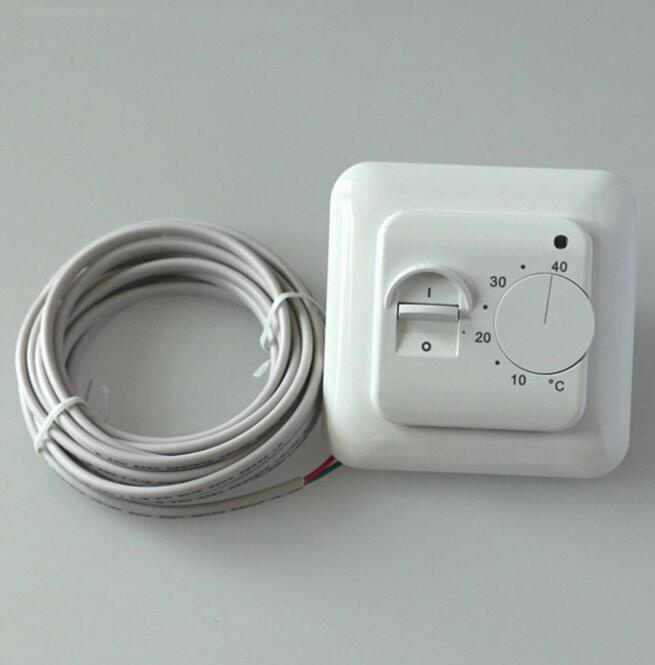

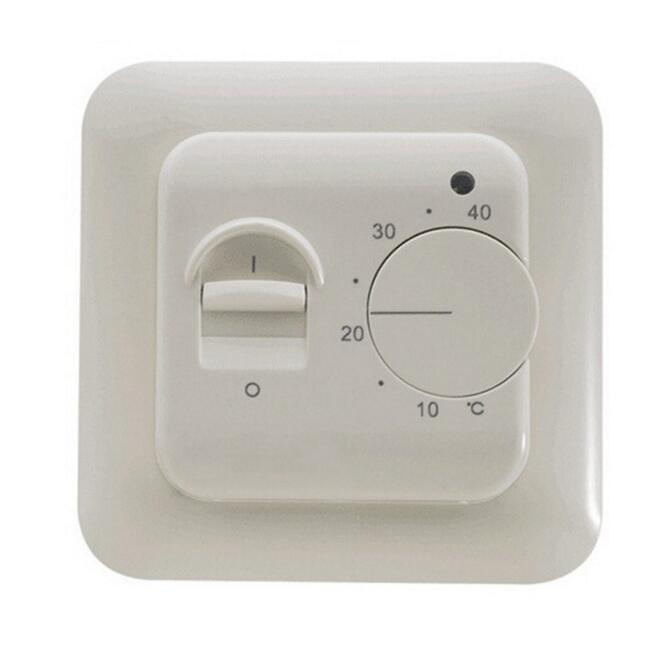

New 230V AC 16A Universal Electronic Underfloor Heating Thermostat Regulator 5~40 Room Warm Temperature Controller

Product Description

New 230V AC 16A Universal Electronic Underfloor Heating Thermostat Regulator 5~40 Room Warm Temperature Controller

The RTC70.XX is used for 2-position control with on/off output for the control the temperature by means of an NTC sensor placed externally or internally in the thermostat
The thermostat acquires the room temperature with its built-in sensor or floor sensor, and the heating contact will close when the room temperature falls below the selected setpoint.
Application
For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings
Features
LED indicator is light when heating is on
With manual switch and knob for easy operation
On/off control output for heating device
Technical data
Voltage: AC230V
Power consumption: 5W
Switching differential: ±0.5K
Protective housing: IP20
Housing material: self-extinguishing PC

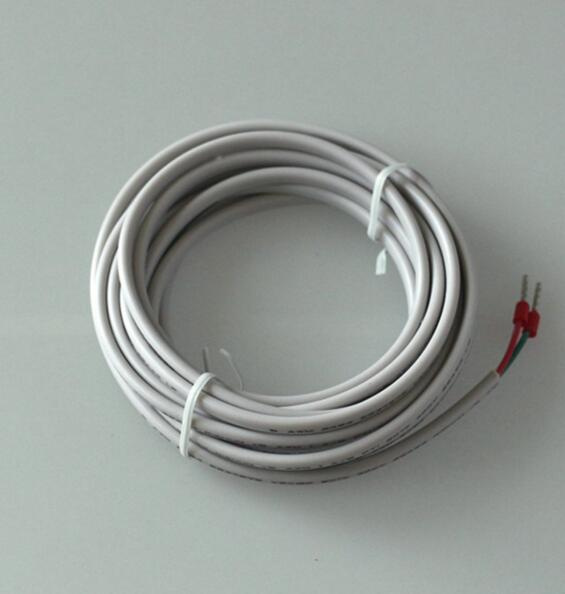

Floor sensor: rubber-thermoplastic NTC sensor, cable length is 3m
