| Prod Model: |
XT-007G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
88*50*20mm |
| Place Of Origin: |
Guanghdong China |
| Warranty: |
5yeas |
| Weight: |
87g |
| Band: |
850/900/1800/1900MHz |
| Battery: |
750mA |
| Waterproof: |
IP67 |
| GPS Chipset: |
Skytraq+Glonass Chipset |
| Position Accuracy: |
10m |
| Type: |
GPS Tracker |
| Use: |
Automotive |
Product Description

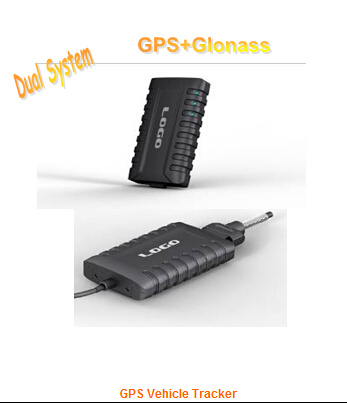

New arrival, Dual System GPS +Glonass XT007G vehicle gps tracker, gps tracking chip device in google map link playback history
It is a waterproof multi-functional and hybrid GPS/GPRS tracker for vehicle, motorcycle and personal.
It has built-in terminals of GPS (global positioning system) module and GSM communication module, which are used for getting the location data and send it to authorized phone number via SMS, and tracking through free maps Google Earth or Google Map; If your mobile phone is smart phone and opened with GPRS service, it is more convenient to see location of the tracker on smart phone by setting the SMS location format to be Google Link.
At the same time, the GPRS data can be sent to the Internet server, which can realize the checking, monitoring and managing of the device on computer.
It is waterproof (IP67).
It has SOS alarm, cut-off external power alarm, vibration alarm, over speed alarm, Geo-fence alarm, remove machine alarm, Background surveillance, Two way communication (additional), Data logger, etc.
It has 2 digital outputs, 3 digital inputs and 2 analog inputs for different reports and applications. Data logger can instantly store the GPRS data which could not send out normally and resend the data when GPRS is reconnected.
The device has the following features and functions:
XT-007G Main Features:
Water resistance (close to IP67)
Built-in GPS & GSM antenna (external GPS antenna optional)
SMS/GPRS (TCP/UDP) communication
SMS/GPRS tracking (support TCP & UDP, http is ready soon)
Real time tracking
Track by interval/demand
Background voice surveillance
Two way communication(optional)
Power saving mode
SOS alarm
ACC detection
Oil detection
Remote fuel/engine cut off
Geo-fencing alarm
Over speed alarm
Motion sensor
Low power warning
Built- in backup battery
External power cut off alarm
Remove off tracker alarm
"No GPS" signal warning
Data logger (built-in 8M flash memory)
Support FOTA (firmware on the Air)
3G-sensor
Hit alarm
AGPS
Anti-interference
FREE 3 months web platform: http://hk.gpstotrack.com/gps user name: MT110test PW: 123456
Standard Packing:
Main unit with battery
USB cable
External GPS antenna
Magnet
I/O Cable
Screw driver
CD
Optional Accessories:
Magnet $4
Mini charging cable+Car charger $6
Oil sensor $35
Relay $4
| Items | Specification |
| Power Supply | DC 7 - 24 V/ 3A |
| Backup Battery | Rechargeable 820 mA h battery (3.7V), |
| Normal Power Consumption | 50mA/h |
| Working Time | normal vehicle & personal mode | 9.5 hours (GPRS interval: 40 seconds) |
| personal long standby mode | 13 hours (GPRS interval: 40 seconds) |
| Dimension | 88*5 0 *20MM |
| Weight | 87 g |
| Operating T emperature | Built in battery - 25 ° C to +60 °C standard( -40 ° C w/optional battery) |
| Humidity | 5% to 95% Non-condensing |
| GSM M odule | Quad Band GSM 850/900/1800/1900Mhz |
| GPS Chipset | Newest GPS SKYTRAQ Chipset |
| GPS Sensitivity | -1 65 dB |
| GPS Frequency | L1 1575.42MHz |
| C/A Code | 1.023 MHz chip rate |
| Channels | 65 channel all-in-view tracking |
| Position Accuracy | < 5 M CEP |
| Velocity Accuracy | 0.1 M/S |
| Time Accuracy | 1 us synchronized to GPS time |
| Reacquisition | 0.1 ms |
| Hot S tart | 1 sec ., average |
| Cold (warm) Start | 29 sec ., average |
| Altitude Limit | 18,000 meters (60,000 feet) max. |
| Velocity Limit | 514 meters/second (1000 knots) max. |
| Acceleration Limit | Less than 4g |
| LED | 3 LED lights to show power (red) , GPS (yellow) , GSM (blue) . |
| Button | SOS button for making phone SOS calls and sending SOS SMS |
| Interface | 2 digital output s ;
3 digital inputs ;
2 analog inputs . |
