| Prod Model: |
DX-500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
500W |
| Output Frequency: |
50/60Hz |
| Output Waveform: |
Modified Sine Wave |
| Housing Material: |
Aluminum Alloy |
| Max Outer Temperature: |
<65c |
| High Volt Cut Off: |
>15DC |
| Overload / Lowload Protection: |
Yes |
| Overvoltage / Lowvoltage Protection: |
Yes |
| Reverse Polarity Protection: |
Yes |
| Warranty: |
2 Years |
| Application: |
Electric Razor |
| Phase: |
Single |
| Power Source: |
Electric Power |
| Brand: |
Doxin |
Product Description

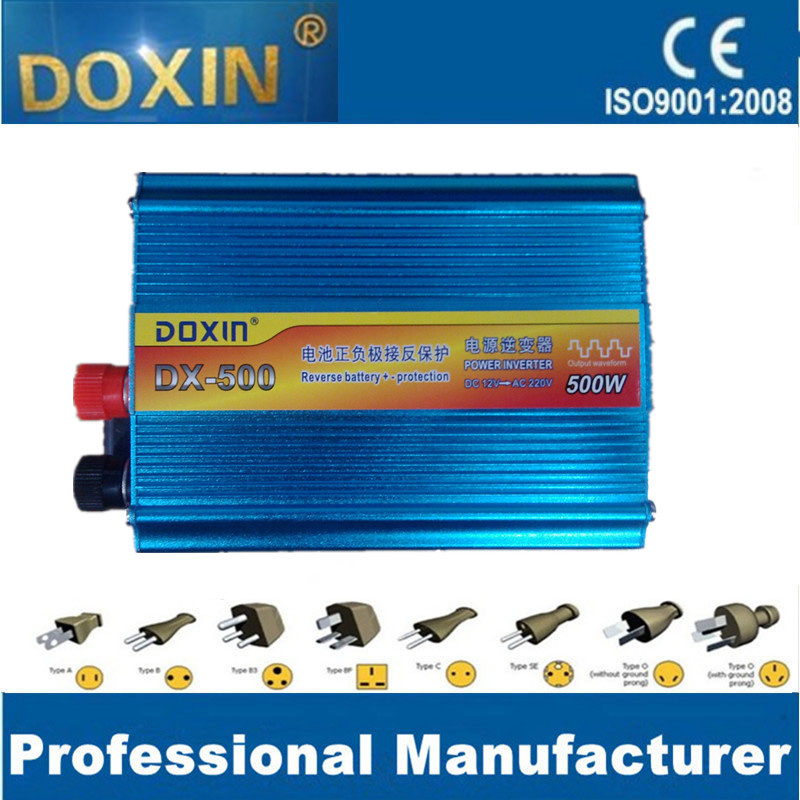

New design 500W DOXIN power inverter with Reverse Polarity Protection(DX-500)
Product Features:
· Compact case design, slim and high efficiency
· It designed to give you quality power, ease of use, and reliability
· Low battery alarm: Alerts you if the battery has become dicharged to 11Volts or lower.
· Low battery voltage shutdown: Shuts the inverter down automatically if the battery voltage drops below 10.5volts. It protects the battery from being completely discharged.
· High battery voltage shutdown: Shuts the inverter down automatically if the input voltage rises to 15volts or more.
· Overload shutdown: Shuts the inverter down automatically if a short cicuit is detected in the circuity connected to the inverter's output, or if the loads connected to the inverter exceed the inverter's operating limits
· Over temperature shutdown: Shuts the inverter down automatically if its internal temperature rises above an unacceptable level.
· The modified sine wave output waveform suitable for many electronic loads.
About us:
DOXIN is a professional manufacture specialized in electronics and solar products, We produce electronics products more than 10 years. We have professional development team. We pursues to establish the culture of "quality first, reputation best ".
Our products usually are exported big quantity in to Europe, USA, African, Russia, Australiaetc. And our power inverter serials enjoy better reputation. With reliable quality and stable performance.
For more info you need, please contact us anytime.
Call us: +86 18028085970
|
Item No. |
DX-500 |
|
|
* Max continuous power: |
500W |
|
* Peak Load Power Rate: |
1000W |
|
* NO load current draw: |
< 0.2A |
|
* Input DC voltage Range: |
DC10-15V |
|
* Output Voltage Range: |
AC220+/-5% |
|
* Output Frequency Range: |
50+/-2Hz |
|
* Max Outer Temperature: |
< 65° C |
|
* Max Power Efficiency: |
> 90% |
|
* High Voltage Cut Off Level: |
> DC15V |
|
* Low Voltage Alarm Level: |
DC10.0-11.0V |
|
* Low Voltage Cut Off Level: |
< DC10V |
|
* Overload and Short-circuit Protection |
YES |
|
* Input Voltage: |
DC12V |
|
* Output waveform: |
Modified sine wave |
|
* AC input Voltage: |
220V |
|
* AC Frequency: |
50HZ± 2Hz |
|
* AC input voltage range: |
170-250V |
|
* AC under voltage protection: |
≤ 150V |
|
* AC Over voltage protection: |
≥ 250V |
|
|
|
|
* DC to AC inverting household electricity supply time: ≤ 15ms |
|
* household electricity supply inverting AC to DC time: ≤ 15ms |
|
* Built-in Cooling Fan |
|
|
* Product Size: |
126x95x55mm |
|
* Packing size(12pcs/ctn) |
61x25.5x26cm |
|
* N. W: |
0.41KG |
|
* G. W: |
0.58KG |
