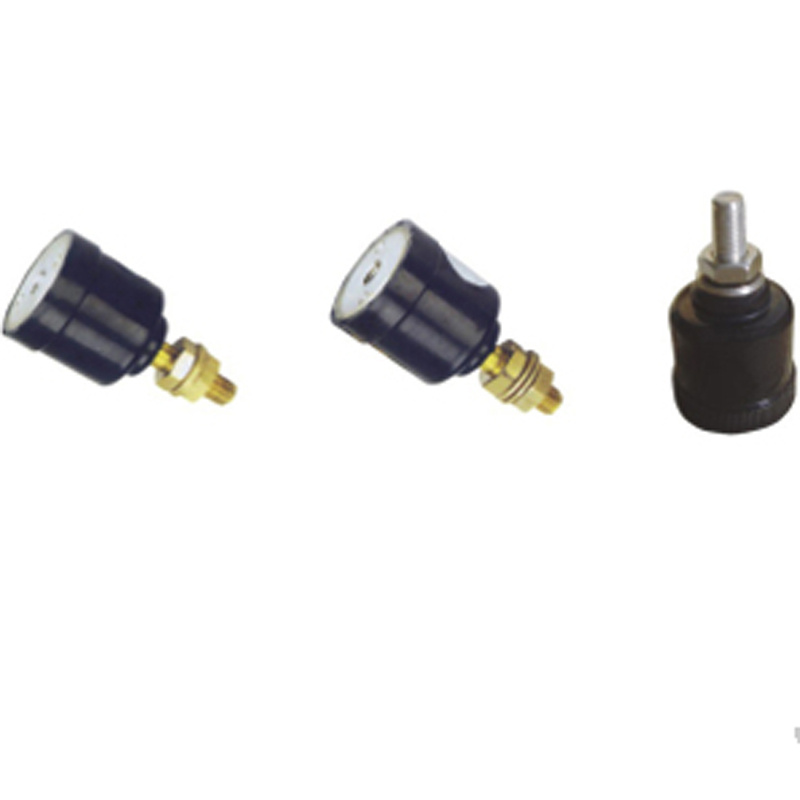

New High Voltage Surge Arrester Disconnector

Name: New High Voltage Surge Arrester Disconnector
Brand: all-electronics-online.com
SKU: 689725511
Availability: InStock
Rating: 4.5 (37 reviews)

Price:	US $ 1-3/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	DS11-1
Type:	High-voltage
Installation:	Outdoor High-voltage
Operation:	Electric
Grounding:	Un Grounded
Series:	Three
Run:	Turn the Horizontal
Switching Mode:	Single Throw-in
Structure:	Round

Product Description

As a special ancillary product of arrester, disconnector is series connected with arrester, coming into work rapidly when arrester break down, throwing failure arrester out of electric network and giving obvious disconnecting sign, which makes it's easy for maintenance people to find fault point and replace the failed arrester

On the other hand, when arrester is correctly working, disconnector will be out of work, low-resistance, and has no influence of arrester's protection property

Arrester configured with disconnector is truly realizing the property of safety, free maintenance, convenient and reliable

Disconnectors are generally used in arresters in advanced countries such as European, USA, Japan and other countries

Our disconnectors with newly thermal-explosive design, quick response and no mistakes at working, can match with all kinds of 3kV or above arrester. Working conditions are same as arrester

Current(A)	800	200	20	5	0.5	0.05
Active time	0.01-0.02	0.02-0.05	0.1-0.2	0.5-10	20-50	200-500
