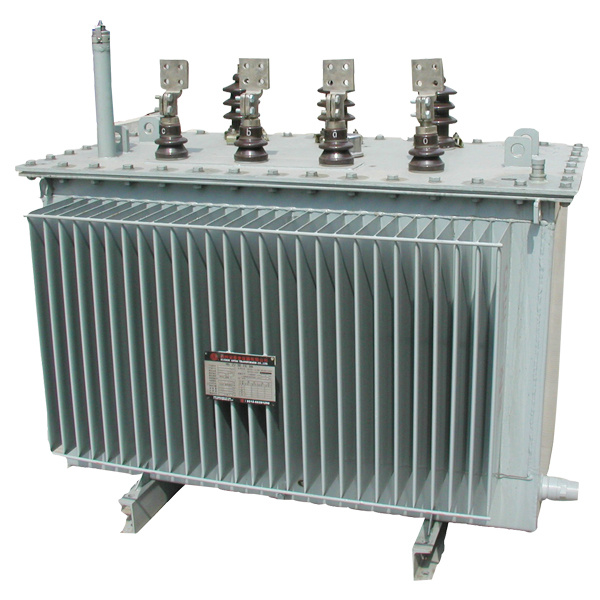

S9 35kv Oiled Power Transformer

Name: S9 35kv Oiled Power Transformer
Brand: all-electronics-online.com
SKU: 815776775
Availability: InStock
Rating: 4.4 (97 reviews)

Price:	US $ 1000-8000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	S9
No-Load Current:	2.0%
Rated Capacity:	30kVA
Application:	Lighting
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Three Winding Transformer
Shape Of Coil:	E
Brand:	Powery

Product Description

Product description

Advantages

1. Good performance against short-circuit
2. High-quality technique: Cold-rolled silicon-steel plate, three-phase oil-immersed distributing transformer applies new type insulating structure and makes short-circuit resistance, high-voltage winding group is made up of high-quality oxygen-free copper lines and it adopts multi-layered drum type structure, all fasteners have been processed with special treatment to prevent them from loosening
3. Reliable structures
1). Spiral loops with longitudinal oil path to produce a better interior cooling effect
2). Improve the effectual support of the loop's terminal face to strengthen the anti-short circuit electricity capability
3). New suspending structure and instrument-positioning frames to guarantee that the long distance transport and movement will be more reliable

Rated capacity(KVA)	Rated voltage(KV)		Label of couping group	No-load Curent(%)	Loss		Short-circuit impedence	Outline dimensions(mm)
Rated capacity(KVA)	High voltage(KV)	Low voltage(KV)	Label of couping group	No-load Curent(%)	No-load	On-load	Short-circuit impedence	L	B	H
30	35\|36.5\|38.5	0.4Y	Yyno	2.0	0.165	0.94\|0.90	6.5	1320	550	1540
