| Prod Model: |
KL-K211LA |
| Ambient Temperature: |
-20c -- +50c |
| Weight/G: |
50g |
| Current/Ma: |
12 |
| Frequency: |
315MHz, 433MHz, Optional |
| Adjustable Frequency: |
250-460MHz |
| Use: |
Cars, Garage Doors , Gates Doors, Alarm Systems Et |
| Encoding Type: |
Fixed, Learning, Rolling/Hopping Code |
| Battery: |
23A 12V |
| Modulation Way: |
Ask/Ook |
| Application: |
LED Products |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Voltage: |
12V |
| Material: |
Plastic |
| Battery Type: |
Button Battery |
Product Description

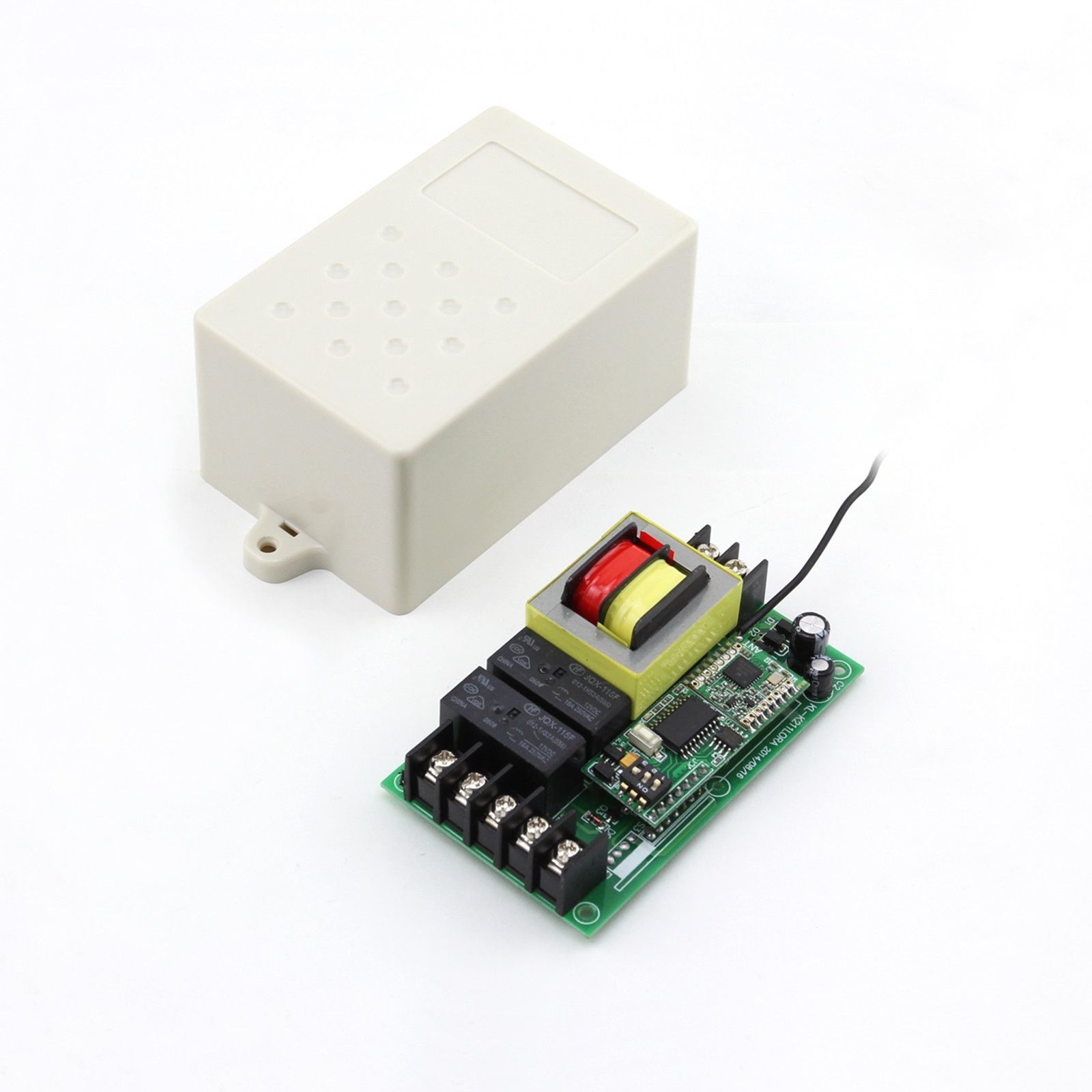

New product Universal controller remote control switch KL-K211LAKL-K211LA is our currently developed super far distance bidirectional remote control series. According to number of channels, KL-K211LA has 3 different channels 1,2,4,. The receiver module switch using spread spectrum communication technology, greatly enhancing the anti-jamming performance. U.S. imports of chips, strict testing to ensure the quality of reliability

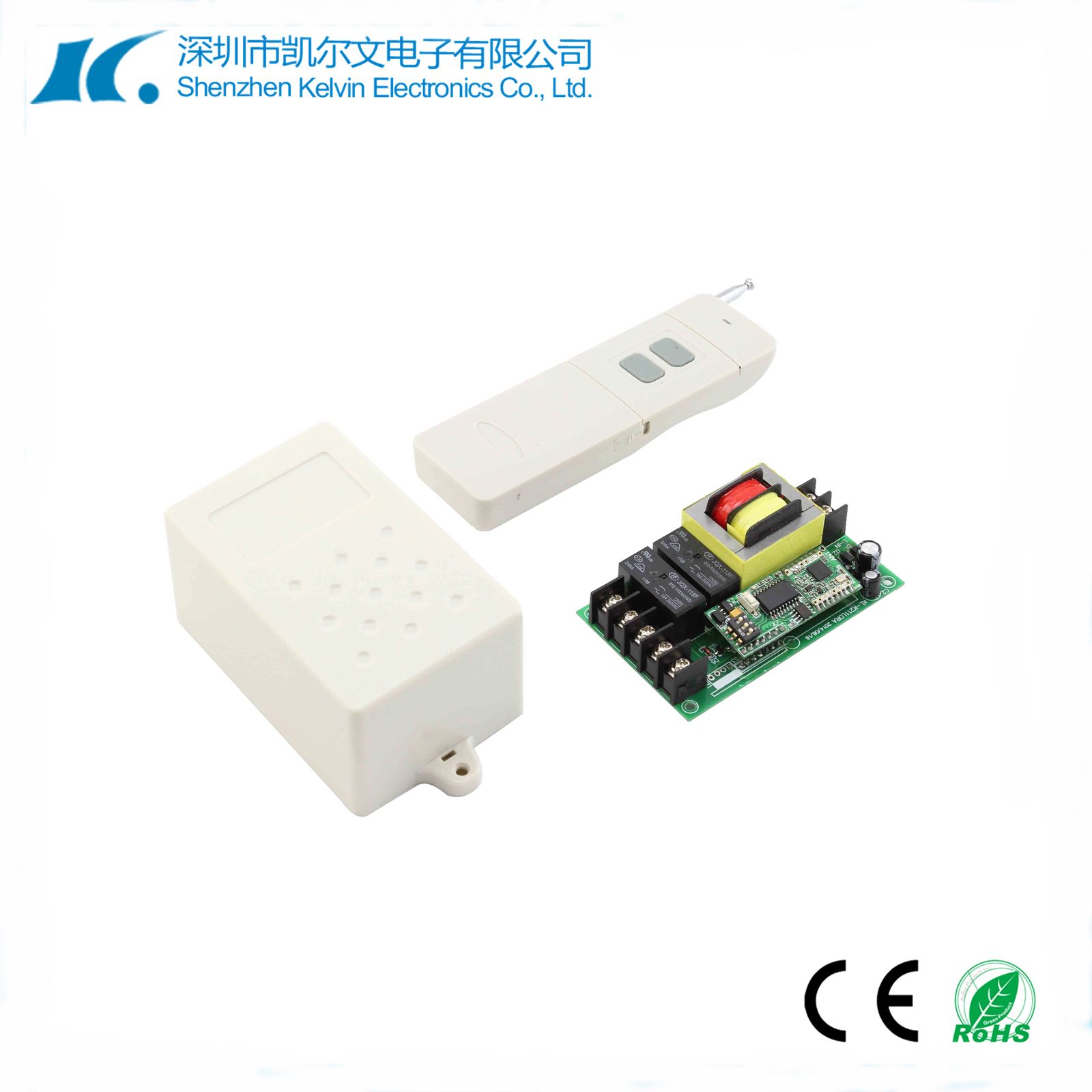

The remote control and a matching receiver module, its measured distance can reach more than 5000m.
Mostly use light,signal, irrigation and door opener and others
If you select bidirectional mode, KL5000-N (N=1.2.4.6.8.12) can match our instantly receive feedback signal from the receiving device.
- Specification
Working Voltage: DC12V/AC220V/AC380V (optional)Receive Current: 16mAStandby Current:16AWorking Frequency: 434MHz (can customize 868,915MHz)Encode type: custom match code Modulation Mode: FSK (FM)+ LORA(SPSP)Feedback Indication: BuzzerReceiving sensitivity: -148dBmControl Distance: 6000m (open area, match with KL5000-2)Operating temperature: -10ºC~+70ºCDimension: 128*98*50mm
- Usage
- Match Code: Press match code button for 3seconds, LED indicator lights, and press any buttons on remote control. When LED flashes 2times, it means finishing matching code.FBK Select: On remote control module, Short-circuit S3, receive FBK signal; break, not receive FBK signal. When bidirectional remote control receives the signal, the buzzer will send the sound 'dip-'If selecting to receive FBK signal, remote control power-on and default standby. When pressing the button, remote control will transmit signal; when up-springing the button, remote control will receive. Before entering into standby, it will be continuous for 1 second.
| Input | AC 220V (AC110V is customized) |
| Channels | 1 |
| Quiescent Current | 12mA |
| Working Frequency | 433MHz / 315MHz, Optional |
| Receiving Sensitivity | -103dBm |
| Decoding Type | Learning Code(EV1527) / Fixed Code(PT2262) |
| Working Mode | Momentary / Toggle / Latching |
| Output | Switching Signal (Dry Contact) / Active Switching Signal (Wet Contact) |
| Max Load | 50A (Relay Contact) |
| Dimension | 100*65*50mm |
