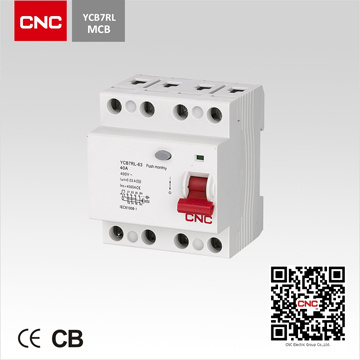

New Products Residual Current Circuit Breaker (YCB7RL)

Name: New Products Residual Current Circuit Breaker (YCB7RL)
Brand: all-electronics-online.com
SKU: 703011795
Availability: InStock
Rating: 5 (57 reviews)

Price:	US $ 8.5-9/Piece
Trade Terms:	FOB,CFR,CIP
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YCB7RL-63
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Poles Number:	4
Certification:	ISO9001-2000
Installation:	DIN Rail
Structure:	ELCB
Type:	Circuit Breaker
Function:	Isolation&Leakage Protection

Product Description

General
1. Protection against the effects of sinusoidal alternating earth fault currents
2. Protection against indirect contacts and additional protection against direct contacts
3. Protection against fire hazard caused by insulation faults
4. Controlling and Switching
5. Used in residential building, non-residential building, energy sources, industry and infrastructure

Electrical features	Rated current In	A	16, 25, 32, 40, 50, 63A
	Type (wave form of the earth leakage sensed)		A, AC
	Poles	P	2, 4
	Rated voltage Ue	V	240/415
	Insulation voltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity Inc=IΔc	A	4500, 6000
	SCPD fuse	A	6000
	Rated impulse withstand voltage (1.2/50) Uimp	V	6000
	Dielectric test voltage at ind. Freq. for 1min	kV	2.5
	Rated sensitivity IΔ n	A	0.03, 0.1, 0.3
	Rated residual making and breaking capacity IΔ m	A	500(In≤40A); 630(In>40A)
	Pollution degree		2
Mechanical features	Electrical life	t	4000
	Mechanical life	t	8000
	Protection degree		IP20
	Storage temperature	° C	-25~+70
	Ambient temperature (with daily average≤35° C)	° C	-5~+40
Installation	Terminal connection type		Cable / U-type bar / Pin-type busbar
	Terminal size top/bottom for cable	mm2	25
	Terminal size top/bottom for cable	AWG	18-3
	Terminal size top/bottom for busbar	mm2	25
	Terminal size top/bottom for busbar	AWG	18-3
	Tightening torque	N*m	2.5
	Tightening torque	In-Ibs.	18
	Mounting		On DIN rail EN 60715(35mm) by means of fast clip device
	Connection		from top and bottom

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
