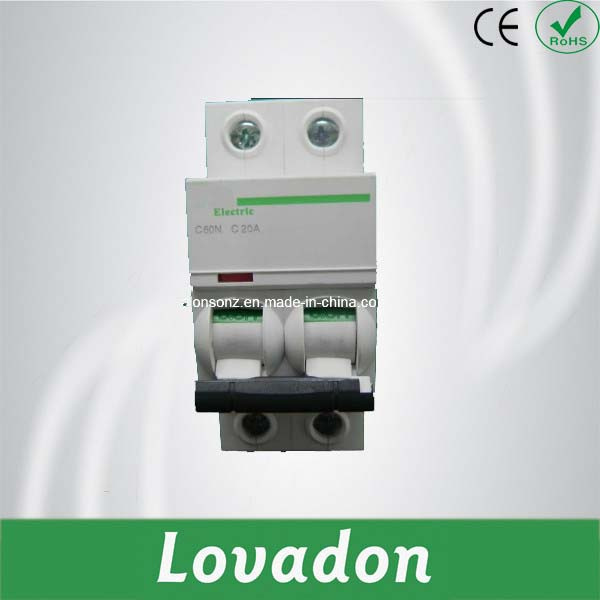

New Style IC60n Series Miniature Circuit Breaker

New Style IC60n Series Miniature Circuit Breaker
Price: US $ 1-9.9/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: C60N
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage Ue: 220/380
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Manual Type
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Air
Structure: MCB
Certification: CE
Installation: DIN Type
Poles Number: 1p,2p,3p,4p

Product Description


Quick Details
Specifications
           Standard                      IEC/EN 60898-1 IEC/EN 60947-2
Electrical
 features
Rated current InA1,2,3,4,6,10,13,16,20,25,32,40,50,63
PolesP1,2,3,4
Rated voltage UeV120/240 220/380 230/400 240/415
Insulation voltage UiV500
Rated frequencyHz50/60
Rated breaking capacityA4500/6000/10000
Energy limiting class 3
Rated impulse withstand voltage(1.2/50)UimpV6000
Dielectric test voltage at ind. Freq. for 1minkV2
Pollution degree 2
Thermo-magnetic release characteristic B,C,D
Mechanical
features
Electrical lifet10000
Mechanical lifet20000
Contact position indicator Yes
Protection degree IP20
Reference temperature for setting
of thermal element
ºC30
Ambient temperature
(with daily average ≤35ºC)
ºC-5~+40
Storage ten peratureºC-25~+70


Packaging & Delivery

Packaging Details:
export carton
Delivery Detail:15days


Product Details:
1. Item name: C60N
2. Standard: IEC/EN60898-1
3. Function: Overcurrent protection
4. Rated voltage: 220/380, 230/400, 240/415
5. Pole: 1, 2, 3, 4


Specifications:

1.Specifications

 Standard IEC/EN  60898-1
Electrical
features
Rated current InA1,2,6,10,16,20,25,32,40,50,63
PolesP1,2,3,4
Rated voltage UeV220/380    230/400    240/415
Insulation voltage UiV500
Rated frequencyHz50/60
Rated breaking capacityA3000 4500
Rated impulse withstand voltage(1.2/50) UimpV4000
Dielectric test voltage at ind. Freq. for 1minkV2
Pollution degree 2
Thermo-magnetic release characteristic BCD
Mechanical features Electrical lifet4000
Mechanical lifet10000
Protection degree lP20
Reference temperature for setting
of thermal element C30
Ambient temperature From -5~+40 (Special application please refer to
(with daily average < 35  ) Ctemperature compensation correction)
Storage temperatureC-25~+70
Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

Yueqing Lovadon Electric Co., Ltd wsa founded in 2012, located in Liushi Chandong Industrial Zone where is near the national scenery area-Yandang Mountain. Our company covers an area of 500m² And has around 30 staff members. It has advanced automation equipment and testing equipment, with a number of high-education management team and staffs. The company speciallized in manufacturing low voltage and high voltage electrical product such as Circuit Breaker, Contactors, Distrubition Boxes, Automation products, Switches, Power source, Lightning arrester, Composite suspension insulator, and so on. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
