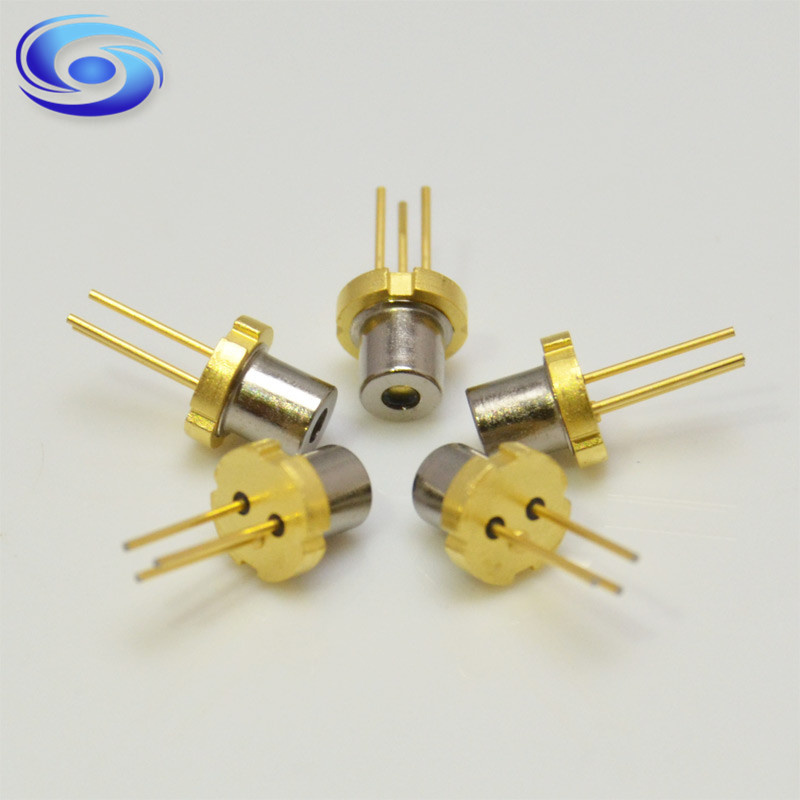

New To18 Package 3V Red 650nm Laser Diode 200MW Ld

New To18 Package 3V Red 650nm Laser Diode 200MW Ld
Price: US $ 2-4.5/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: JLD6520ZC-M1Y
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Peak Wavelength: 650nm~665nm
Light Output Power: 200MW Cw
Can Type: To18-5.6mm
Light Color: Red
Life Time: 10000 Hours
Power Characteristic: High Power
Reverse Voltage: 2V
Operating Current: 280mA
Operating Voltage: 3V
Case Temperature: -10 ~ +75 Degree
Manufacturing Technology: Optoelectronic Semiconductor
Material: Element Semiconductor
Type: Laser Diode
Package: Though Hole
Application: Beauty Equipment, Re-Writable DVD Drives, etc
Model: Ml101f31
Brand: Mitsubishi

Product Description

Features:
High Output Power: 200mw (CW)
High Efficiency: 0.95W/A (typ.)
Visible Light: 660nm (typ.)



A. Product Description

Absolute Maximum Ratings    (Tc=25ºC)
ParameterSymbolRatingsUnit
Light OutputCW200mW
Pulse  500mW
Reverse Voltage (LD)VR  2V
Operating TemperatureTop-10~+75ºC
Storage TemperatureTstg   -40~+100ºC


Electrical/Optical Characteristics ( Tc=25ºC)

Item
SymbolMinTypMaxUnitTest Condition
Threshold currentIth-80-mACW
Operating currentIop-280 mACW, Po=180mW
Operating voltageVop-2.53.0VCW, Po=180mW
Slope efficiencyh-0.95-W/ACW, Po=180mW
Beam divergence angle(Parallel )θ71012ºCW, Po=180mW
Beam divergence angle(Perpendicular)θ⊥141720ºCW, Po=180mW
Peak wavelengthλp650660665nmCW, Po=180mW




B. Packaging & Shipping

1. Plastic box, standard and normal package

2. Delivered by DHL, FedEx, Post Service, Aramex, GLE, etc, or any other special way you like

3. Delivery time will be usually 3~5 working days



C. Company Information & Services

Every customer's admiration is our goal and future willing, we are concentrated in doing
the best quality products, supplying the best goods and service.
Main products: Semiconductor laser diode, laser module, laser power bank, bicycle lasertail light, bicycle wheel light, headlight, auto laser fog light. The laser wavelength includig:405nm 410nm 445nm 450nm 455nm 510nm 515nm 520nm 532nm 635nm 638nm 642nm650nm 658nm 780nm 785nm 808nm 820nm 830nm 850nm 980nm RGB and so on.
