| Prod Model: |
FE82E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ambient Temperature: |
From -5~+40 |
| Rated Voltage: |
230/400V |
| Rated Frequency: |
50/60 Hz |
| Rated Current: |
6-63A |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Structure: |
MCB |
| Certification: |
CE |
| Poles Number: |
1,2,3,4 |
Product Description
10 KA according IEC 60947-2 and IEC 60947-4

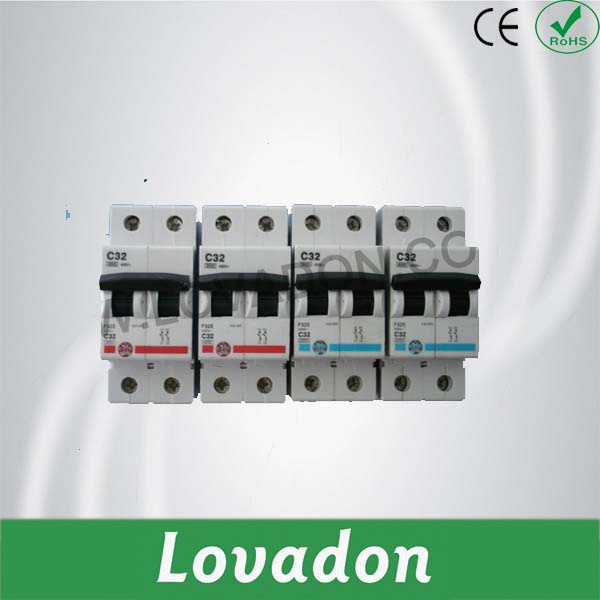

Miniature Circuit Breaker Miniature Circuit Breaker Miniature Circuit BreakerSpecifications
Number of poles(p):1p,2p,3p,4p
Rated current(A):6,10, 16,20, 25, 32,40,50,63
Rated voltage(V):230/400V
Breaking capacity(A):3000-6000
| Number of poles | 1p,2p,3p,4p |
| Rated current(In) | 6,10, 16,20, 25, 32,40,50,63 |
| Tripping curve | B,C,D |
| Rated frequency | 50/60Hz |
| Rated voltage | 230/400V |
| Mechanical life | 10000 |
| Installation temperature | no obvious impact and vibration |
| Utilization category | A |
| Rated limiting short-circuit current | 3000-6000 |
| | 1.Specifications | | |
| | Standard | | IEC/EN 60898-1 |
Electrical
features | Rated current In | A | 1,2,4,6,10,16,20,25,32,40,50,63 |
| Poles | P | 1,2,3,4 |
| Rated voltage Ue | V | 220/380 230/400 240/415 |
| Insulation voltage Ui | V | 500 |
| Rated frequency | Hz | 50/60 |
| Rated breaking capacity | A | 4500/6000/10000 |
| Rated impulse withstand voltage(1.2/50) Uimp | V | 6000 |
| Dielectric test voltage at ind. Freq. for 1min | kV | 2 |
| Pollution degree | | 2 |
| Thermo-magnetic release characteristic | | B,C,D |
Mechanical
features | Electrical life | t | 8000 |
| Mechanical life | t | 20000 |
| Contact position indicator | | Yes |
| Protection degree | | lP20 |
| Reference temperature for setting | | |
| of thermal element | C | 30 |
| Ambient temperature | C | From -5~+40 |
| (with daily average < 35 ) | | |
| Storage temperature | C | -25~+70 |
| Installation | Terminal connection type | | Cable /Pin-type busbar |
| Terminal size top /bottom for cable | mm2 | 25 |
| | AWG | 18~3 |
| Terminal size top/bottom for busbar | mm2 | 25 |
| | AWG | 18~3 |
| Tightening torque | N*m | 2 |
| | ln-Ibs | 18 |
| | | |
| Mounting | | On DIN rail EN 60715(35mm)by means fast clip device |
| Connection | | Product Description
Provides protection against Short-circuit/Overload current and function of isolation.
High breaking current withstand capacity
Applicable to terminal and pin/fork type busbar connection
Equipped with finger protected connection terminals
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
Independent of power supply and line voltage, and free from external interference, voltage fluctuationFrom top and bottom |
Product Description
Provides protection against Short-circuit/Overload current and function of isolation.
High breaking current withstand capacity
Applicable to terminal and pin/fork type busbar connection
Equipped with finger protected connection terminals
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
Independent of power supply and line voltage, and free from external interference, voltage fluctuation
