New U Type 3A-150A Strip Connector Terminals

Name: New U Type 3A-150A Strip Connector Terminals
Brand: all-electronics-online.com
SKU: 675456115
Availability: InStock
Rating: 4.9 (82 reviews)

Price:	US $ 0.14/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	H, W, F Type
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Lighting
Environmental Protection:	Resistance to Environmental
Connection Mode:	Threaded Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed

Product Description

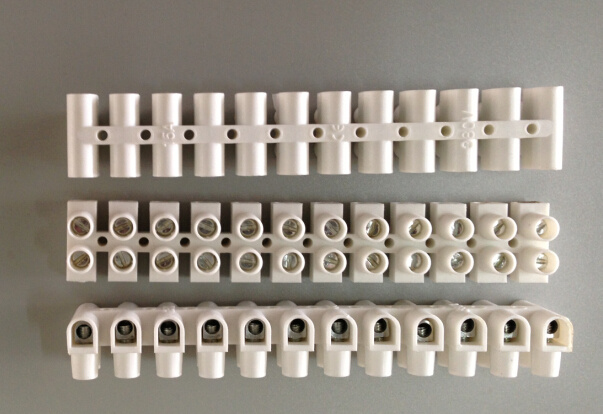

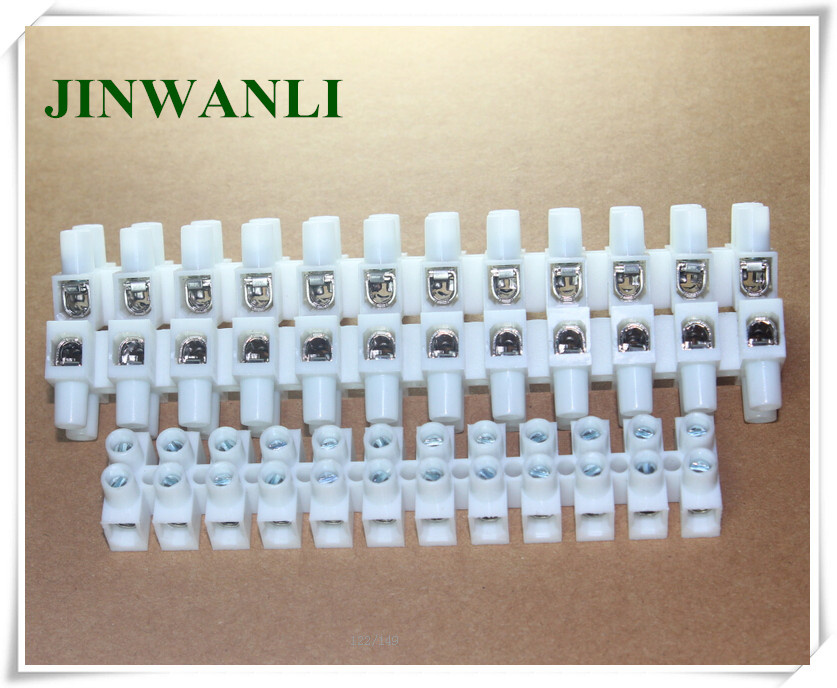

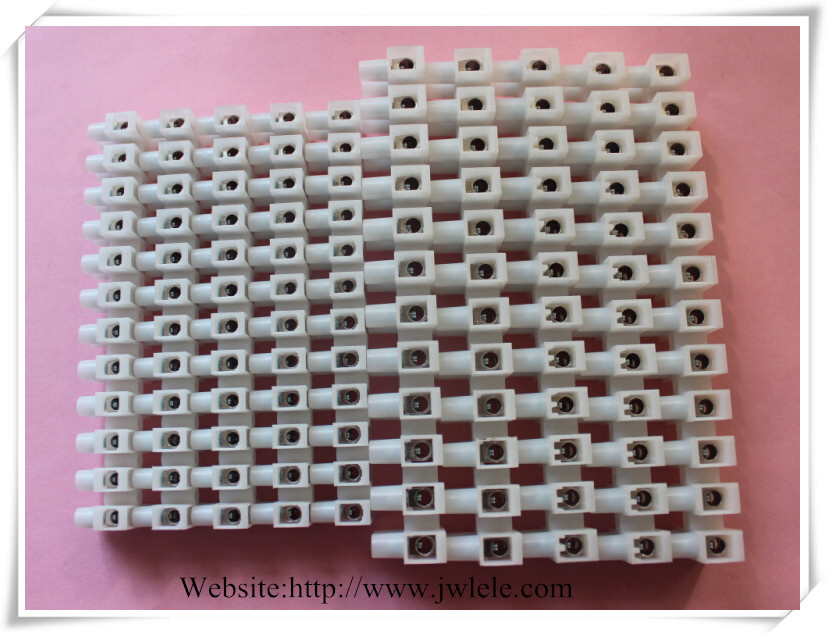

Terminal blocks Type: H, U, F type
Connecting terminal of JWL-3A, 5A, 6A, 10A, 15A, 20A, 30A, 60A, 80A, 100A, 150A

Material: PE, PP, PA
Brass insert and Steel screw
Voltage: 250V~450V

Cable Range(Cable wire):2.5MM~40MM
Current: 3A~150A

Working Temperature:-40° To 180°
Color:Natural color and black color

Place of Origin: Zhejiang China (Mainland)
Number of Contacts: 1-12 pole
Conductor Size: 11-20AWG
Type: Feed Through
Inside: Copper

Samples are available
Delivery Time: 20~25 days

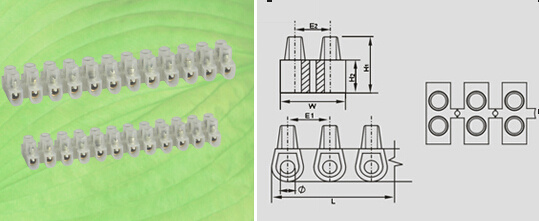

Item no.	L	W	H1	H2		E1	E2	screw size	material
Item no.	mm							screw size	material
3A 4mm 2	91.4	15.6	10.8	6.4	3	7.5	5.8	M2.5 x4	PE PP PA
6A 6mm 2	112.5	16	12.8	7.5	3.2	9.5	6.2	M3 x4.5	PE PP PA
10A 10mm 2	128	20.6	15	8.6	4.2	10.8	7.3	M3 x 6	PE PP PA
15A 12mm 2	137.3	22.5	16.6	9	4.5	11.5	8.1	M4 x6.5	PE PP PA
20A 14mm 2	137.5	22	17.7	9.9	4.7	12	8.4	M4 x6.5	PE PP PA
30A 16mm 2	164.5	25.3	19	10.7	5.6	19	9.3	M4 x 7	PE PP PA
60A 25mm 2	185.5	29.2	24	13.3	6.6	15.8	13	M5 x 9	PE PP PA
80A 35mm 2	204.5	32.6	27.2	14	7	17.3	14.8	M5 x 12	PE PP PA
100A 40mm 2	250	45.6	30.6	18	8.8	21.5	21.6	M6 x 12	PE PP PA
