Nh Dual Indicator Link 16A Electric Single Fuse Link Base

Name: Nh Dual Indicator Link 16A Electric Single Fuse Link Base
Brand: all-electronics-online.com
SKU: 835794695
Availability: InStock
Rating: 4.3 (128 reviews)

Price:	US $ 2-6.67/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Dual Indicator Fuse
Color:	White or Brown
Service:	OEM, ODM
Breaking Capacity:	Low
Usaga:	Low Voltage
Type:	Low Voltage Fuse
Standard:	ISO9000, CCC, Ce, CB

Product Description

Automotive standard power amp spare hrc fuses link

Product Description

This series fuse is suitable for AC 50Hz , rated voltageto 5000V,rated current to 1250A. lt is mainly used in the

electric installation for protecting circuit from overload and short circuit(gG/GL);it also may derive for protecting the

semiconductor device and others complete set installment from short-circuit(aR)as well as the electric motor from short-circuit.

The rated breaking capability for this series fuse is to120KA.

This series fuse conforms to national standard GB13539 and International electrical committee standa rd IEC60269.

Specifications

TYPE	RATED VOLTA GE(V)	RATED CURRENT(A)	A	B	C	D	E	F	WIGHT(g)

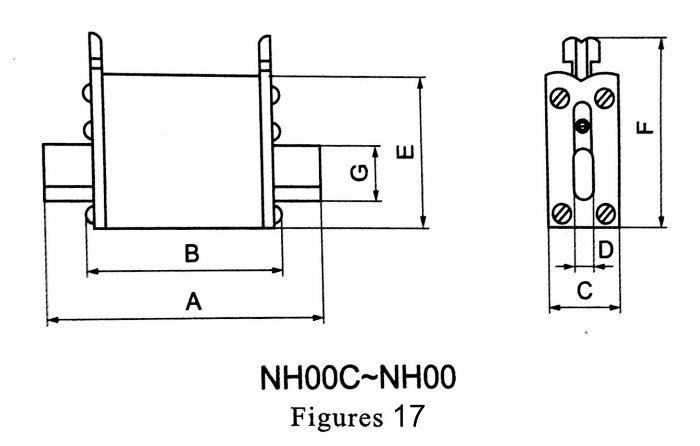

NH00C	AC500/ 690, DC250	4-100	78	54.5	21	6	21	53	15
NH00	AC500/ 690, DC250	4-160	78	54.5	30	6	30	61	15
GS00	DC80	4-600	78	54.5	30	6	30	61	15

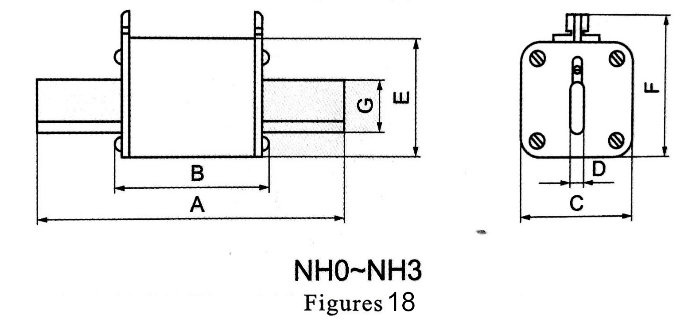

NH0	AC500/ 690, DC440	4-160	125	68	30	6	48	61	15
NH1C	AC500/ 690, DC440	4-160	135	68	30	6	48	61	15
NH1	AC500/ 690, DC440	80-250	135	68	48	6	48	61	20
NH2CC	AC500/ 690, DC440	80-25	150	68	30	6	48	73	15
NH2C	AC500/ 690, DC440	4-160	150	68	48	6	48	73	20
NH2	AC500/ 690, DC440	660-400	150	75	58	6	58	73	25
NH3C	AC500/ 690,DC440	125-400	150	75	58	6	58	83	25
NH3	AC500/ 690, DC440	315-630	150	75	68	6	68	83	32
NH3	AC500/ 690, DC440	800	150	75	68	6	68	83	32

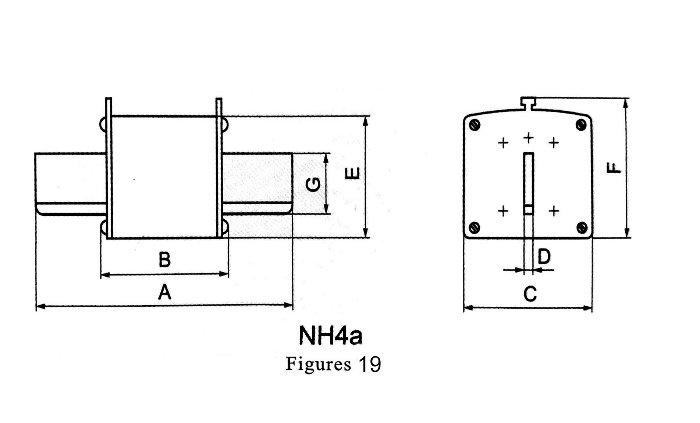

NH4a	AC400/ 500, DC440	800-1600	200	97	100	6	100	112	50

Company Information

Wenzhou Shuguang Fuse Co.,ltd with ISO900 is one of the largest professional manufacturers in High voltage and Low-voltage
electrical appliances,especially specialized in different types of high & low voltage fuse, fuse cutout, arrester, insulator and so on.
With the long-term efforts of our whole employees,we have accumulated rich experience in design and production. We Beieve that
quality is the soul of an enterprise,so we always put quality as the first consideration.Professional technicists and experienced
staff make sure our quality is the best.

Trade Terms

1. Payment : Irrevocable L/C at sight or TT

2. Delivery time and method: Usually within 30 days

3. Port of loading: NINGBO, SHANGHAI (CHINA)

4. MOQ: 100PCS

5. Package: Standard export packing or as per your requirement.
