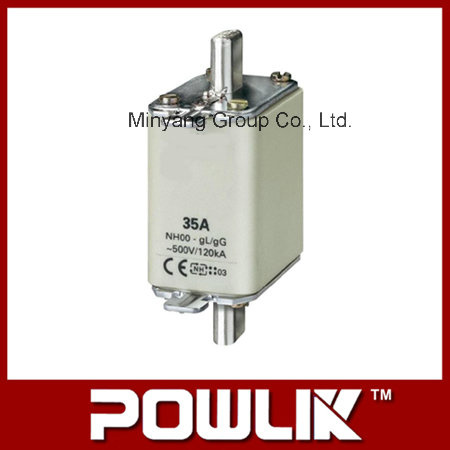

Nh00 Series Knife-Square Pipe Fuse Links, Electrical Fuse Type 35A

Name: Nh00 Series Knife-Square Pipe Fuse Links, Electrical Fuse Type 35A
Brand: all-electronics-online.com
SKU: 772559285
Availability: InStock
Rating: 4.8 (100 reviews)

Price:	US $ 1.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	NH00-35A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current:	10A-160A
Rated Working Voltage:	500V
Rated Insulating Voltage:	690V
Breaking Capacity:	High
Type:	Resettable Fuse
Usaga:	Low Voltage
Standard:	IEC

Product Description

NH00 Series Knife-Square Pipe Fuse Links, Electrical Fuse Type 35A

1.Application

This series fuse is suitable for AC 50Hz, rated voltage to 1140V, rated current to 1250A. Lt is mainly used in the electric installation for protecting ircuit from overload and short circuit(gG/GL); It also may derive for protecting the semiconductor device and others complete set installment from hort-circuit(aR)as well as the electric motor from short-circuit(aM). He rated breaking capability for this series fuse is to 120KA. This series fuse conforms to national standard GB13539 and International electrical committee standard IEC60269.

2.Technical

No.	Fuse model					Rated voltage	Rated current	Overall dimension										Weight
	This company		Similar products at home and abroad			Rated voltage	Rated current	Overall dimension										Weight
	Common	Fast	Common		Fast			Size	Drawing number	A	B	C	D	G	E	F	H
0101	RT16-00	NGTC-00	NT00	NH00	RS31 3NE80	500/660	4~160	00	1.1	78	52	15	29				56	175
0102	RT16-0	NGTC-0	NT0	NH0	RS31B 3NE41	500/1140	4~160	0	1.1	125	68	15	29				56	252
0103	RT16-1	NGTC-1	NT1	RT20-1 3NA1	RS32 3NE12	500/660	63~250	1	1.2	135	72	20	48				61	455
0104	RT16-2	NGTC-2	NT2	RT20-2 3NA1	RS33 3NE13	500/660	80~400	2	1.2	150	72	26	58.5				71	580
0105	RT16-3	NGTC-3	NT3	RT20-3 RO34	RS34 3NE14	500/660	160~630	3	1.2	150	72	31	67				84	880
0106	RT17		NT4	RO39	Rs39	500/660	500~1250	4	1.3	200	90	50	97	8	150	16.5	113	2470
