Dongguan Blueuniverse Laser Co., Ltd. >> Nichia 465nm 23W Sky-Blue Laser Array 3W Laser Diode (NUBM07E)

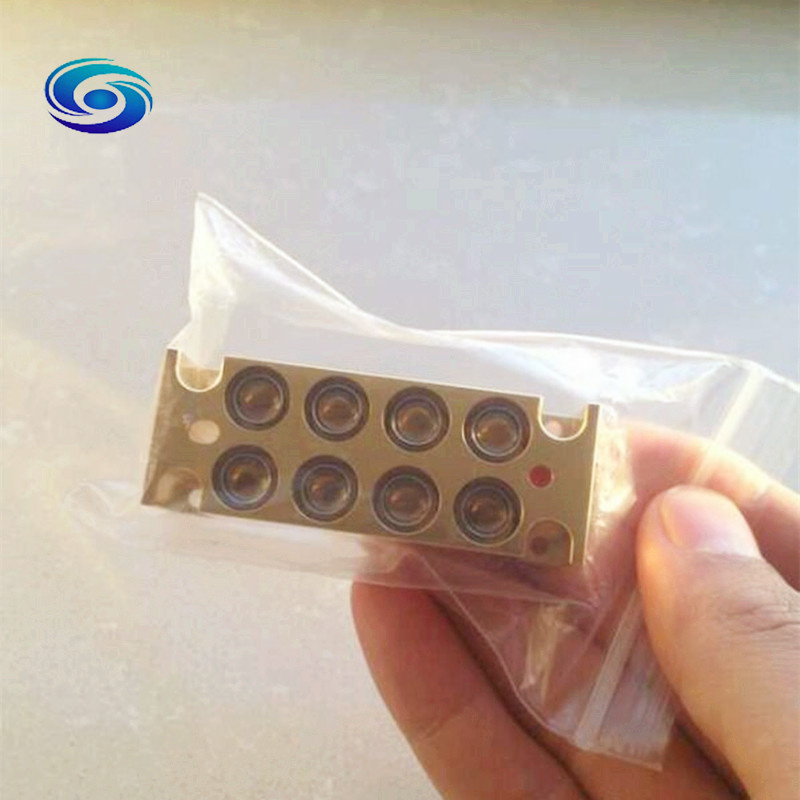

Nichia 465nm 23W Sky-Blue Laser Array 3W Laser Diode (NUBM07E)

Nichia 465nm 23W Sky-Blue Laser Array 3W Laser Diode (NUBM07E)
Price: US $ 675.9-695.9/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: NUBM07E
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dominant Wavelength: 460nm~470nm
Optical Output Power: 23W
Light Color: Blue
Collection: 8PCS 465nm 3W Lds
Foward Current: 1.9A
Operating Voltage: 37V
Allowable Reverse Current: 85mA
Operating Temperature: 0~65 Degree
Storage Temperature: -40~+85 Degree
Service Life: 10,000 Hours

Product Description

Features:
1.  Visible light output: 465nm Typ
2. Optical output power: 23W CW
3. contains 8pcs 465nm 3w laser diodes



Absolute Maximum Ratings    (Tc=25ºC)
ItemSymbolAbsolute Maximum RatingsUnit
Forward Current If2.4 (individual LD)A
Allowable Reverse CurrentIr(LD)85 (individual LD)mA
Storage TemperatureTstg-40~85ºC
Operating Case TemperatureTc0~65ºC


Initial Electrical /Optical Characteristics of LD Bank (Tc=25ºC)
ItemConditionSymbolMinTyp.MaxUnit
Optical Output PowerIf=2.5APo18.4(23)-W
Dominant WavelengthIf=2.5Aλd460(465)470nm
Beam Pointing Tilt AngleIf=2.5AΔθ--0.7deg
Operating voltage(8LDs series connection)If=2.5AVop30-39V


Initial Electrical /Optical Characteristics of Mounted LD (Tc=25ºC)
ItemConditionSymbolMinTyp.MaxUnit
Optical Output PowerIf=2.5APo-(3.0)-W
Dominant WavelengthIf=2.5Aλd460(465)470nm
Threshold CurrentCWIth300(430)550 mA
Slope EfficiencyCW η-(1.6)-W/A
 Operating Voltage If=2.5AVop3.7(4.1)4.8V
Beam Divergence ParallelIf=2.5AΘ//0.25-0.55 °
Perpendicularθ⊥-0.8-0.8 °

Description:

1.  Nichia high power multiple laser diode (LD)  bank NUBM07T.

2. 8 Collimator beams

3. No outgas

4. High heat dissipation

5. High safety stucture for prevention of removing LDs
