| Prod Model: |
NUGM01T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dominant Wavelength: |
510nm~525nm |
| Optical Output Power: |
8W |
| Light Color: |
Green |
| Collection: |
8PCS 520nm 1W Lds |
| Foward Current: |
2A |
| Operating Voltage: |
37V |
| Allowable Reverse Current: |
85mA |
| Operating Temperature: |
0~65 Degree |
| Storage Temperature: |
-40~+85 Degree |
| Service Life: |
10,000 Hours |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Element Semiconductor |
| Type: |
Laser Diode |
| Package: |
Through Hole |
| Application: |
Laser Projector, Stage Lighting |
| Model: |
Nugm01t |
| Brand: |
Nichia |
Product Description
Features:
1. Visible light output: 520nm Typ
2. Optical output power: 8W CW
3. contains 8pcs 520nm 1w laser diodes
Absolute Maximum Ratings (Tc=25ºC)
| Item | Symbol | Absolute Maximum Ratings | Unit |
| Forward Current | If | 2.0 (individual LD) | A |
| Allowable Reverse Current | Ir(LD) | 85 (individual LD) | mA |
| Storage Temperature | Tstg | -40~85 | ºC |
| Operating Case Temperature | Tc | 0~65 | ºC |
Initial Electrical /Optical Characteristics of LD Bank (Tc=25ºC)
| Item | Condition | Symbol | Min | Typ. | Max | Unit |
| Optical Output Power | If=1.6A | Po | T.B.D. | (8.0) | - | W |
| Dominant Wavelength | If=1.6A | λd | 515 | (520) | 525 | nm |
| Beam Pointing Tilt Angle | If=1.6A | Δθ | - | - | 0.7 | deg |
| Operating voltage(8LDs series connection) | If=1.6A | Vop | 32 | (37) | 43 | V |
Initial Electrical /Optical Characteristics of Mounted LD (Tc=25ºC)
| Item | Condition | Symbol | Min | Typ. | Max | Unit |
| Optical Output Power | If=1.6A | Po | - | (1.0) | - | W |
| Dominant Wavelength | If=1.6A | λd | 510 | (520) | T.B.D. | nm |
| Threshold Current | CW | Ith | 150 | - | T.B.D. | mA |
| Slope Efficiency | CW | η | - | (0.7) | - | W/A |
| Operating Voltage | If=1.6A | Vop | 4.0 | - | T.B.D. | V |
| Beam Divergence | Parallel | If=1.6A | Θ// | - | (0.15) | 0.4 | ° |
| Perpendicular | θ⊥ | -0.8 | (0) | 0.8 | ° |
Description:

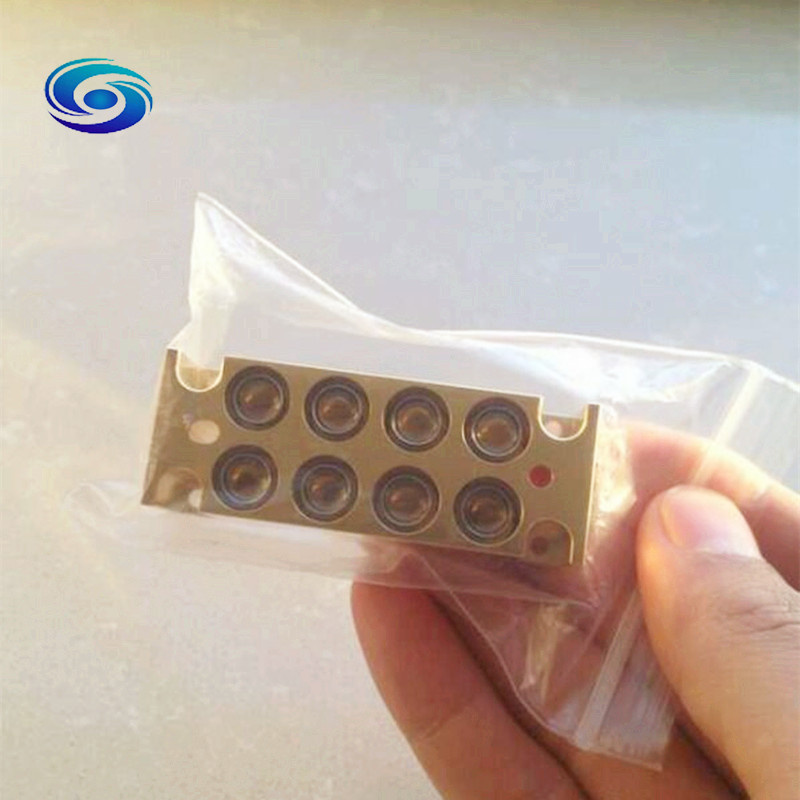

1. Nichia high power multiple laser diode (LD) bank NUGM01T.
2. 8 Collimator beams
3. No outgas
4. High heat dissipation
5. High safety stucture for prevention of removing LDs
