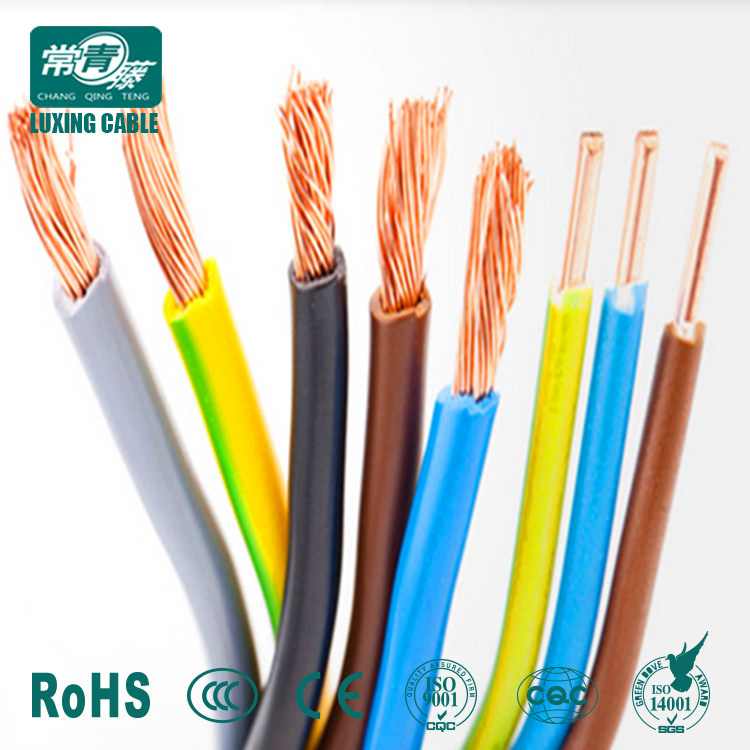

Ningbo Cable/2.5 mm Electrical Wire/Lightning Cable/Chinese Supplier
| Price: |
US $ 0.3-1/Meter |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
2.5 mm electrical wire |
| Rated Voltage: |
300/300,300/500,450/750,600/1000V |
| Standard: |
IEC, BS, VDE, GB/T,HD,Is |
| Normal Sectional Area: |
1.5-800mm2 |
| Conductor Tpye: |
Solid, Stranded,Flexible Copper Conductor |
| Colors: |
Red,Yellow,Blue,Green,Yellow/Green, Black... |
| MOQ: |
100m,500m,1000m for Different Size |
| Armoured: |
Steel Tape Armoured,Steel Wire Armoured |
| Braided Screen: |
Copper Wire, Tinned Copper Wire,Copper Tape |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Application: |
Household Appliances/Lightning Cable |
| Brand: |
Luxing Cable Wire |
Product Description
Why Choose luxing cables?

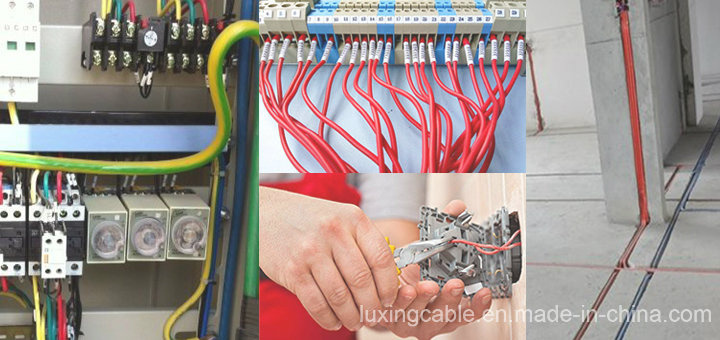

Ningbo cable/2.5 mm electrical wire/lightning cable/chinese supplierApplication: Industrial & house wiring.
These cables are intended for drawing into trunking and fixed, protected conduit.
They may also be used inside installations such as lighting fittings, appliances, switchgear and controlgear,
which are to be used in normal temperature zones.
Standard:BS 6004,IEC60227
Voltage rating:450/750V
When installed in an earthed metal enclosure, cables aresuitable for voltages up to 1000V a.c. or up to 750V to earth d.c.
Maximum conductor temperature:70°C
Maximum conductor temperature during short Circuit:160°c
Cable 20°C water into 1h,infliction 2500V volage 5min,insulated to do not roke throuth.
Technical specification | Flexible copper conductor |
Harmonized code designations: H07V-K
Construction:
Conductor - class5 copper,flexible
Insulation - PVC type TI1.
Identification: Green/yellow, blue or other colors
|
Nominal cross-sectional area of conductor
mm2 | Class of conductor | Radial thickness of insulation
mm | Mean overall diameter | Minimum insulation resistance at70®C
MΩ.km |
Lower limit
mm | Upper limit
mm |
1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
| 5
5
5
5
5
5
5
5
5
5
5
5
5
5
5 | 0.7
0.8
0.8
0.8
1.0
1.0
1.2
1.2
1.4
1.4
1.6
1.6
1.8
2.0
2.2
| 2.8
3.4
3.9
4.4
5.7
6.7
8.4
9.7
11.5
13.2
15.1
16.7
18.6
20.6
23.5
| 3.4
4.1
4.8
5.3
6.8
8.1
10.2
11.7
13.9
16.0
18.2
20.2
22.5
24.9
28.4 | 0.010
0.0095
0.0078
0.0068
0.0065
0.0053
0.0050
0.0043
0.0042
0.0036
0.0036
0.0032
0.0032
0.0032
0.0031 |
| Flexible copper conductor |
Harmonized code designations: H07V-K
Construction:
Conductor - class5 copper,flexible
Insulation - PVC type TI1.
Identification: Green/yellow, blue or other colors
|
Nominal cross-sectional area of conductor
mm2 | Class of conductor | Radial thickness of insulation
mm | Mean overall diameter | Minimum insulation resistance at70®C
MΩ.km |
Lower limit
mm | Upper limit
mm |
1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
| 5
5
5
5
5
5
5
5
5
5
5
5
5
5
5 | 0.7
0.8
0.8
0.8
1.0
1.0
1.2
1.2
1.4
1.4
1.6
1.6
1.8
2.0
2.2
| 2.8
3.4
3.9
4.4
5.7
6.7
8.4
9.7
11.5
13.2
15.1
16.7
18.6
20.6
23.5
| 3.4
4.1
4.8
5.3
6.8
8.1
10.2
11.7
13.9
16.0
18.2
20.2
22.5
24.9
28.4 | 0.010
0.0095
0.0078
0.0068
0.0065
0.0053
0.0050
0.0043
0.0042
0.0036
0.0036
0.0032
0.0032
0.0032
0.0031 |

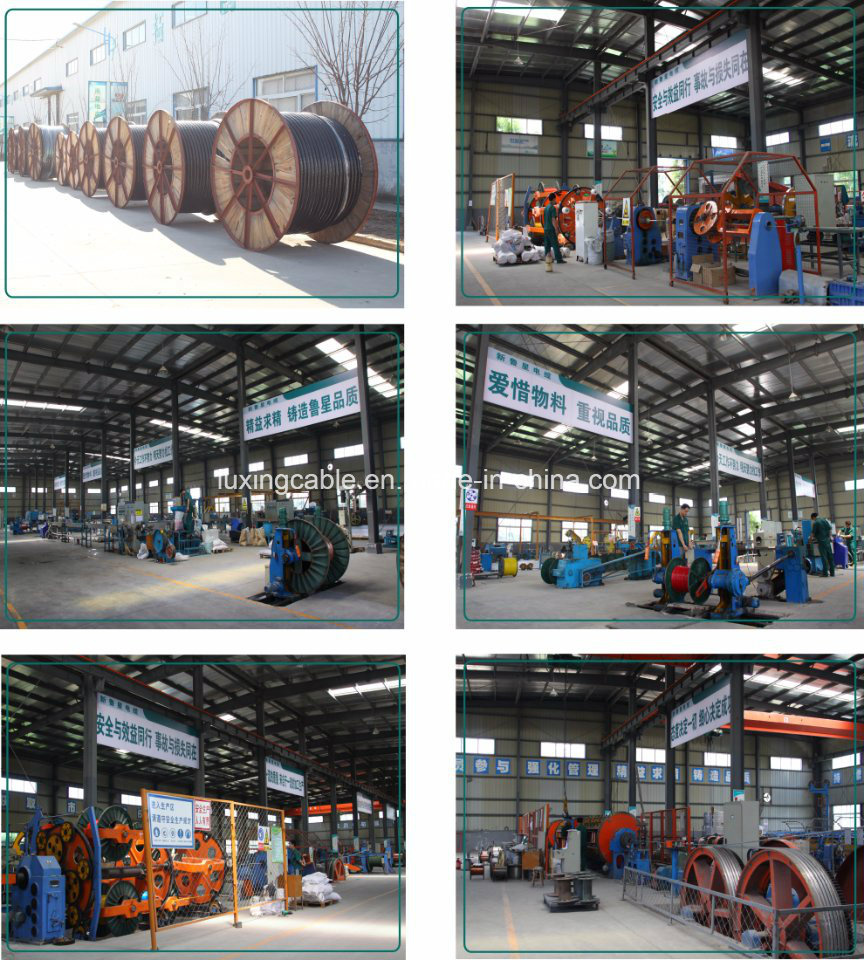

Welcome to our factory!
Cooperation Partners
1) About Luxing Cable Factory:
-Shandong New Luxing Cable Co., Ltd established in the year of 1999.
-The headquarter is located in Jinan City, the capital of Shandong province, China.
-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.
-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.
-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.
2)Why Choose Luxing Cable Factory?
-Luxing cable, the designated supplier of China's national grid construction.
-We provid high-quality cables for our clients for more than 18 years.
-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.
-Serve you any time.
3)The Product of Luxing Cable Factory
-300/500V 450/750V electrical wire
-600/1000V PVC insulated cable
-600/1000V XLPE insulated cable
-1.8/3KV to 26/35KV power cable
-Armored underground cable
-Control cable and instrumentation cables
-ABC cable
-AAC conductor
-AAAC conductor
-ACSR conductor
-OPGW
-Rubber cable
4)Product application
-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.
-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.
5)Production Market
-Supply power cables & electrical wire to
South America(Brazil...),
East Asia(Korea...),
Africa(Uganda, South Africa, Zimbabwe...),
Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),
Europe(Czech Republic...) to global market.
-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.
6)Our service
-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.
-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
