Nmea 2000 M12 5pin Male Panel Mount Socket Plastic Screw Waterproof Connector with Wires
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
N2K-MC05P1LSG3AP34 |
| Standard: |
Nmea 2000 |
| Connection Type: |
Panel Mount, Front Fastened |
| Cable Length: |
Base on Customer Request |
Product Description

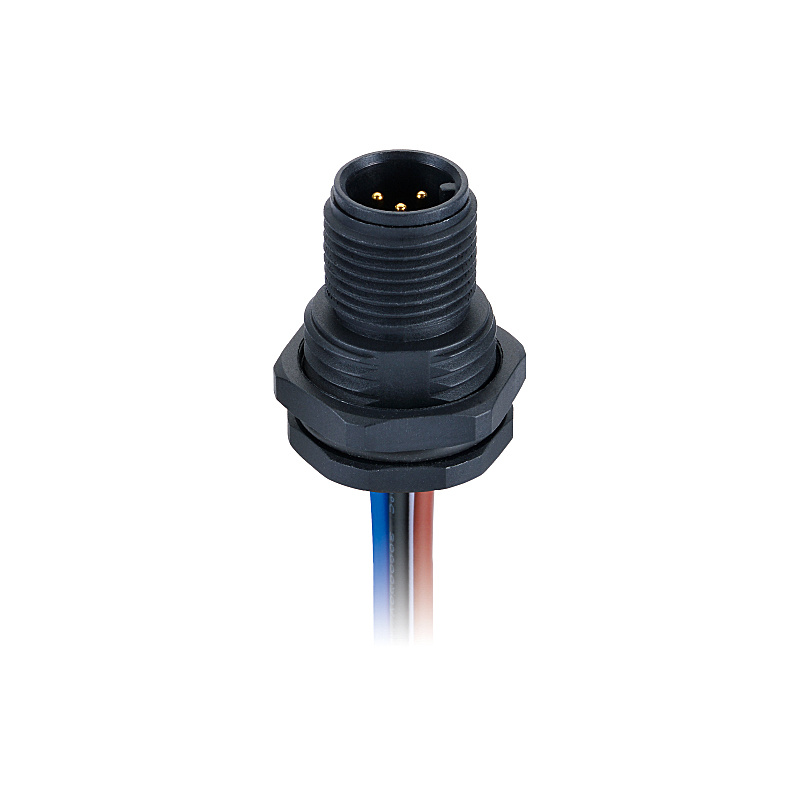

NMEA 2000 M12 5pin male panel mount socket plastic screw waterproof connector with wires

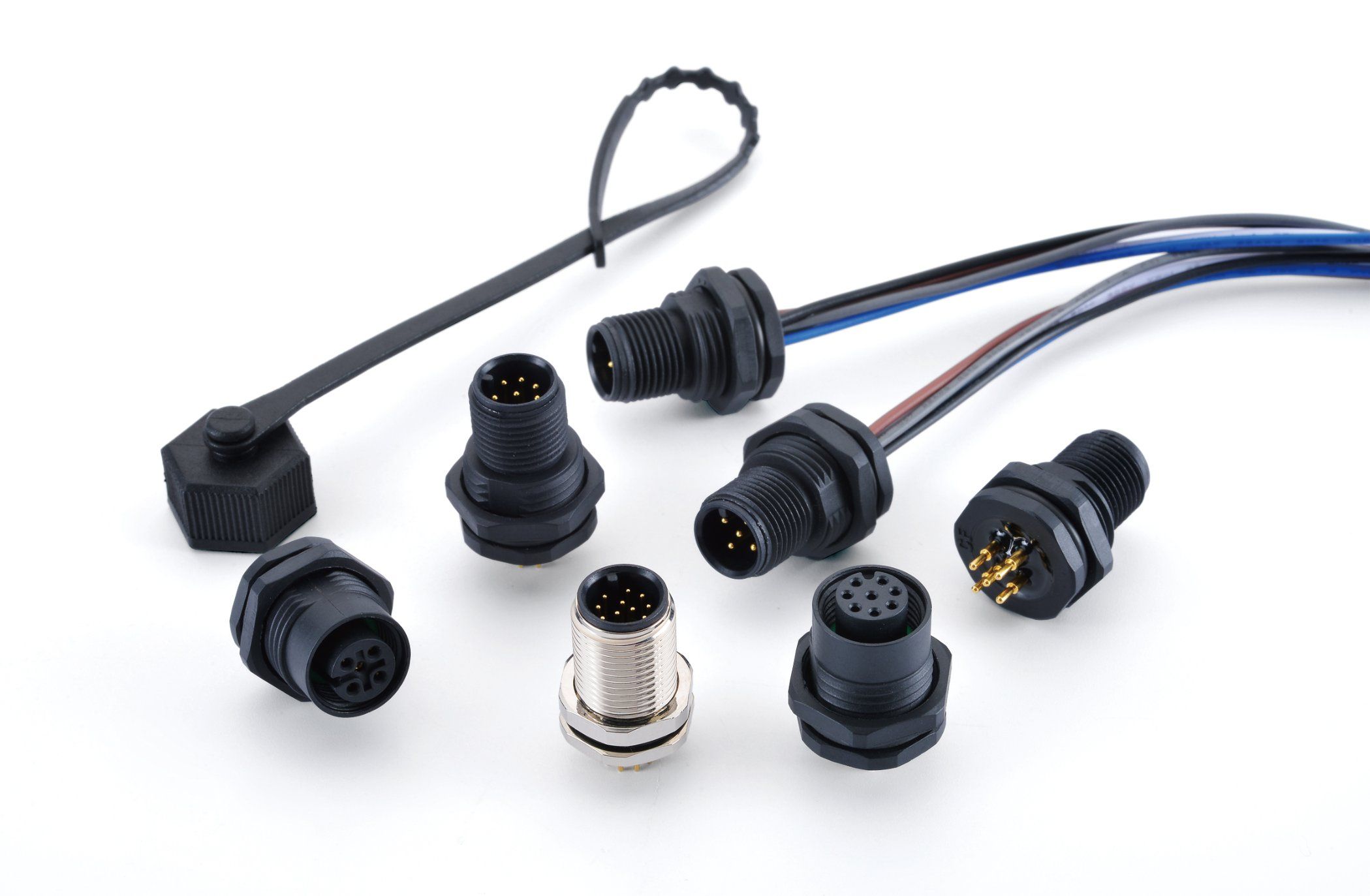

1.Descriptions CABLEFORCE offers a complete line of M12 panel mount receptacle connector solutions for enclosure, panel and PCB applications. These M12 connectors are offered in both male and female versions and are rated to IP67. These connectors are designed for both front mounting and rear mounting with both metal and plastic housing.
2.Electrical and mechanical dataPart No.: N2K-MC05P1LSG3AP34
Number of contacts: 5pin
Cable jacket material: by Custom
Orientation: Straight
Wire gauge: 22AWG/0.34mm2
Insert/ Housing: TPU
Overmold/ Shell: NYLON66 + GF
Rated current: 4 A
Rated voltage: 60V
Connector contacts: Brass with gold plated
Ambient temperature: -25°C ~ + 90°C
Insulation resistance: ≥100 MΩ
Sealing: O-ring
Contacts resistance: ≤ 5 mΩ
Shielding: Non-Shielded
Wire Termination: Soldering
IP rating: IP673.ApplicationsIEC 61076-2-101 standard sensor connectors with M12 thread locking mechanism for factory automation, process control, industrial instrumentation, and commercial electronics, such as sensors, encoders, motor, light curtain/grid, switches and other input and output devices in industrial machinery, and extensive used in the power supply and signal transmission for the fieldbus systems DeviceNet / CANopen / Profibus / Ethernet / NMEA 2000.4.Quality statement(1) CABLEFORCE's screws and nuts are CNC machined parts, plastic version available for option.
(2) The male contacts pin CABLEFORCE used are machined solid pin.
(3) The female contacts socket CABLEFORCE use phosphor bronze material, also machined solid pin.
(4) Our standard thickness of contacts plating layer is 3μ" gold, we guaranteed 48hrs salt spray test.
(5) Temperature Range: Dynamic -25 ~ 80°C, Static: -40~80°C.
(6) Ingress Protection: IP67 degree and IP68 solution based on customer's specific requirement.
(7) CABLEFORCE's components and materials are RoHS compliant.5.Product certificate

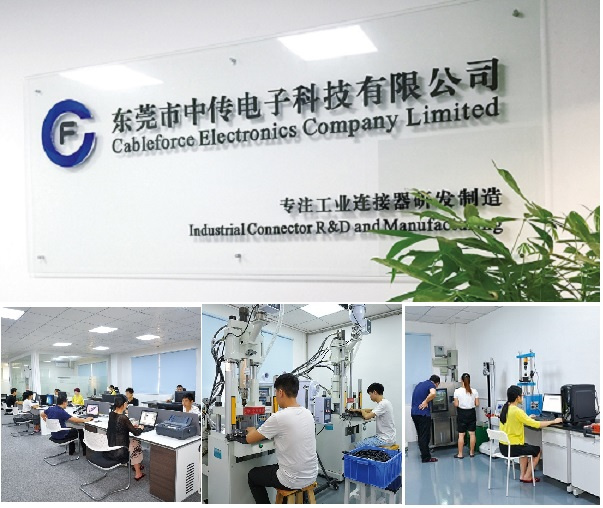

6.Company profileCableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
7.Product packing(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery: 1~ 3 weeks
8.FAQ(1) Q:Are you a manufacturer or trading company?
A:We are a connector factory.
(2) Q: What is the necessary information needed for quotation?
A:The series(M5,M8,M12,7/8"), coding, male or female, pin number, cable length etc.
(3) Q:What does Cableforce can provide for the product' certification?
A: IP67, CE and RoHS.
(4) Q:Can you provide samples?
A:Of course can be provided.
(5) Q:Sample lead time?
A:2-4 workdays
(6) Q: Volume order lead time?
A:3-10 workdays
(7) Q: How do you ship the finished product?
A:we can contact the shipping company or your shipping agent.The formal shipping way:DHL,FEDEX,UPS,TNT
Company Profile
Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
Business
CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.
Products range
Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;
Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;
NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;
I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
